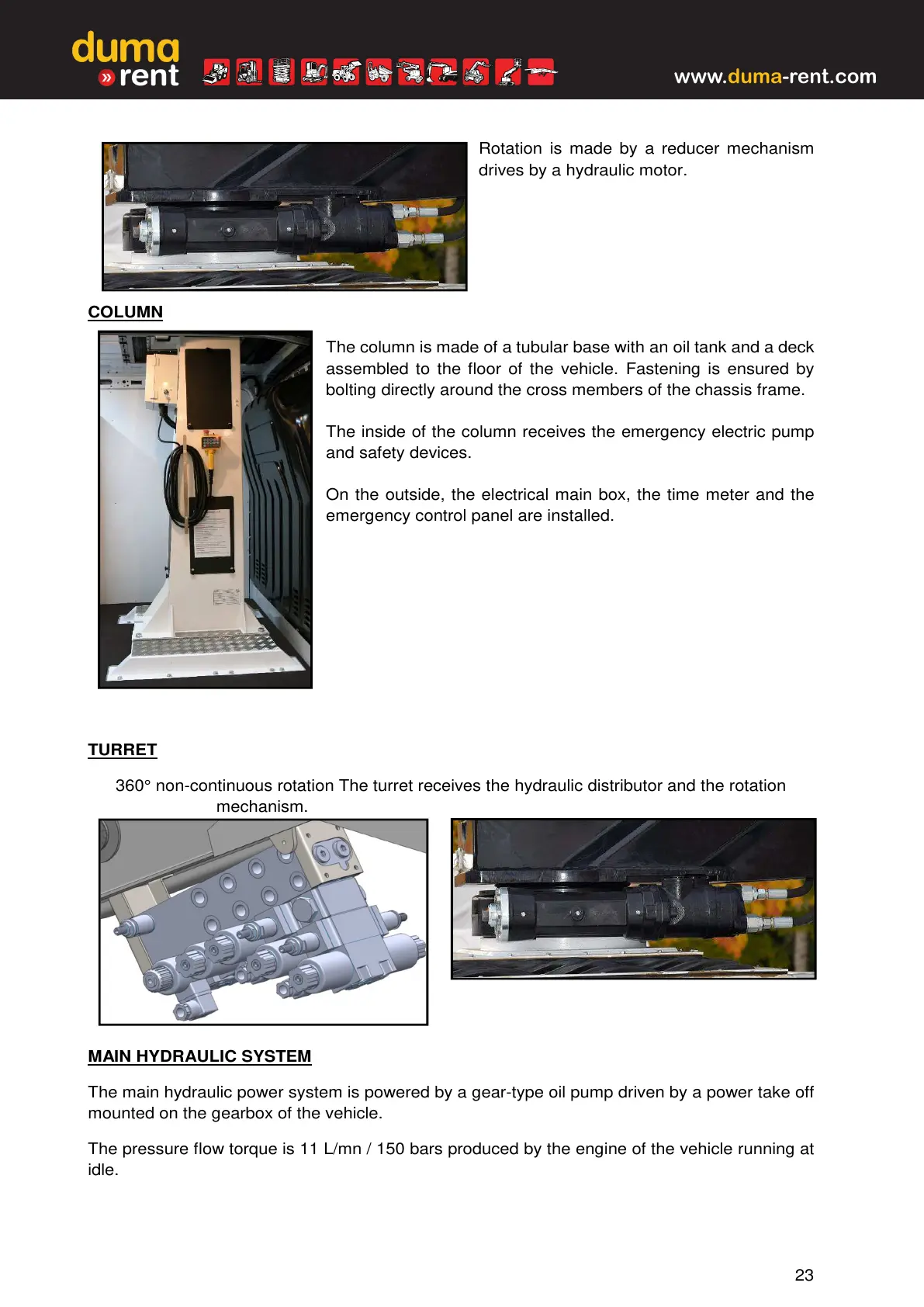

Rotation is made by a reducer mechanism
drives by a hydraulic motor.
COLUMN
The column is made of a tubular base with an oil tank and a deck
assembled to the floor of the vehicle. Fastening is ensured by
bolting directly around the cross members of the chassis frame.
The inside of the column receives the emergency electric pump
and safety devices.
On the outside, the electrical main box, the time meter and the
emergency control panel are installed.
TURRET
360° non-continuous rotation The turret receives the hydraulic distributor and the rotation
mechanism.
MAIN HYDRAULIC SYSTEM
The main hydraulic power system is powered by a gear-type oil pump driven by a power take off
mounted on the gearbox of the vehicle.
The pressure flow torque is 11 L/mn / 150 bars produced by the engine of the vehicle running at
idle.
