24

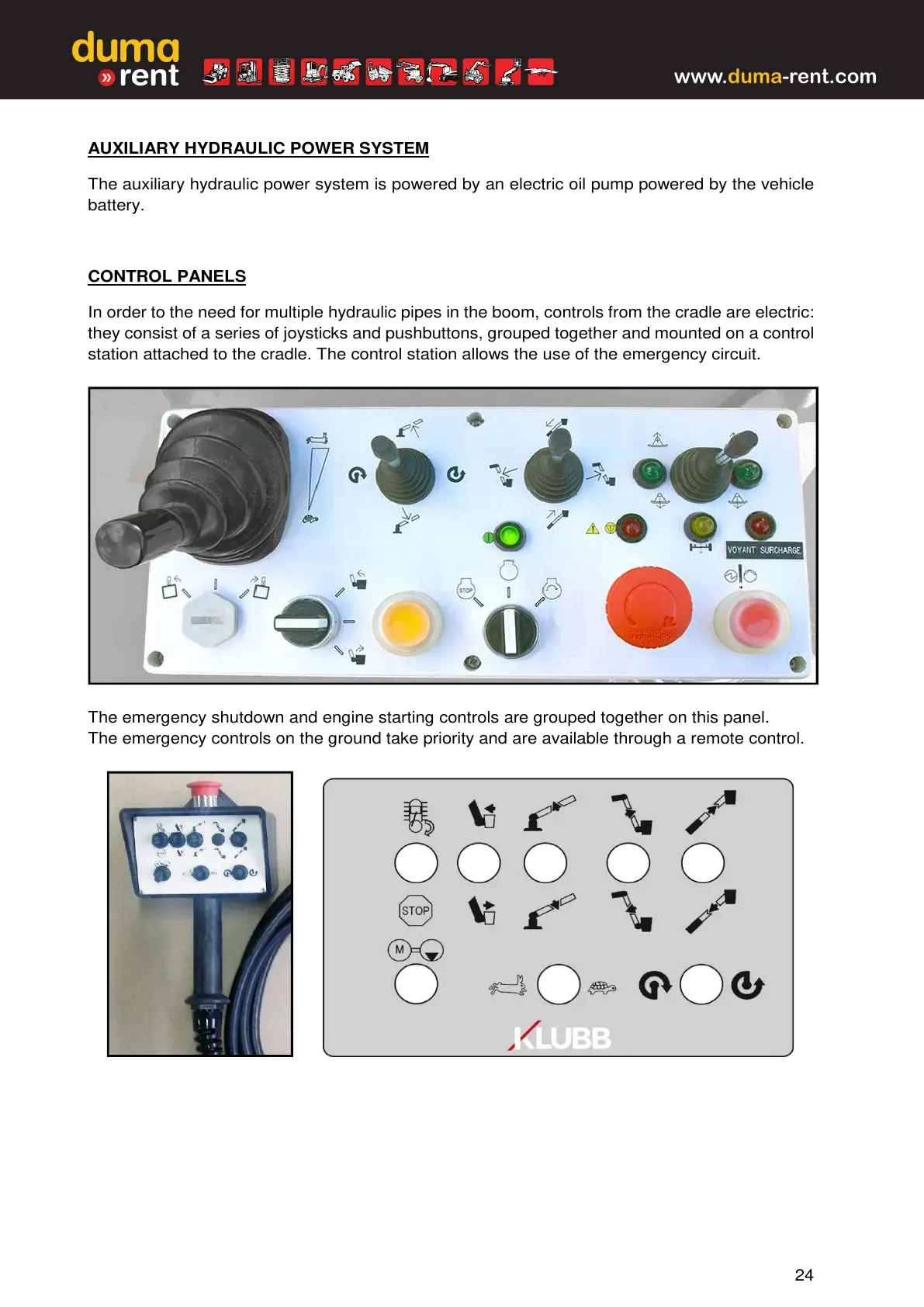

AUXILIARY HYDRAULIC POWER SYSTEM
The auxiliary hydraulic power system is powered by an electric oil pump powered by the vehicle
battery.
CONTROL PANELS
In order to the need for multiple hydraulic pipes in the boom, controls from the cradle are electric:
they consist of a series of joysticks and pushbuttons, grouped together and mounted on a control
station attached to the cradle. The control station allows the use of the emergency circuit.
The emergency shutdown and engine starting controls are grouped together on this panel.
The emergency controls on the ground take priority and are available through a remote control.
