A
Speed selector: This control sets the speed of all the elevator
movements.
Select the movement first, then the speed
To stop, release the speed lever, then the movement joystick.
G Elevator vehicle engine start/stop control
B
Up/Down: Up/Down movement of the main boom.
Left/Right: Turret rotation.
H Emergency shutdown: Emergency shutdown (turn to reset)
C
Up/Down: Extension/Retraction of the telescopic boom
Left/Right: Extension/retraction of fly boom (pendular boom)
I
Emergency pump: Hold the movement with this button. Allows
maneuvering running on vehicle batteries.
WARNING: The emergency pump must never be used more
than 30 seconds continuously.
D
Left/right up: Outrigger retraction
Left/right down: Outrigger extension
J
J1 (green): Correct operation indicator light
J2 (red):
Fault indicator light (barrier open, etc.)
E Working platform tilting (bucket)
K Outrigger extension indicator
F
Outrigger validation: Hold down while maneuvering the
outriggers
L Overload indicator

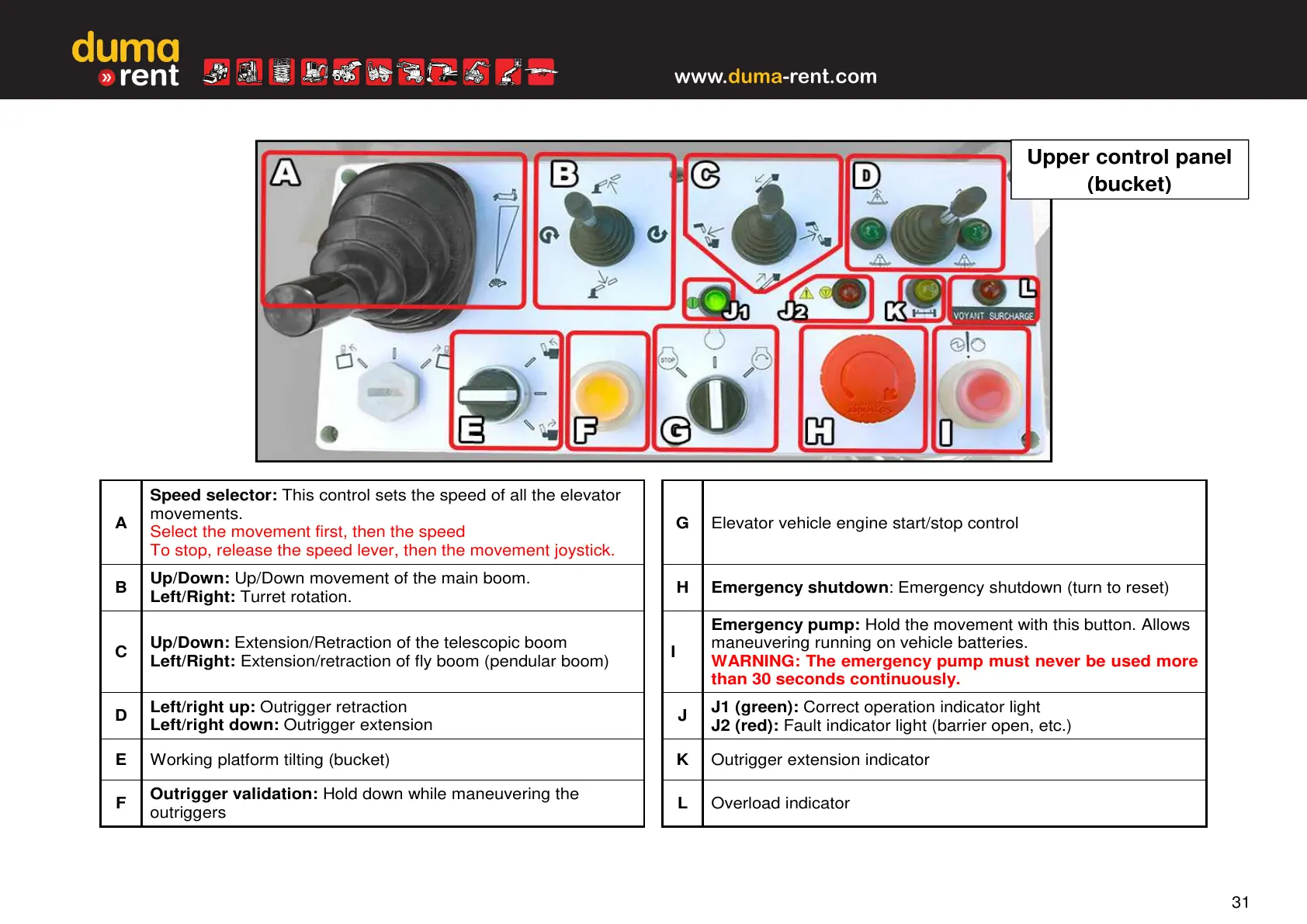

Upper control panel
(bucket)
