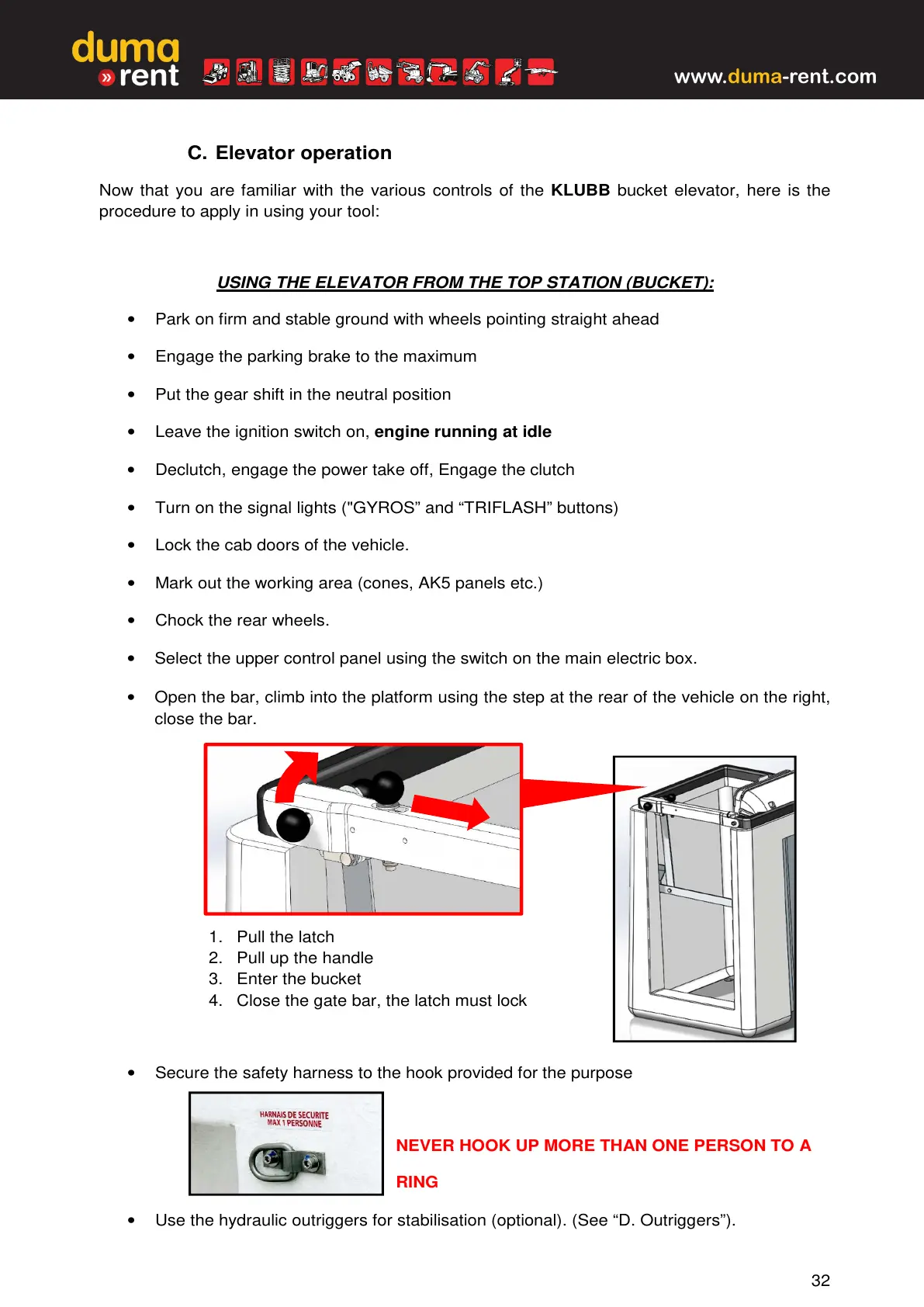

C. Elevator operation
Now that you are familiar with the various controls of the KLUBB bucket elevator, here is the
procedure to apply in using your tool:
USING THE ELEVATOR FROM THE TOP STATION (BUCKET):
• Park on firm and stable ground with wheels pointing straight ahead
• Engage the parking brake to the maximum
• Put the gear shift in the neutral position
• Leave the ignition switch on, engine running at idle
• Declutch, engage the power take off, Engage the clutch
• Turn on the signal lights ("GYROS” and “TRIFLASH” buttons)
• Lock the cab doors of the vehicle.
• Mark out the working area (cones, AK5 panels etc.)
• Chock the rear wheels.
• Select the upper control panel using the switch on the main electric box.
• Open the bar, climb into the platform using the step at the rear of the vehicle on the right,
close the bar.
1. Pull the latch
2. Pull up the handle
3. Enter the bucket
4. Close the gate bar, the latch must lock
• Secure the safety harness to the hook provided for the purpose
NEVER HOOK UP MORE THAN ONE PERSON TO A
RING
• Use the hydraulic outriggers for stabilisation (optional). (See “D. Outriggers”).
