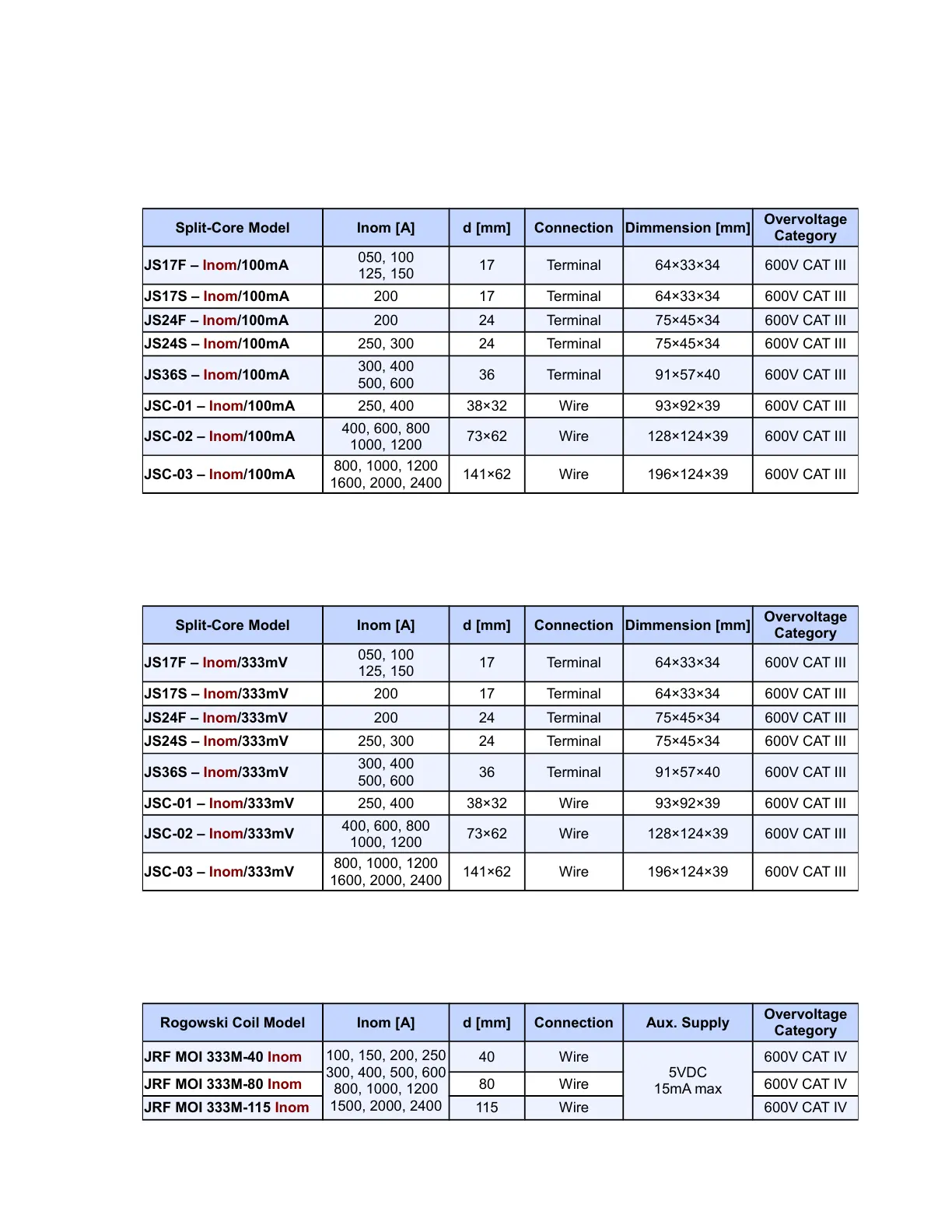

Table 1: Selected parameters for option X/100mA for indirect measurement with special types of supplied
100mA CTs. See chapter 2.2.3.
Split-Core Model Inom [A] d [mm] Connection Dimmension [mm]
Overvoltage
Category
JS17F – Inom/100mA
050, 100
125, 150
17 Terminal 64×33×34 600V CAT III
JS17S – Inom/100mA 200 17 Terminal 64×33×34 600V CAT III
JS24F – Inom/100mA 200 24 Terminal 75×45×34 600V CAT III
JS24S – Inom/100mA 250, 300 24 Terminal 75×45×34 600V CAT III
JS36S – Inom/100mA
300, 400
500, 600
36 Terminal 91×57×40 600V CAT III
JSC-01 – Inom/100mA 250, 400 38×32 Wire 93×92×39 600V CAT III
JSC-02 – Inom/100mA
400, 600, 800
1000, 1200
73×62 Wire 128×124×39 600V CAT III
JSC-03 – Inom/100mA
800, 1000, 1200
1600, 2000, 2400
141×62 Wire 196×124×39 600V CAT III
Table 2: Selected parameters for option X/333 mV for indirect measurement with special types of supplied
CTs with nominal output voltage 0.333 V. See chapter 2.2.3.
Split-Core Model Inom [A] d [mm] Connection Dimmension [mm]
Overvoltage
Category
JS17F – Inom/333mV
050, 100
125, 150
17 Terminal 64×33×34 600V CAT III
JS17S – Inom/333mV 200 17 Terminal 64×33×34 600V CAT III
JS24F – Inom/333mV 200 24 Terminal 75×45×34 600V CAT III
JS24S – Inom/333mV 250, 300 24 Terminal 75×45×34 600V CAT III
JS36S – Inom/333mV
300, 400
500, 600
36 Terminal 91×57×40 600V CAT III
JSC-01 – Inom/333mV 250, 400 38×32 Wire 93×92×39 600V CAT III
JSC-02 – Inom/333mV
400, 600, 800
1000, 1200
73×62 Wire 128×124×39 600V CAT III
JSC-03 – Inom/333mV
800, 1000, 1200
1600, 2000, 2400
141×62 Wire 196×124×39 600V CAT III
Table 3: Parameters for option X/333 mV for indirect measurement with special types of supplied flexible
probes (RCT) with nominal output voltage 0.333 V. See chapter 2.2.3.
Rogowski Coil Model Inom [A] d [mm] Connection Aux. Supply
Overvoltage
Category
JRF MOI 333M-40 Inom
100, 150, 200, 250
300, 400, 500, 600
800, 1000, 1200
1500, 2000, 2400
40 Wire
5VDC
15mA max
600V CAT IV
JRF MOI 333M-80 Inom 80 Wire 600V CAT IV
JRF MOI 333M-115 Inom 115 Wire 600V CAT IV
