2）Elongate the heat pipe and snap the flat end of the heat pipe joints into the elliptical hole
of the window sealing plate assembly (as shown in Figure 5 and Figure 6).
Notes: 1. the flat end of the heat pipe joints must be snapped into place.
2. The pipe cannot be distorted nor has substantial turning (greater than 45 °). Keep the
ventilation of the heat pipe unobstructed.

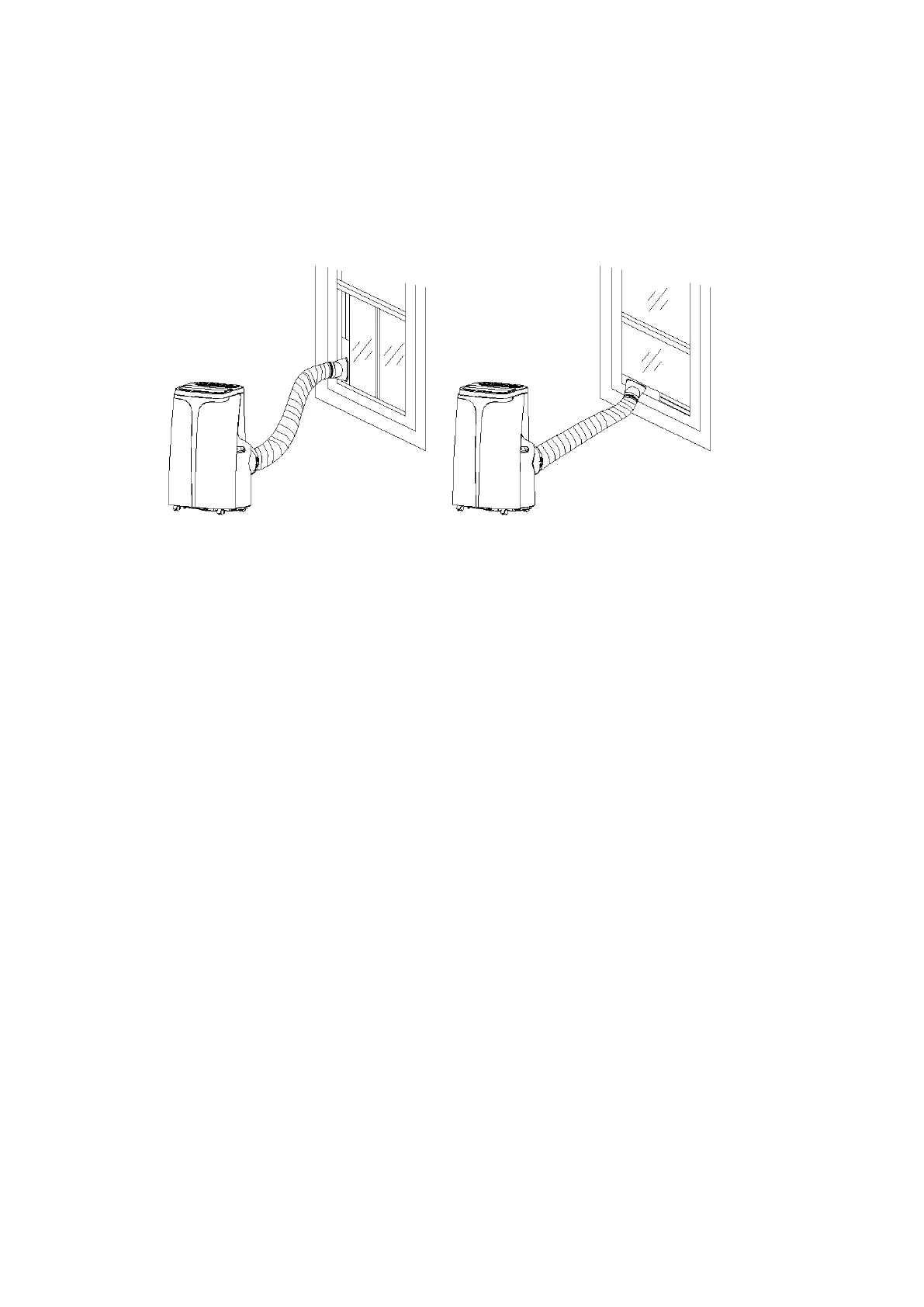

Figure 5 Figure 6
Important Notice
The length of the exhaust hose shall be (280~1,500mm)11 - 59 Inches, and this length
is based on the specifications of the air conditioning. Do not use extension tubes or replace it
with other different hoses, or this may cause a malfunction. Exhaust must be unobstructed;
otherwise, it may cause overheating.
