KMT RPM-8000-PRO User Manual

Version 2012-10 4 Technical Data are subject to change without notice!

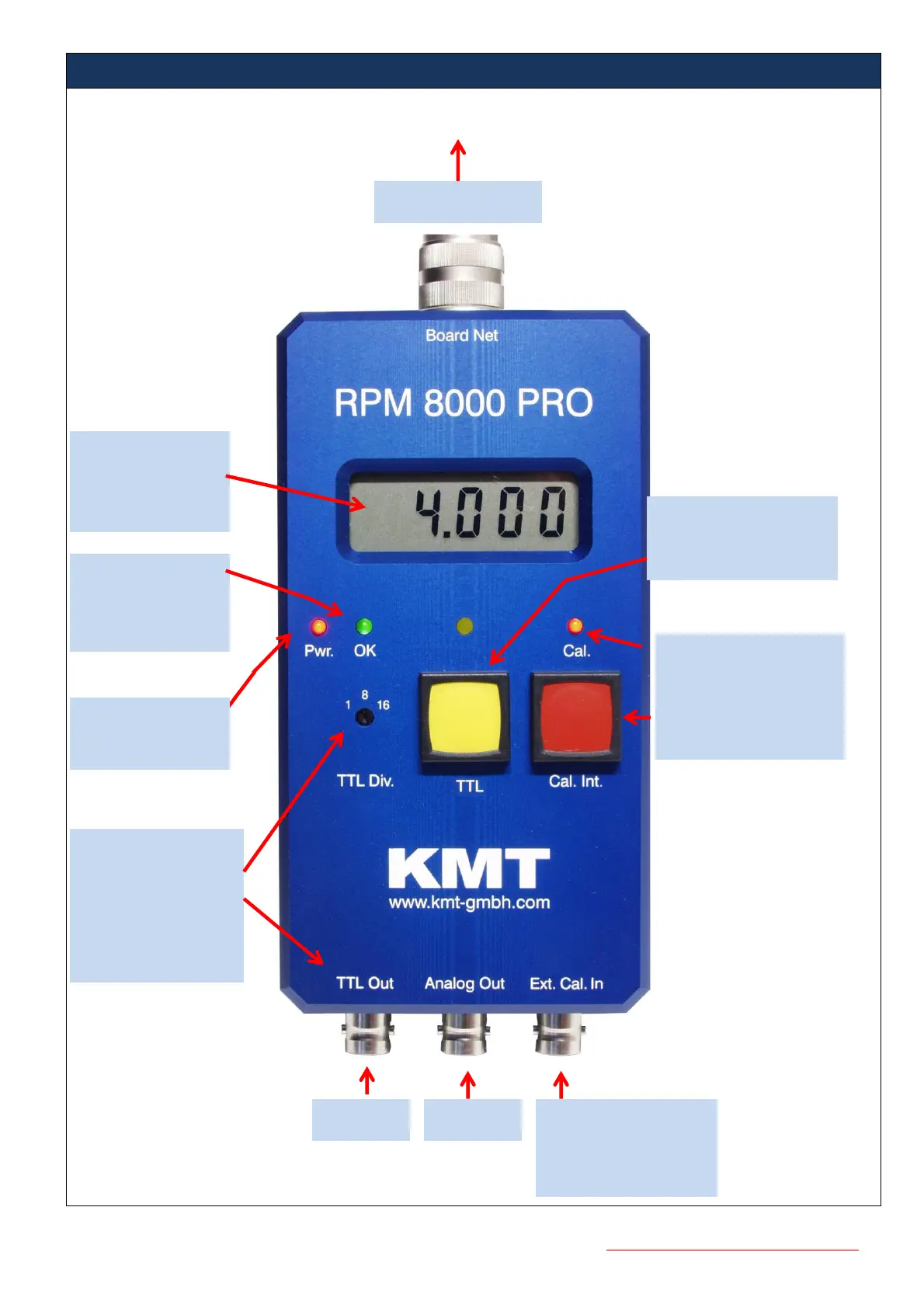

Functions and display:
Internal calibration
When the vehicle tachometer
registers a constant speed of
2000 rev/min, keep the Cal. Int.
button pressed until the red LED
stops flashing, and is
permanently illuminated
To battery or cigarette
lighter sockets - 12-42V
TTL button
Switches the screen to number
of pulses per revolution, as
long as the button is pressed.
TTL out (output)
Divider for digital output:
1:1 or 8:1 or 16:1
For example:
4000 Hz TTL at div. 1 position
500 Hz TTL at div. 8 position
250 Hz TTL at div. 16 position
SYNC OK LED
Lights up when
RPM8000Pro is
synchronized with the
engine speed.
Analog output
0-10V
Connection for LASER RPM
tachometer
Don't press the CAL button
during external calibration!!
(Self detection of EXT Cal
input!)
Dig. output
0-5V TTL
Power ON LED
Lights up when 12-42V is
applied to the cigarette
lighter.
LCD screen
Indicates the actual speed
or the number of pulses
per revolution is indicated
by pressing the yellow TTL
button

KMT RPM-8000-PRO Specifications

General

Brand	KMT
Model	RPM-8000-PRO
Category	Measuring Instruments
Language	English
