504G3 SERIES TRACTOR OPERATION MANUAL
93
Appendix 6 Mechanical couplings
6.1、Cle
vis Type
1. TECHNICAL DATA
1.1. MAKER
Knegt Quality Tractors Europe, Habraken 1207, 5507TB Veldhoven, Netherlands
1.2. TYPE
Tractor clevis mechanical coupling – non-automatic trailer coupling
504G3.35B.001(clevis type) according to directive 2009/144/EEC Annex Ⅵ as
amended by 2013/8/EU tractor coupling and was found comply in all respects
Type-approval number: CE: e11 XXXX
Technically permissible trailer mass: 7,0 t
Test load: 10.0 t
Technically permissible static vertical load: 1000kg
2. MOUNTING PRESCRIPTIONS

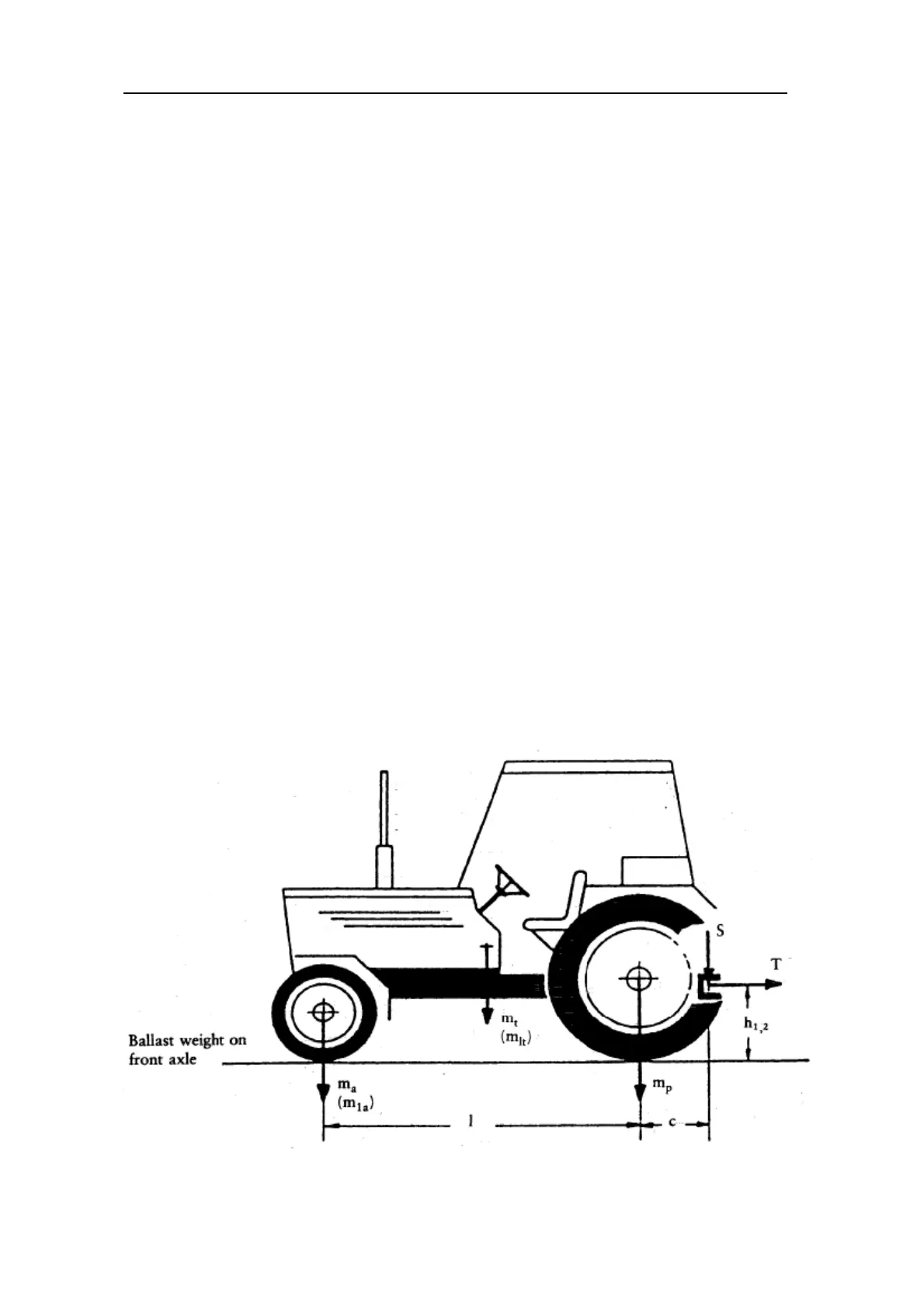

2.1. HEIGHT ABOVE THE GROUND OF THE COUPLING DEVICE (H)
See figure below:
To Next Page
