KNX GIRA Operating Instructions

Presence detector Mini

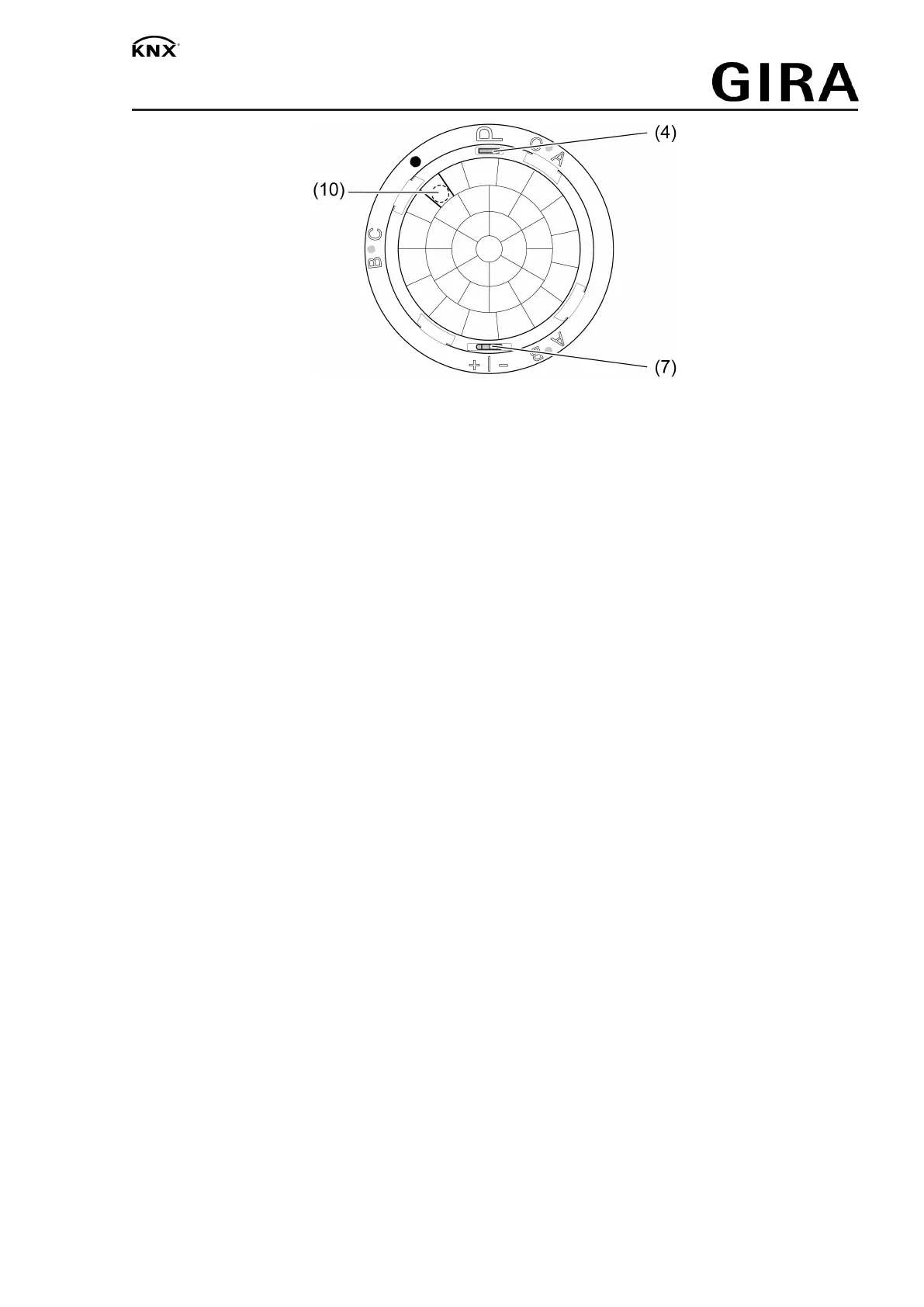

Figure2: Device components
(1) Presence detector
(2) Guide for friction springs
(3) Spring clamp
(4) Programming button, red
(5) Design ring
(6) Cover
(7) Sensitivity switch, blue
(8) Bus connection
(9) Cable fixation
(10) Brightness sensor
4 Function
Intended use
– Requirement-oriented control of lighting, room thermostats and other electrical consumers
in interior rooms
– Clamp mounting in suspended ceilings
– Ceiling mounting on fixed ceilings in flush-mounted box according to DIN 49073 or sur-
face-mounted housing (see accessories)
Product characteristics
– Integrated bus coupling unit
– 3 PIR sensors
– Detection field 360°
– Integrated brightness sensor
– Deployed as presence detector, motion detector, or for alert operation
– Output functions: Switching, staircase function, switching with forced position, value trans-
mitter, light scene extension, operating mode setting for room temperature controller
– Detection field extendible by parallel switching of several devices as main unit or exten-
sion unit
– Adjuster for manual adjustment of sensitivity
– Status LED: Flashes during motion detection; depending on programming in normal oper-
ation or only during the walking test mode
Additional characteristics of "Comfort" version:
Presence detector function:
– Detection of the smallest motions e.g. at a workplace for detecting the presence of per-
sons
2 / 13
32589822 10867613 25.02.2020

KNX GIRA Specifications

General

Protection Class	IP20
Ambient Temperature	-5 °C to +45 °C
Communication Protocol	KNX
Mounting	DIN Rail
Number of Channels	Depends on model
