M
N
L
K
N
M
ASSEMBLY INSTRUCTIONS
11
12.

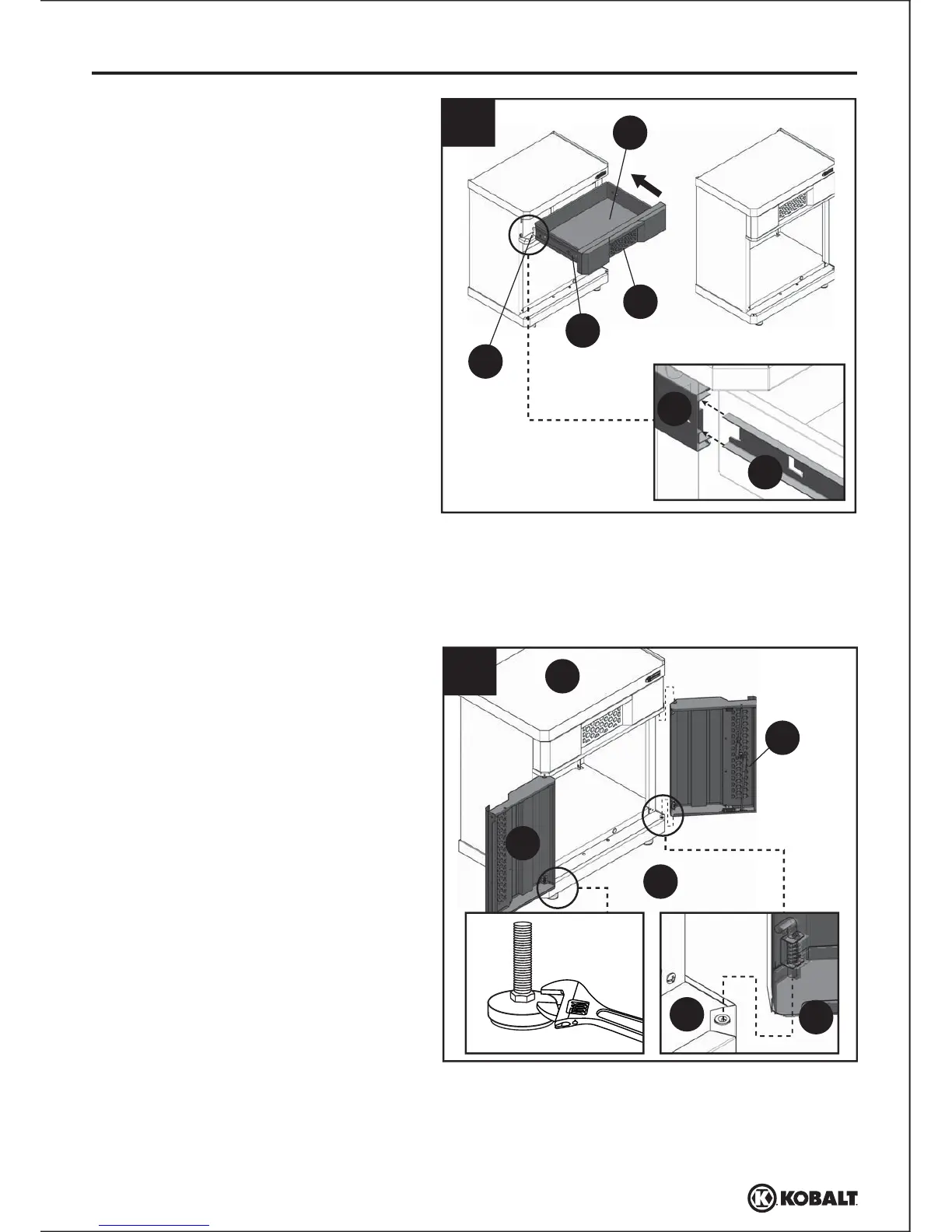

Lift and pull the L-shaped pivot pin on
the edge of the right door (I), aligning
the assembling hole of the base (E)
and top (D), then release. Repeat for
left door (H).
11.
Align the inside slide (N) of the drawer
(L) to the previously installed outside
slide (M), then push the drawer (L)
completely into the assembled unit.
Note: You will need to flip the latch in the
middle of drawer front (K) to close or
open the assembled drawer.
Note: Check and see if the top (D) is level.
If not level due to uneven floor, the two
doors will probably not be properly
aligned. In this case, use an adjustable
wrench (not included) to adjust the hex
nut until the top (D) is level.
10
Lowes.com
I
D
E
H
I
E
12
