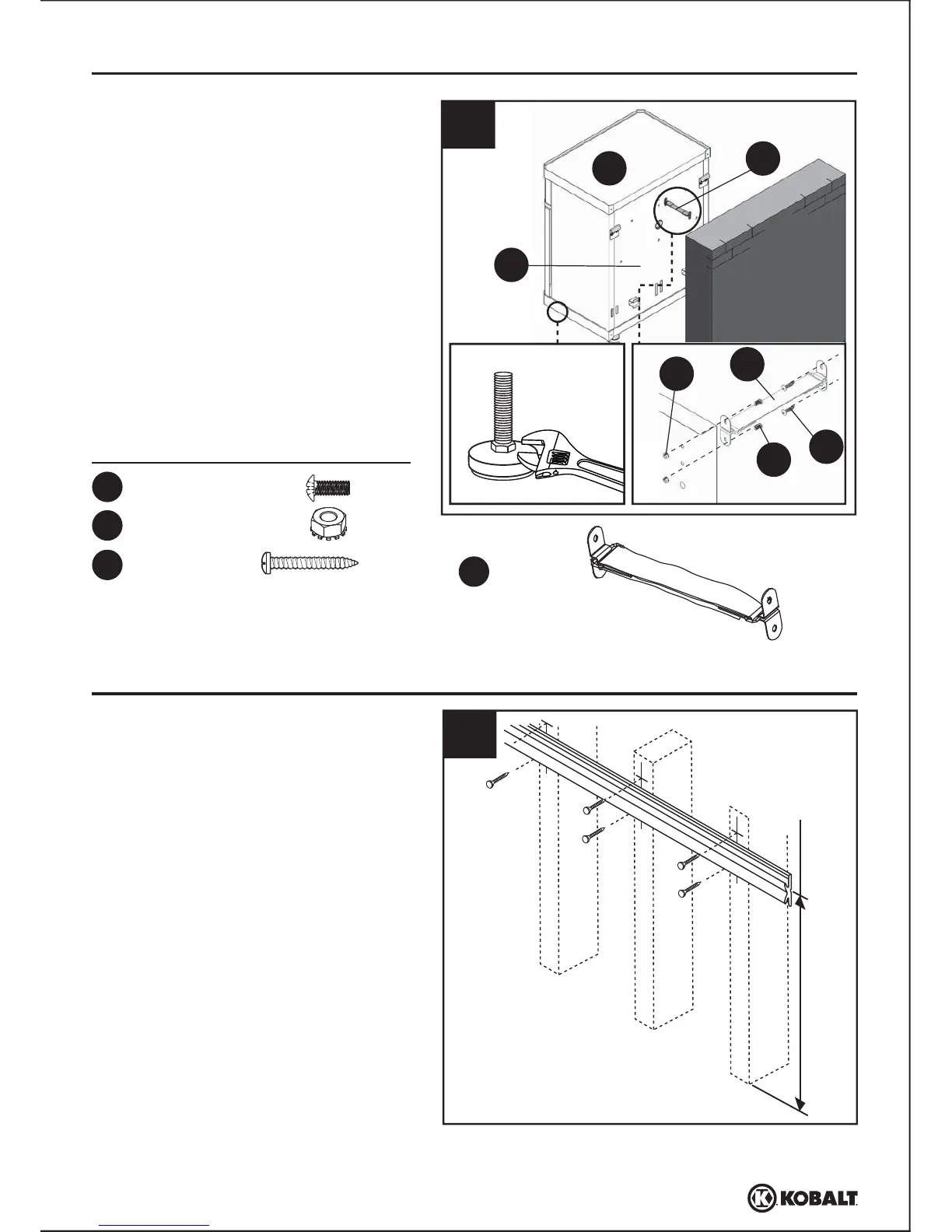

ASSEMBLY INSTRUCTIONS
EE
OPTIONAL K-RAIL MOUNTING INSTRUCTIONS
13
1
Hardware Used
A
D
EE
x 1
x 2
x 2
x 2
Wall strap
BB
#8-32 x 3/8 in. Bolt
CC
#8-32 Nut
DD
ST4 x 20 mm
Screw
1. Ensure wall studs are plumb and
square. Place the
K-Rail
®
(Item
#0103683, sold
separately) on the wall
studs at the desired location, with the
center of the
K-Rail
®
a minimum of
30-1/2 in. from the floor. Level the
K-Rail
®
and mark the location.
K-Rail
®
must be attached to a minimum of 3
wall studs. Attach the
K-Rail
®
to the
wall studs at the marked locations
using two wood screws (not provided)
per stud.
Minimum
30-1/2 in. from
the floor
13.
Screw one end of wall strap (EE) to
the upper side of back (A) with
#8-32 x 3/8 in. bolts (BB) and #8-32
nuts (CC). Secure the other end to the
wall with ST4 x 20 mm screws (DD).
DD
BB
CC
EE
Note: This cabinet should be anchored to
the wall using the wall strap (EE) to avoid
any potential danger from cabinet falling.
Check and see if the top (D) is level. If not
level due to uneven floor, the two doors
will probably not be properly aligned. In
this case, use an adjustable wrench (not
included) to adjust the hex nut until the
top (D) is level.
