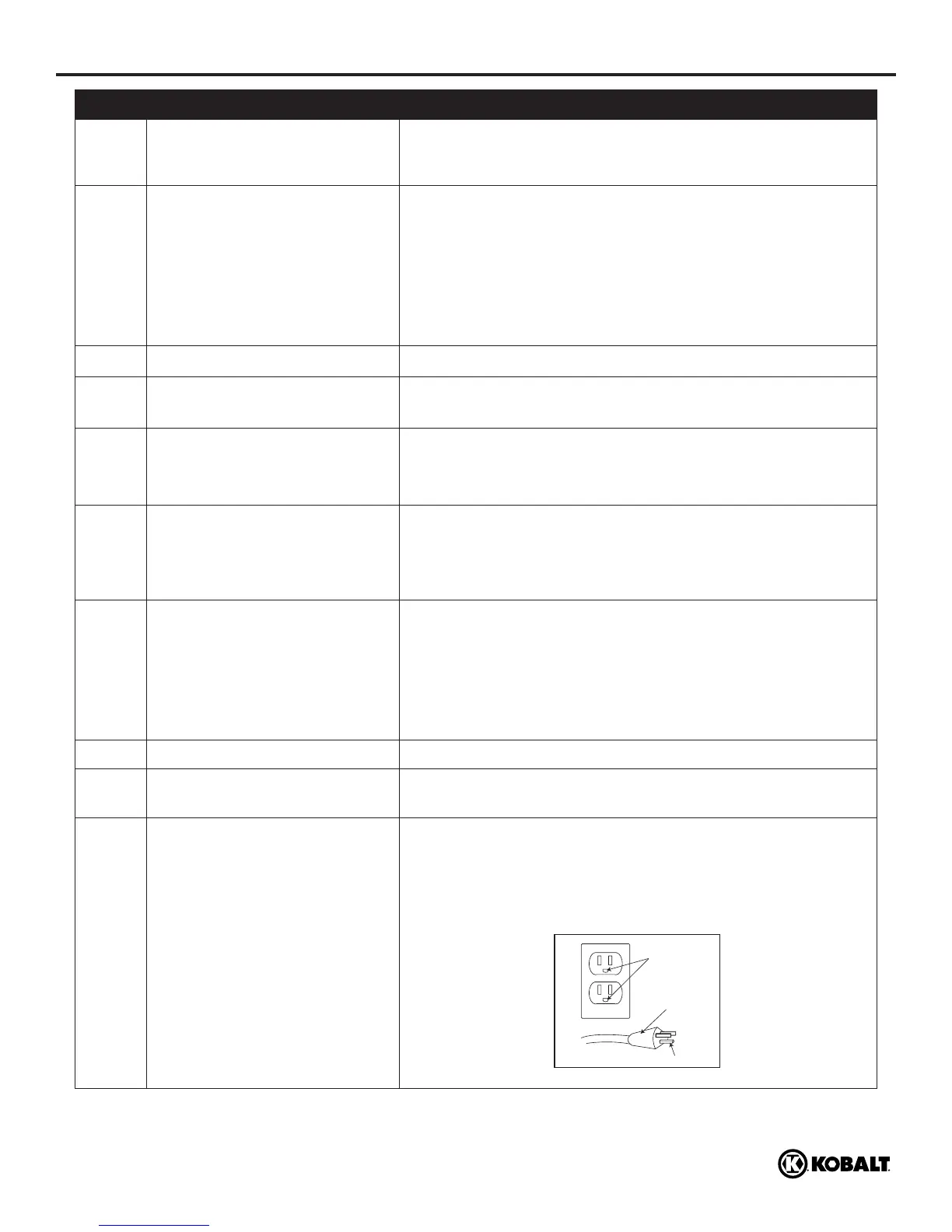

PART DESCRIPTION
PART PART NAME PART DESCRIPTION
A Electric Motor and Air
Compressor Pump
The motor is used to power the pump. The pump is
used to compress the air and discharge it into the tank
via the piston moving up and down in the cylinder.
B ON/OFF Switch This switch turns on the compressor and is operated
manually. When in the ON position, it allows the
compressor to start up or shut down automatically,
without warning, upon air demand. Always set this
switch to OFF when the compressor is not being used
and before unplugging the compressor.
C Air Line Outlet The outlet is used to connect the 1/4 in. NPT air hose.
D Regulated Pressure Gauge The gauge is used to measure the regulated outlet
pressure.
E Tank Pressure Gauge The gauge is used to measure the store air pressure
level of the tank. It is not adjustable by the operator, and
does not indicate line pressure.
F Air Pressure Regulator The regulator is used to adjust line pressure to the tool
you are using. Turn the knob clockwise to increase
pressure and counterclockwise to decrease pressure.
G Pressure Relief Valve The valve is used to prevent system failures by relieving
pressure from the system. When the pressure reaches
the preset level, the pressure switch will not shut down
the motor, it will automatically pop open or you can pull
the ring on the valve to open.
H Air Tank The tank is used to store the compressed air.
I Drain Valve The drain valve is used to remove moisture from the air
tank after the unit is shut off.
J Power Cord This product is for use on a nominal 120-volt circuit
and should be grounded. A cord with a grounding plug
must be used. Make sure the product is connected to
an outlet having the same conguration as the plug. No
adapter should be used with this product.
Grounded
outlet
Grounding Pin
Plug
