kobalttools.com
13
ELECTRICAL
WARNING
ASSEMBLY INSTRUCTIONS
WARNING
Keep the extension cord clear of the working area. Position the cord so that it will not get caught
on lumber, tools, or other obstructions while you are working with a power tool. Failure to do so can
result in serious personal injury.
Check extension cords before each use. If damaged replace immediately. Never use the product
with a damaged cord since touching the damaged area could cause electrical shock resulting in
serious injury.
Do not attempt to modify this product or create accessories not recommended for use with this
leading to possible serious personal injury.
Do not connect to power supply until assembly is complete and you are ready to mow. Failure to
comply could result in accidental starting and possible serious personal injury.
To prevent accidental starting that could cause serious personal injury, always disconnect from
power supply when assembling parts.
Never operate the mower without the proper safety devices in place and working. Never operate the
mower with damaged safety devices. Operation of this product with damaged or missing parts could
result in serious personal injury.

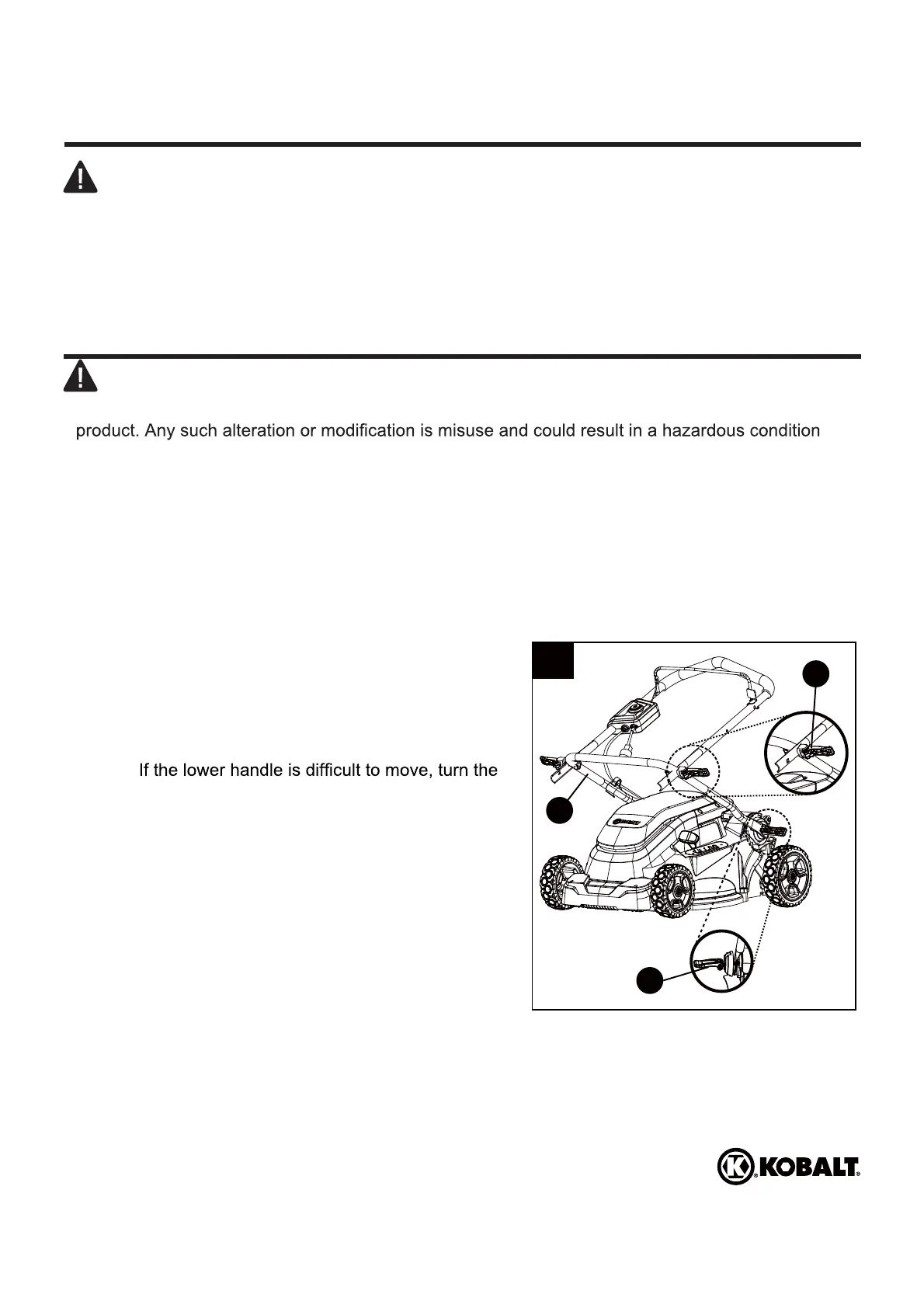

1. Unfolding and adjusting handle assembly
a. To raise handle assembly:
Open the lower handle locks (M).
Pull up and back on the lower handle (L) until it is
aligned with the slot between the cam locks (M) and
the mower housing.
Note:
lower cam locks (M) counterclockwise to free the
handle.
To secure the lower handle (L) in place, close the
lower handle locks (M).
Note: If the lower handle is loose or does not seat
completely in the slot, turn the lower cam locks (M)
clockwise to secure the handle.
Open the upper cam locks (G).
Pull up and back on the upper handle to raise it into
operating position. Make sure that the lower handle
is seated in the grooves at the bottom of the upper
handle.
To secure the upper handle in place, close the
upper cam locks (G).
Note: If the upper handle is loose or separated from
the lower handle, tighten the knobs on the upper
handle locks by turning them clockwise.
1a
L
G
M
