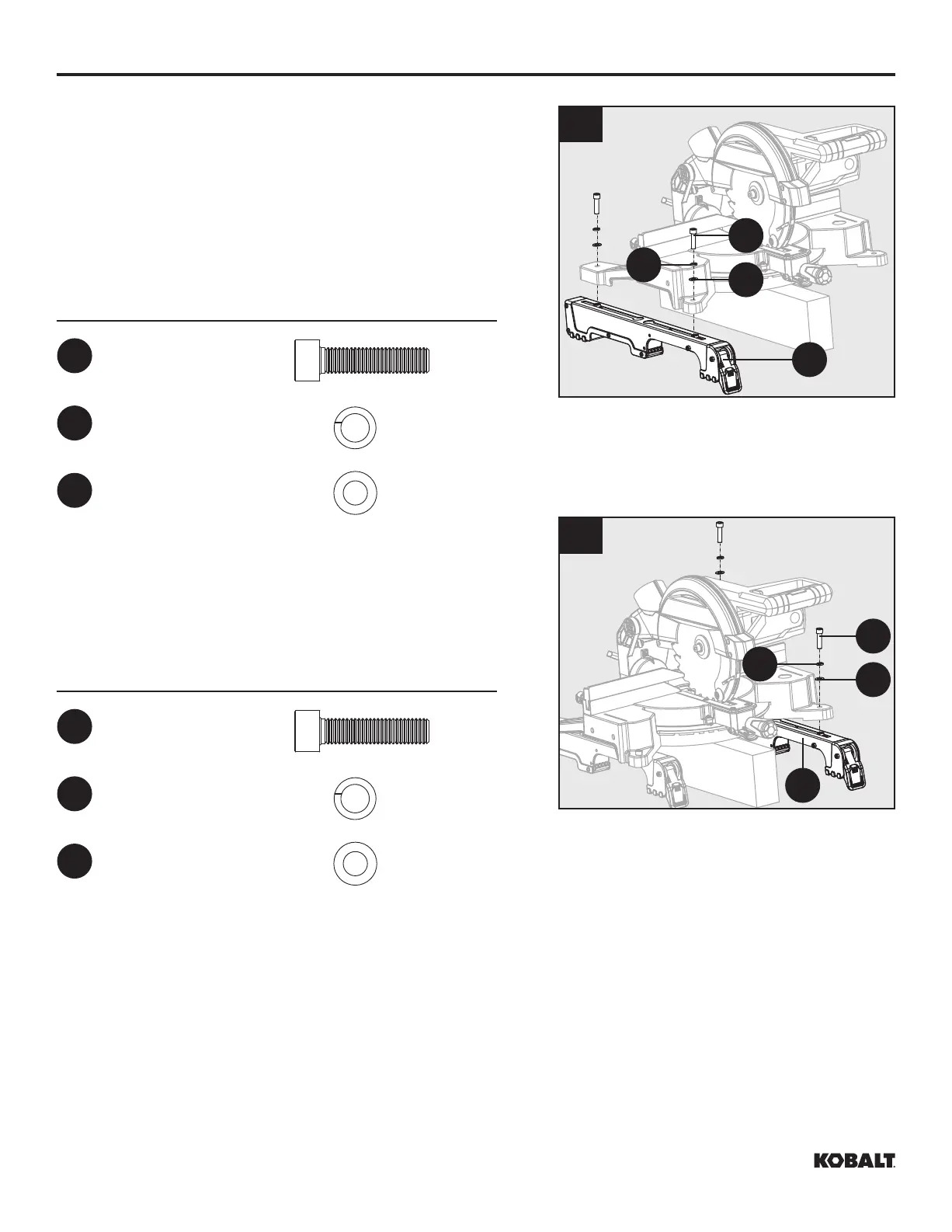

2. Place a saw mounting bracket underneath the raised
side of saw, aligning the mounting holes on the miter
saw base with the nut inside the top of the bracket.
Feed a hexagon bolt M6 x 55mm (BB) down through
a spring washer 6 (II), a flat washer 6 (JJ), into the
nut inside the top of the bracket and a mounting hole
in the saw. Secure in place.
Repeat through the other end of the same bracket.
Hardware Used
3. Place the second saw mounting bracket underneath
the other side of the saw, aligning the mounting holes
on the miter saw base with the nut inside the top of
bracket. Install hexagon bolts M6 x 55mm as previously
described.
Hardware Used
4. After making sure both brackets are parallel to each
other, tighten all four hexagon bolts M6 x 55mm with
5mm hex key to hold in position.
Hexagon bolt
M6 x 55mm
x 2
BB
Spring washer 6
x 2
II
Flat washer 6
x 2
JJ
Hexagon bolt
M6 x 55mm
x 2
BB
Spring washer 6
x 2
II
Flat washer 6
x 2
JJ
ASSEMBLY INSTRUCTIONS
