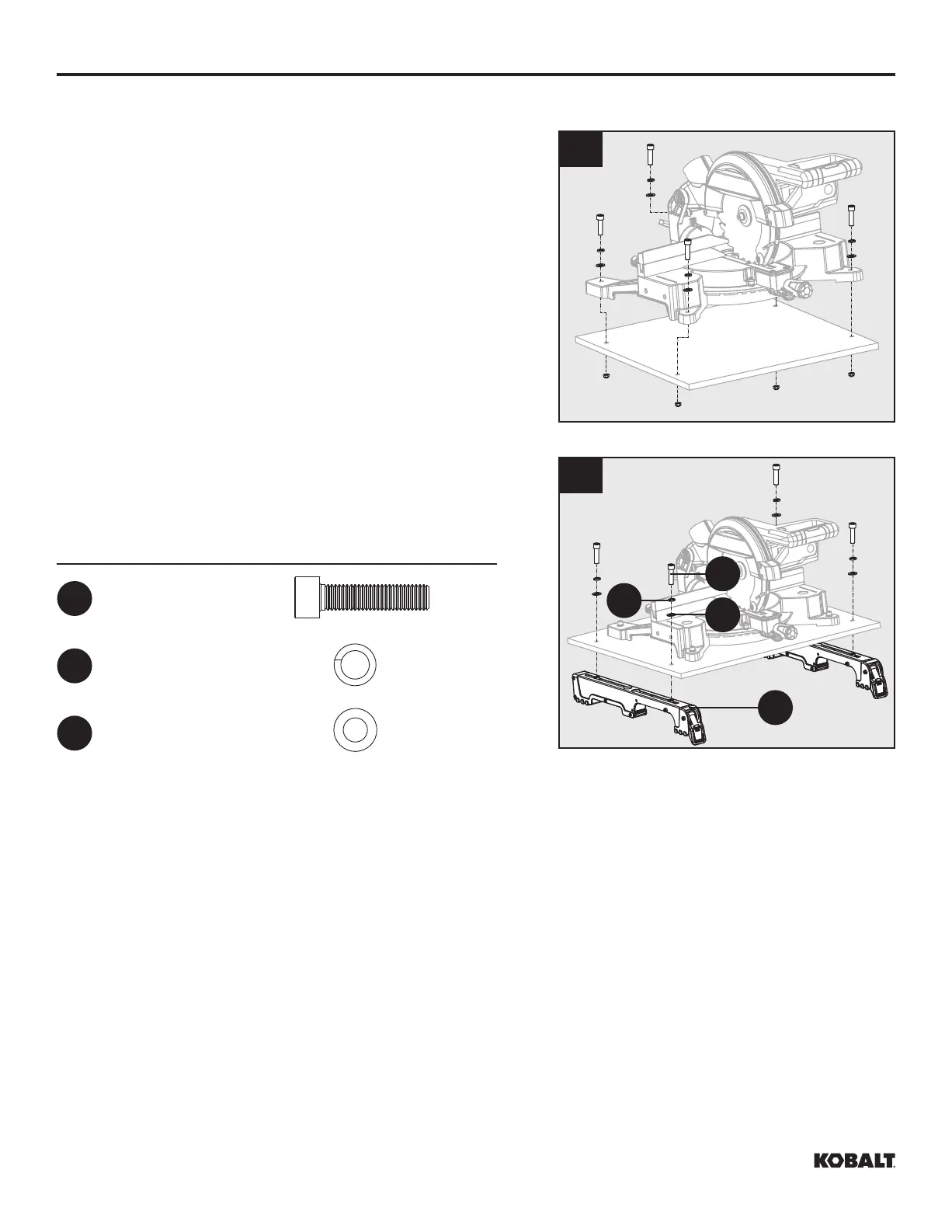

If the saw has holes that do not line up with the slots in the saw mounting brackets:
1. Unplug the saw and lock saw arm in the down position.
Mount the saw to a mounting surface at least 1/2 in.
thick using 5/16 in. hexagon bolts, washers, and nuts
(not included).
2. Drill holes in the mounting surface to match the slots
in the saw mounting brackets.
Proceed with installation as previously described.
Hardware Used
Hexagon bolt
M6 x 55mm
x 4
BB
Spring washer 6
x 4
II
Flat washer 6
x 4
JJ
ASSEMBLY INSTRUCTIONS
