ASSEMBLY INSTRUCTIONS
MOUNT THE MITER SAW TO THE STAND

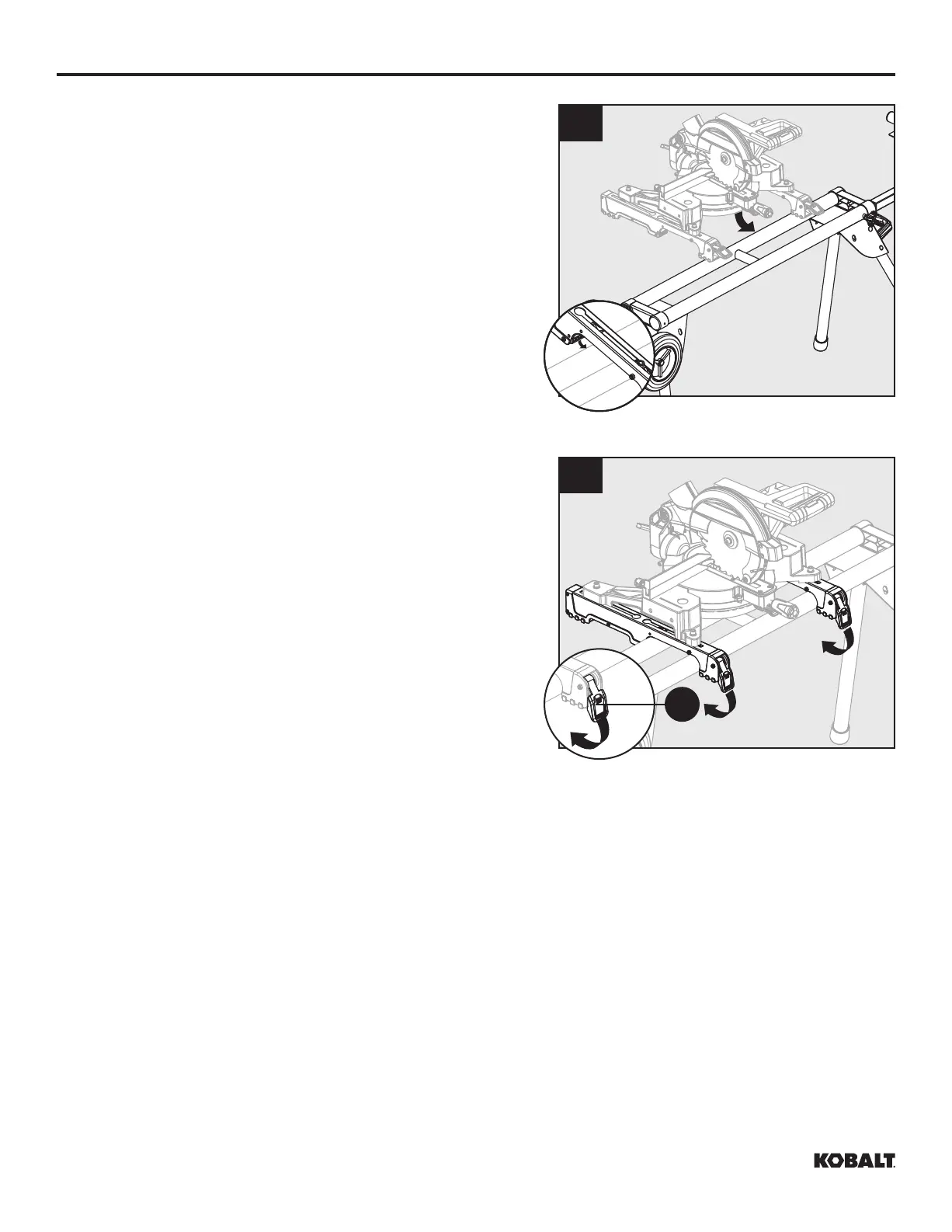

1. Lift the saw and bracket assembly, allowing the
assembly to tilt slightly toward your body. While still
tilted toward you, hook the front edge of the bracket
assembly onto the front rail of the stand.
2. Lower the bracket assembly to allow the rear edge
of the bracket to seat fully over the rear rail and lock
the brackets in position by lowering the locking
levers (L).
Note: Continue to hold the mounting bracket assembly
with one hand until both levers are securely locked.
3. Check position and adjust, if necessary, to make sure
the weight of the saw is evenly balanced over the rails.
Ensure the saw is fully seated and locked in position.
To remove saw from stand:
1. Raise the locking levers to unlock the saw and mounting brackets assembly.
2. Lift away from the rear rail of the stand to disengage.
3. With the assembly tilted slightly toward you, lift the front part of the assembly to disengage from the
front rail of the stand.
