OPERATING INSTRUCTIONS

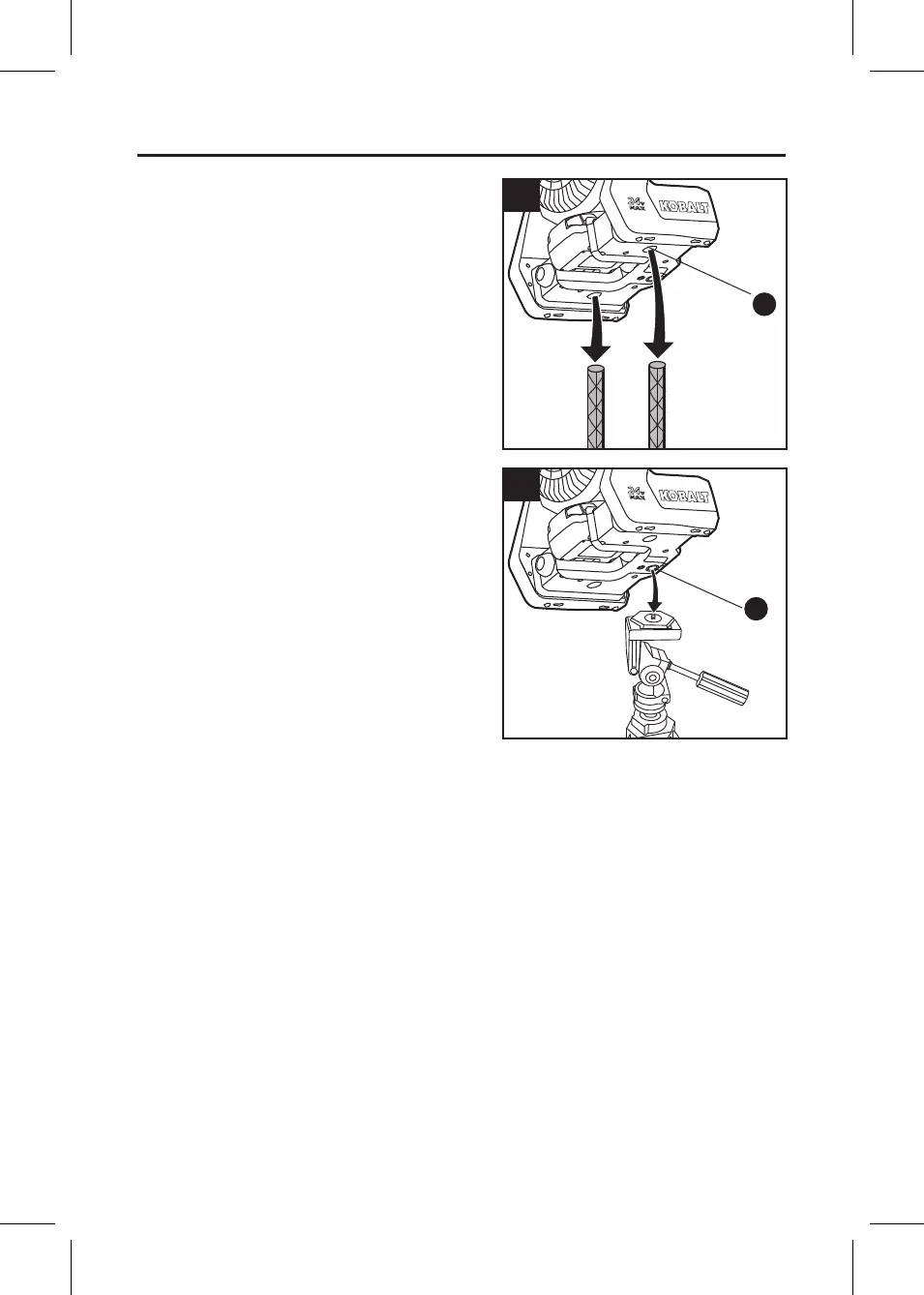

Mounting the fan to rods using the rod pockets:
The fan can be mounted to secured rods, tubes, or
rebar using the two rod pockets (H) on the base of
the fan.
NOTE: The mounting posts must have a diameter
between 0.5 and 0.7 inches. Align the rod pockets
with the rods and slide the fan down onto the rods.
Mounting the fan to a tripod using a tripod
mounting hole:
a. Place the fan on the tripod mounting screws
(5/8 inch or ¼ inch). Make sure the mounting
hole (G) on the base of the fan seats
completely onto the mounting screw.
b. Turn the fan clockwise to secure it to the tripod.
7
H
8
G
