ASSEMBLY INSTRUCTIONS
WARNING
• If any parts are damaged or missing do not operate this product until the parts are replaced. Using
a product with damaged or missing parts could result in serious personal injury.
• Do not attempt to modify this product or create accessories not recommended for use with this
product. Any such alteration or modication is misuse and could result in a hazardous condition
leading to possible serious personal injury.
• Do not insert the battery until assembly is complete and you are ready to mow. Failure to comply
could result in accidental starting and possible serious personal injury.
• To prevent accidental starting that could cause serious personal injury, always remove the battery
pack from the product when assembling parts.
• Never operate the mower without the proper safety devices in place and working. Never operate
the mower with damaged safety devices. Operation of this product with damaged or missing parts
could result in serious personal injury.
Close
Open
Close
Open
Close
Open
Close
Open

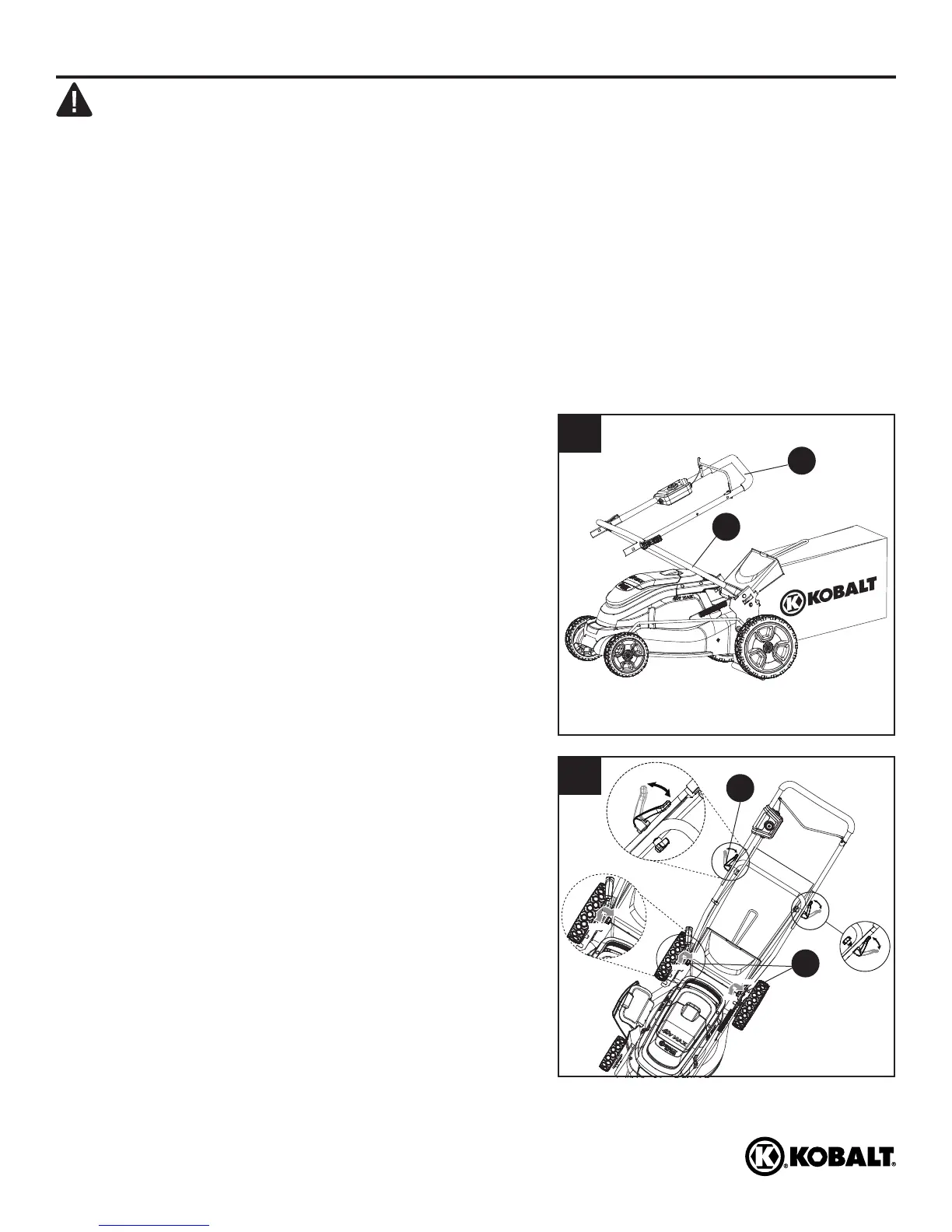

1a. Unfolding and adjusting handle
Pull up and back on the upper handle (G) to raise the
handle into operating position. Make certain the lower
handle (Q) snap into place securely.
1a
1b
G
Q
H
I
1b. Tighten the upper handle (G) with the cam
locks (H) on both sides. Tighten the lower
handle (Q) with the handle knobs (I) on both
sides. If the connection is not stiff, hand tighten
the handle knobs.
Note: Do not overtighten the handle knobs.
It could cause cam locks to break.
