KNOW YOUR TILE SAW

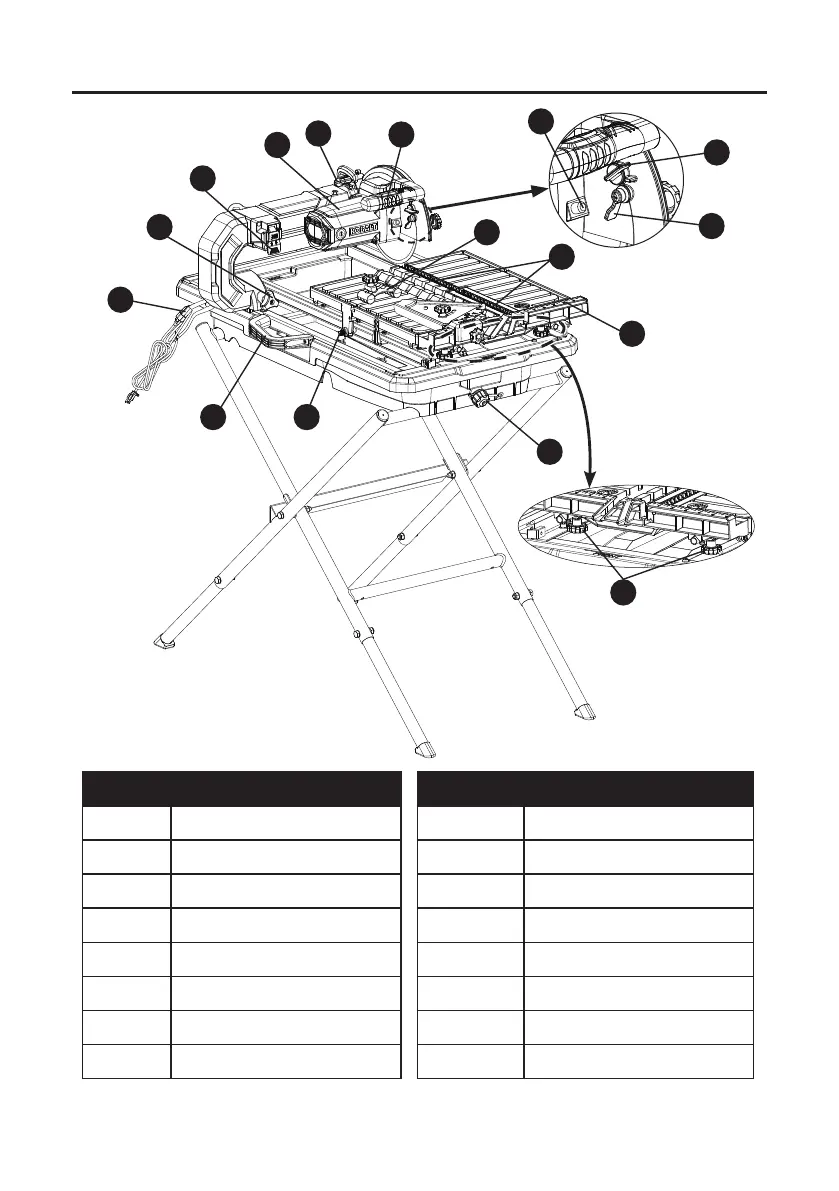

PART DESCRIPTION
B Tile Clamp
Q Motor handle
R Arbor lock button
S Water volume control
T Water angle control
U Table inserts
V Sliding T-fence extension
W Drain plug
PART DESCRIPTION
X Table release pin
Y Carry handle
Z Power cord receptacle
AA Arm folding lock knob
BB ON/OFF switch
CC Motor
DD Cutting head lock knob
EE Sliding T-fence lock knobs
U
B
W
X
Y
V
S
T
AA
BB
CC
DD
Z
Q
FRONT OF SAW
R
EE
