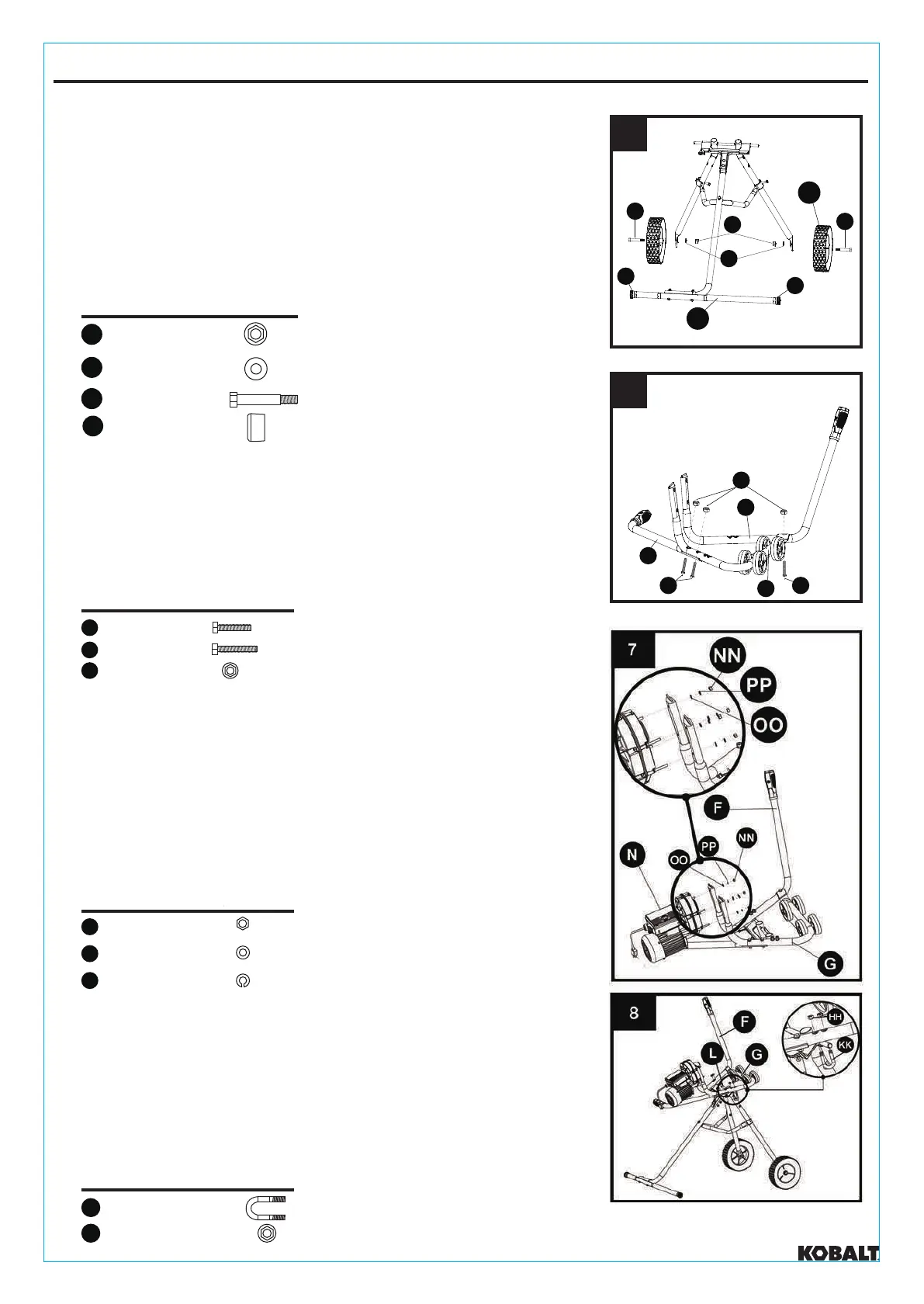

ASSEMBLY INSTRUCTIONS
8
DO NOT COMPLETELY TIGHTEN.
6. Attach drum support arm (G) to handle (F) using
M8 × 40 mm bolt (DD) and M8 Nut (HH).
Assemble dump handle (J) to drum support arm (G)
using two M8 × 45 mm bolts (EE) and two M8
nuts (HH).
7. Assemble motor (N) to handle (F) and drum support
arm (G) using M8 nut (NN), M8 spring washer (PP)
and M8 flat washer (OO).
After aligning all holes from motor housing to drum support
arms properly, tighten all screws from motor housing to mixer
arm supports securely.
TIGHTEN ALL FASTENERS FROM STEPS 6 & 7.
8. Assemble U-Bolt (KK) to drum support arm (G) using
two M8 nuts (HH). Do not completely tighten.
Slide onto pivot pin (L).
Insert U-Bolt (KK) into handle (F). Attach two
M8 flange nuts (HH) to U-Bolt.
TIGHTEN ALL SCREWS.
HARDWARE USED
HARDWARE USED
HARDWARE USED
1
M8 × 40mm Bolt
DD
2
M8 × 45mm Bolt
EE
3
M8 Nut
HH
M8 Nut
M8 Flat
Washer
M8 Spring
Washer
NN
OO
PP
4
4
4
4
M8 Nut
HH
2
M8 U-Bolt
KK
5. Assemble wheels (B) to mixer frame using shoulder bolt
(CC), M10 flat washer (BB) and M10 nut (AA).
Tighten wheel bolts.
Set mixer frame on level surface. Make sure cross member (E)
is steadily seated on the ground.
Slide end cap (II) onto rear leg cross member (E).
MAKE SURE ALL SCREW HOLES AND SCREWS ALIGN
PROPERLY. PROPERLY TIGHTEN ALL SCREWS USED IN
STEPS 1 - 5.
HARDWARE USED
M10 Nut
2
2
AA
M10 Flat
Washer
BB
2
Shoulder Bolt
CC
End Cap
2
II
5
B
E
II
II
cc
cc
BB
AA
6
HH
F
J
G
EE DD
