KMD 01
Digital multimeter

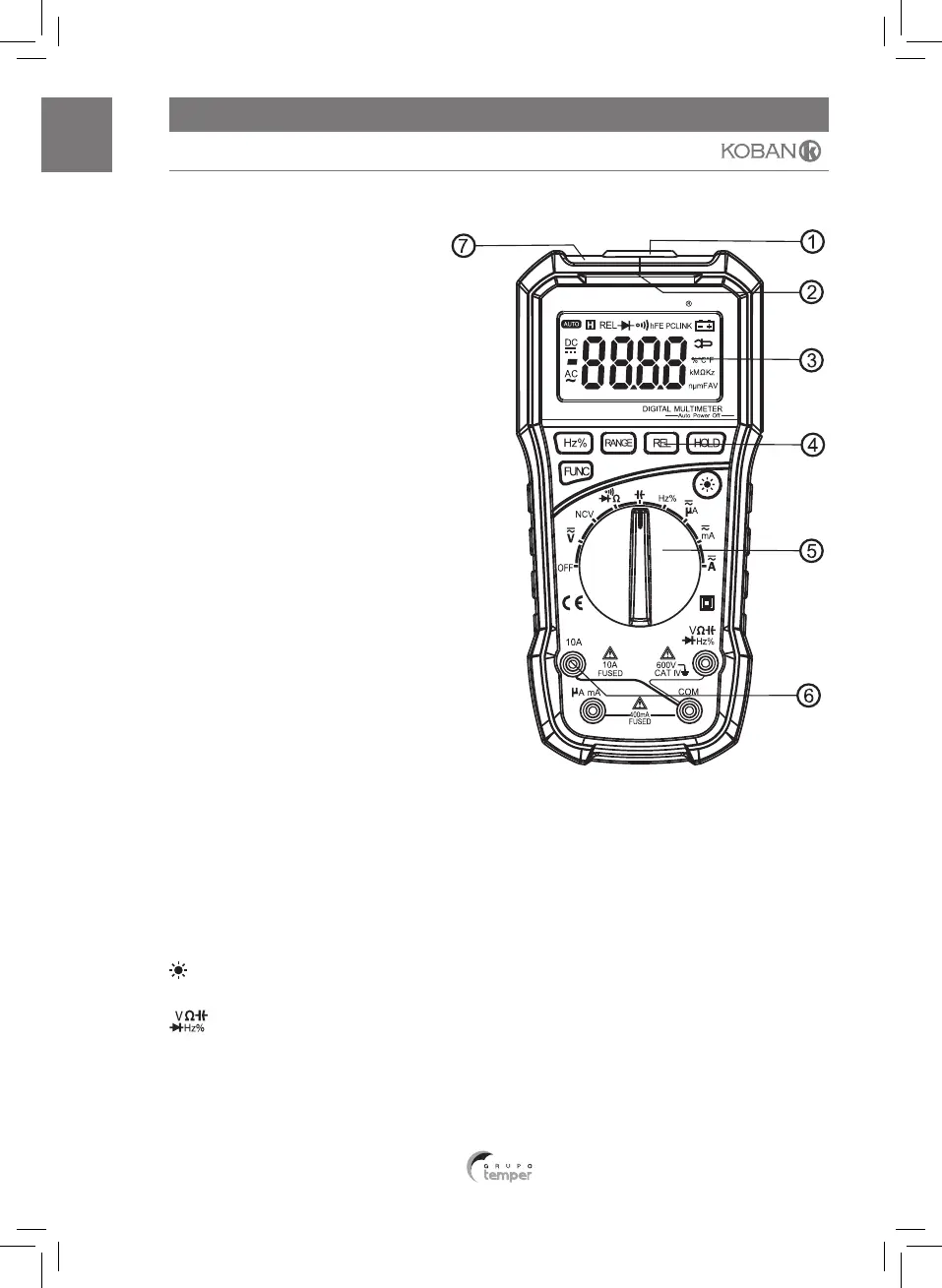

Part name
1. USB communication
interface (only for MS8250B)
2. Non-contact voltage
detection indicator
3. LCD display
4. Key
5. Functional rotary switch
6. Input socket
7. Non-contact voltage
induction area
Switch, Button and Input Jack Description
HOLD key: used for reading hold.
FUNC key: used for measuring function switch.
RANGE key: used for switching automatic measuring range or manual
measuring range.
REL key: used for switching relative to measuring function.
Hz% key: used for duty ratio and frequency measurement function switch.
Backlight key: turn on backlight
OFF position: used for shutting off the power.
Jack: voltage, resistance, frequency, duty ratio, capacitance, diode, circuit
connection input wire connecting terminal.
COM Jack: common wire connecting terminal
μAmA Jack: μA and mA current input terminal.
10A Jack: 10A current input terminal.
