Page 7 of 20
Configuration for different applications.
In most cases the TLG2000 does not need to be configured and factory settings can be used.
However, on some installations it is necessary to change the TLG2000 functionality. When powering up
TLG2000 it is possible to enter a configurations mode. Four functions can be adjusted to suit the actual needs.
A. Enable / disable the Fore TYFON indicator on the panel.
If two whistles (fore and aft) are connected and the distance between them is more than 100 m it is not allowed to
sound them simultaneously. See the manual for correct electrical connections.
B. Enable / disable the BELL and GONG function or change the mode of operation.
BELL and GONG function is enabled by default and is configured to operate an electro-mechanical B&G type KB30 and
KG50. If B&G is not connected to the TLG2000, this function can be disabled and when pushing the button for B&G,
respective LED will rapidly flash for 2 seconds to indicate that this function is not installed.
C. Change the activation mode of the GEA & Abandon ship function.
There are three methods of activating the GEA or Abandon ship signal by an external dry contact (closed when active)
connected to the TLG2000.
8 - When active, the pre-programmed signal sequence is started. When not active, the sequence is stopped.
9 - Temporary (pulsed) action will start the pre-programmed signal sequence. One more pulse will stop the sequence.
10 - If an external signal pattern generator is connected, this mode should be used.
D. Change respons time for external activation of morse light.
TLG2000 Signal Controller Instruction Manual
1
When indicator (G) lits Function
1 Fore TYFON indicator disabled when combined function is chosen.
2 (default) Fore TYFON indicator enabled when combined function is chosen.
3 B&G disabled.
4 (default) Electro mechanical B&G type KB30 and KG50.
5 Electronic B&G type BG300. “Aground” button has no function.
6 Electronic B&G type BG300. “Anchor” button has no function.
7 Electronic B&G type BG300 with both characters enabled.
8 Use internal GEA & Abandon ship signal generator. Maintained action.
9 (default) Use internal GEA & Abandon ship signal generator. Momentary action.
10 Use external GEA & Abandon ship signal generator. When input activated it will activate
all connected whistles and MORSE LIGHTS.
11 (default) 100ms response time for external activation of morse light
12 250ms response time for external activation of morse light
Note! The function groups 1-2, 3-7, 8-10 and 11-12 could only have one LED each enabled.
2
3
4
5
6
7
8
9
10
11
12

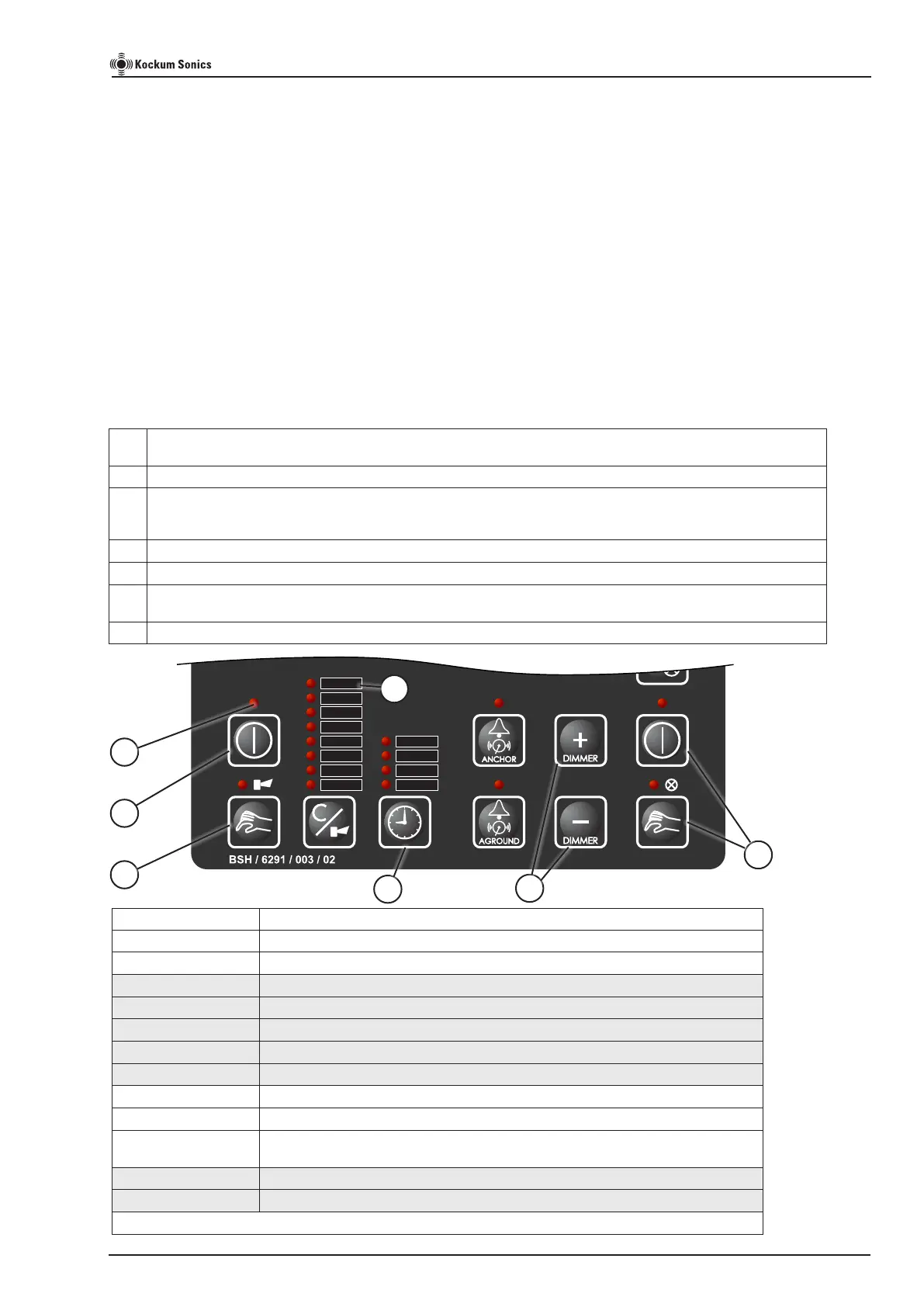

1 Press B and C buttons simultaneously when powering up the unit. All LED’s will flash for 3 seconds.
The actual configuration will be shown on the G group of LED’s (marked 1 to 12).
2 Press E button (+ moves LED’s up, - moves down) to actual position of the G groups of LED’s.
3 Check function value for chosen position on LED A
LED off = function disabled
LED on = function enabled
4 Move the position of the lit LED to the corresponding function in the group with use of buttons E.
5 Turn the function ON by pressing the button B. Check that the LED A is turned on.
5 When all settings are done, press the F buttons simultaneously to save the new settings.
Before pressing the F button you can press the D button to see the new configuration.
6 All LED’s will flash for 3 seconds and the unit will automatically be restarted.
C
E
A
F
G
D
B
