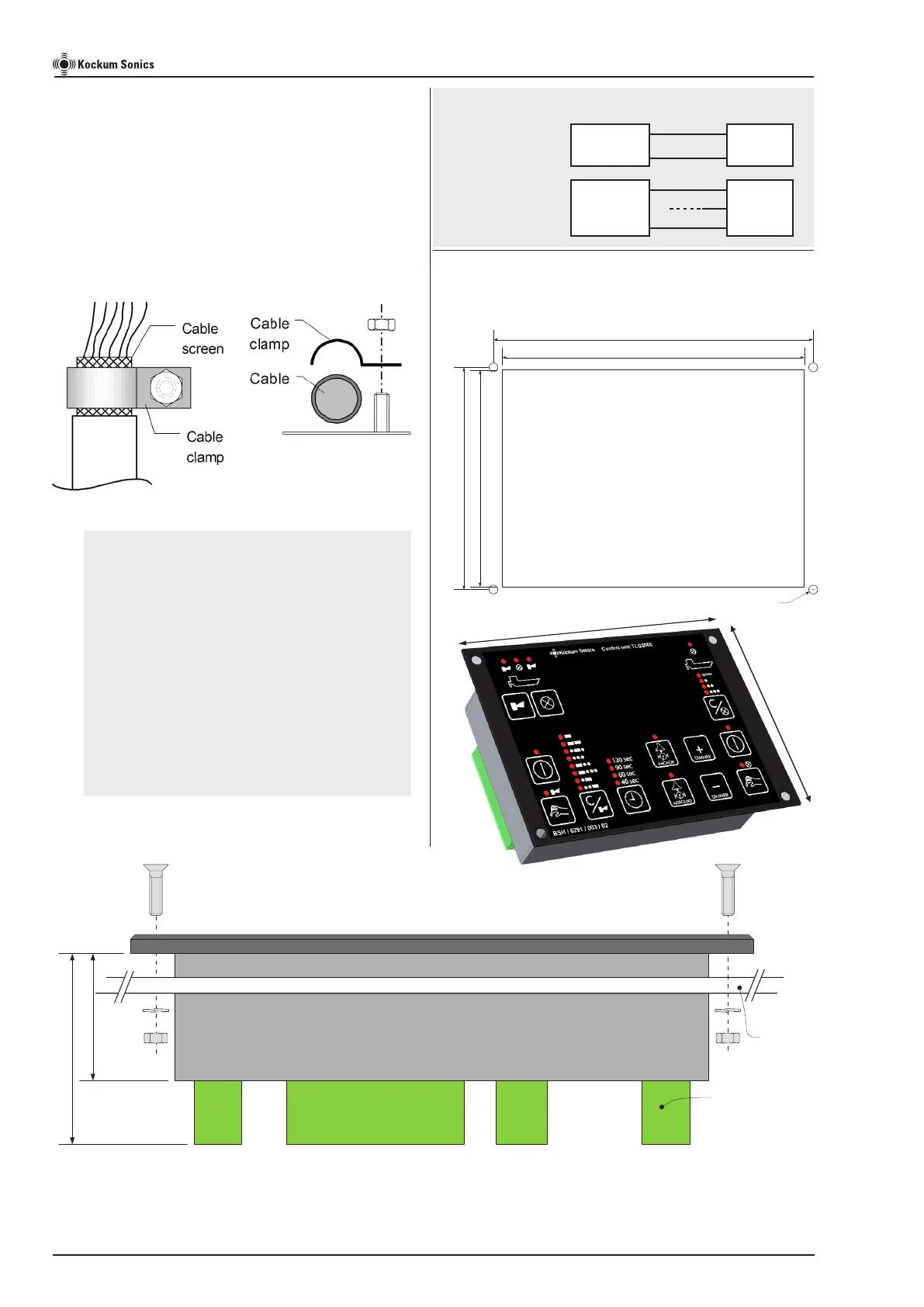

Mounting
The unit is to be panel mounted.
Console panel cut-out hole:
Electrical installation.
To meet the EMC (Electro Magnetic Compatibility)
requirements the electrical installation must be
done correctly.
All four terminal blocks could be extracted.
Max cable diameter on terminal block 2.5mm
2
.
Be sure to fix the cables such way that no forces
are put on the terminal blocks.
N
Page 8 of 20
Note !
• The enclosure must be electrically
connected to the ship’s ground.
• Screw terminal 1 must be connected
to ship’s ground
• This version of unit is fully compatible
with older versions of TLG2000
including functions and mechanically
mounting. If the power supply for the
Signal Controller is AC, an AC-DC
converter must be added.
See page 16 for details.
TLG2000 Signal Controller Instruction Manual
Note!
If special mechanical protection is needed or the possibility to mount the unit on the wall, an extra cover is
available, ref. no. 21775055. This is mounted behind the console to protect the rear side of the TLG2000.
See page 16 for details.
170 (+ 0.5)
122 (+ 0.5)
180 (+/- 0.5)
125 (+/- 0.5)
Ø5(x4)
196 mm
140 mm
22
21
+24V DC
0V DC
24V DC
supply
TLG2000
22
21
+12V DC
0V DC
+/- 12V DC
supply
TLG2000
-12V DC
OK
NOT
ALLOWED
Correct use of external DC supply:
N
40mm
60mm
Console
Screwterminals
Max2.5mm
2
M4
