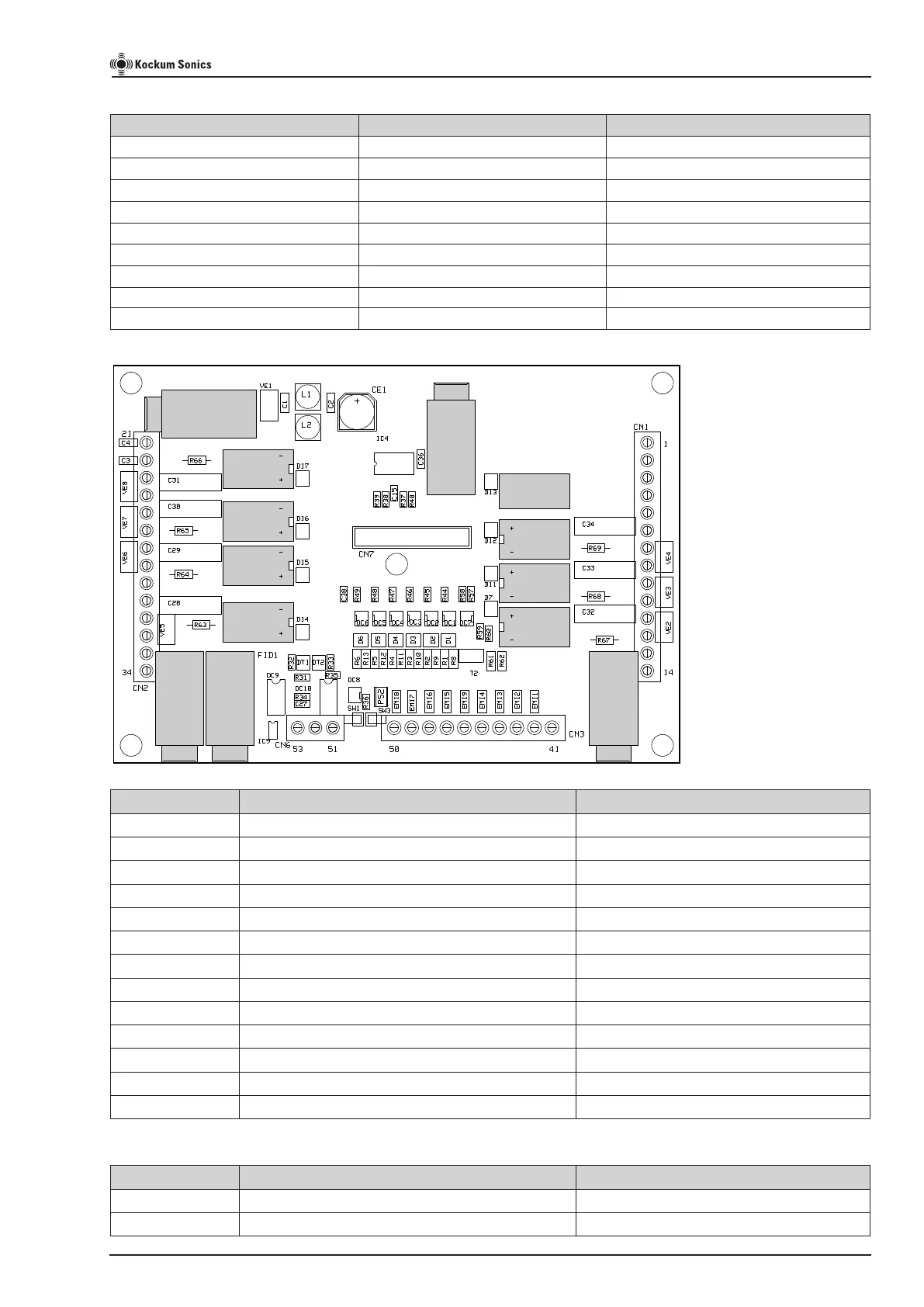

Fault nding scheme
Page 9 of 20
Diagnos Possible cause Solution
The unit is not working
Fuse blown Check fuse F4
MORSE LIGHT section does not work
Fuse blown Check fuse F3
- “ -
Relay RE4 faulty Check relay RE4
TYFON section does not work
Fuse blown Check fuse F1
- “ -
Relay RE1, RE2 or RE3 faulty Check relay RE1, RE2 or RE3
BELL or GONG does not work
Fuse blown Check fuse F2
- “ -
Relay RE5 or RE6 faulty Check relay RE5 or RE6
External push button does not work
Fault on external push button Check the external push button
- “ -
Fault on cable to external push button Check the cable to external push button
TLG2000 Signal Controller Instruction Manual
Component Function Data
F1 Mains for TYFON 2 A, slow blow, 5x20mm
F2 Mains for BELL and GONG 2 A, slow blow, 5x20mm
F3 Mains for MORSE LIGHT 2 A, slow blow, 5x20mm
F4 Mains for the unit’s electronic 500 mA, fast blow, 5x20mm
F5 Mains for the unit’s electronic 500 mA, fast blow, 5x20mm
RE1 Relay for Aft TYFON 2 pole, 1 way contact (NO)
RE2 Relay for Fore TYFON, <= 100m 2 pole, 1 way contact (NO)
RE3 Relay for Fore TYFON, > 100m 2 pole, 1 way contact (NO)
RE4 Relay for MORSE LIGHT 2 pole, 1 way contact (NO)
RE5 Relay for BELL 2 pole, 1 way contact (NO)
RE6 Relay for GONG 2 pole, 1 way contact (NO)
RE7 Relay for GEA active 2 pole, 1 way contact (NO)
RE8 Relay TYFON active 1 pole, change over contact
Recommended spare parts
Qty. Name Ref. no.
1 Fuse kit 229.10.075
1 Relay kit 229.10.085
F4
F2
F3
F1
RE7
RE6
RE5
RE4
RE8
RE3
RE2
RE1
F5
