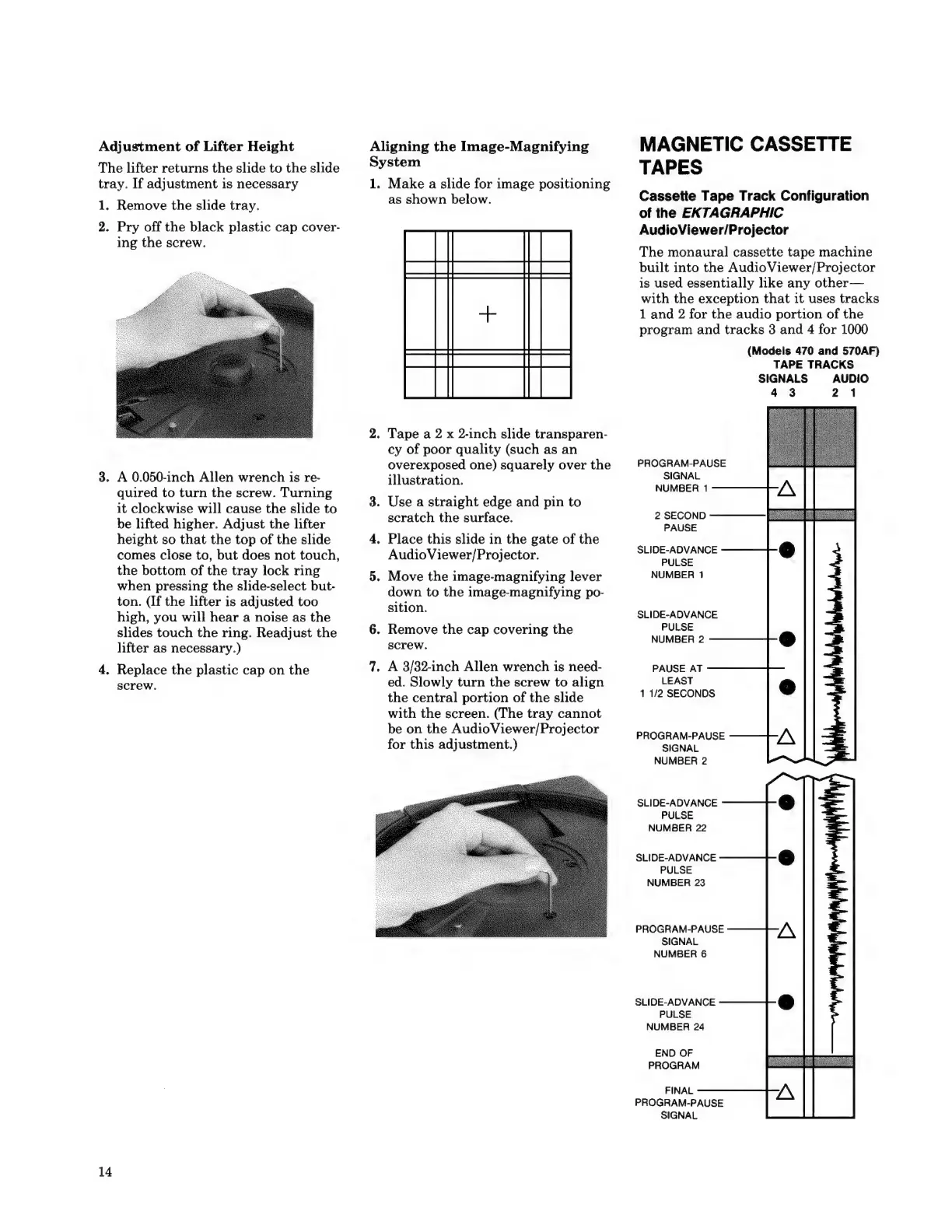

Adjustment
of
Lifter
Height
The
lifter
returns
the
slide
to
the
slide
tray.
If
adjustment
is
necessary
1.
Remove
the
slide
tray.
2.
Pry
off
the
black
plastic
cap
cover-
ing
the
screw.
3.
A
0.050-inch
Allen
wrench
is
re-
quired
to
turn
the
screw.
Turning
it
clockwise
will
cause
the
slide
to
be
lifted
higher.
Adjust
the
lifter
height
so
that
the
top
of
the
slide
comes
close
to,
but
does
not
touch,
the
bottom
of
the
tray
lock
ring
when
pressing
the
slide-select
but-
ton.
(If
the
lifter
is
adjusted
too
high,
you
will
hear
a
noise
as
the
slides
touch
the
ring.
Readjust
the
lifter
as
necessary.)
4.
Replace
the
plastic
cap
on
the
screw.
14
Aligning
the
Image-Magnifying
System
1.
Make
a
slide
for
positioning
as
shown
below.
2.
Tape
a
2
x
2-inch
slide
transparen-
cy
of
poor
quality
(such
as
an
overexposed
one)
squarely
over
the
illustration.
3.
Use
a
straight
edge
and
pin
to
scratch
the
surface.
4.
Place
this
slide
in
the
gate
of
the
AudioViewer/Projector.
5.
Move
the
image-magnifying
lever
down
to
the
image-magnifying
po-
sition.
6.
Remove
the
cap
covering
the
screw.
7.
A
3/32-inch
Allen
wrench
is
need-
ed.
Slowly
turn
the
screw
to
align
the
central
portion
of
the
slide
with
the
screen.
(The
tray
cannot
be
on
the
AudioViewer/Projector
for
this
adjustment.)
MAGNETIC
CASSETTE
TAPES
Cassette
Tape
Track
Configuration
of
the
EKTAGRAPHIC
AudioViewer/Projector
The
monaural
cassette
tape
machine
built
into
the
AudioViewer/Projector
is
used
essentially
like
any
other—
with
the
exception
that
it
uses
tracks
1
and
2
for
the
audio
portion
of
the
program
and
tracks
3
and
4
for
1000
(Models
470
and
570AF)
TAPE
TRACKS
SIGNALS
AUDIO
4
3
2
1
PROGRAM-PAUSE
SIGNAL
NUMBER
1
AN
2
SECOND
PAUSE
SLIDE-ADVANCE
@
PULSE
NUMBER
1
SLIDE-ADVANCE
PULSE
NUMBER
2
@
PAUSE
AT
LEAST
1
1/2
SECONDS
©
PROGRAM-PAUSE
SIGNAL
A
NUMBER
2
SLIDE-ADVANCE
PULSE
NUMBER
22
SLIDE-ADVANCE
PULSE
NUMBER
23
PROGRAM-PAUSE
SIGNAL
NUMBER
6
SLIDE-ADVANCE
PULSE
NUMBER
24
END
OF
PROGRAM
FINAŁ
PROGRAM-PAUSE
SIGNAL
