OPERATION

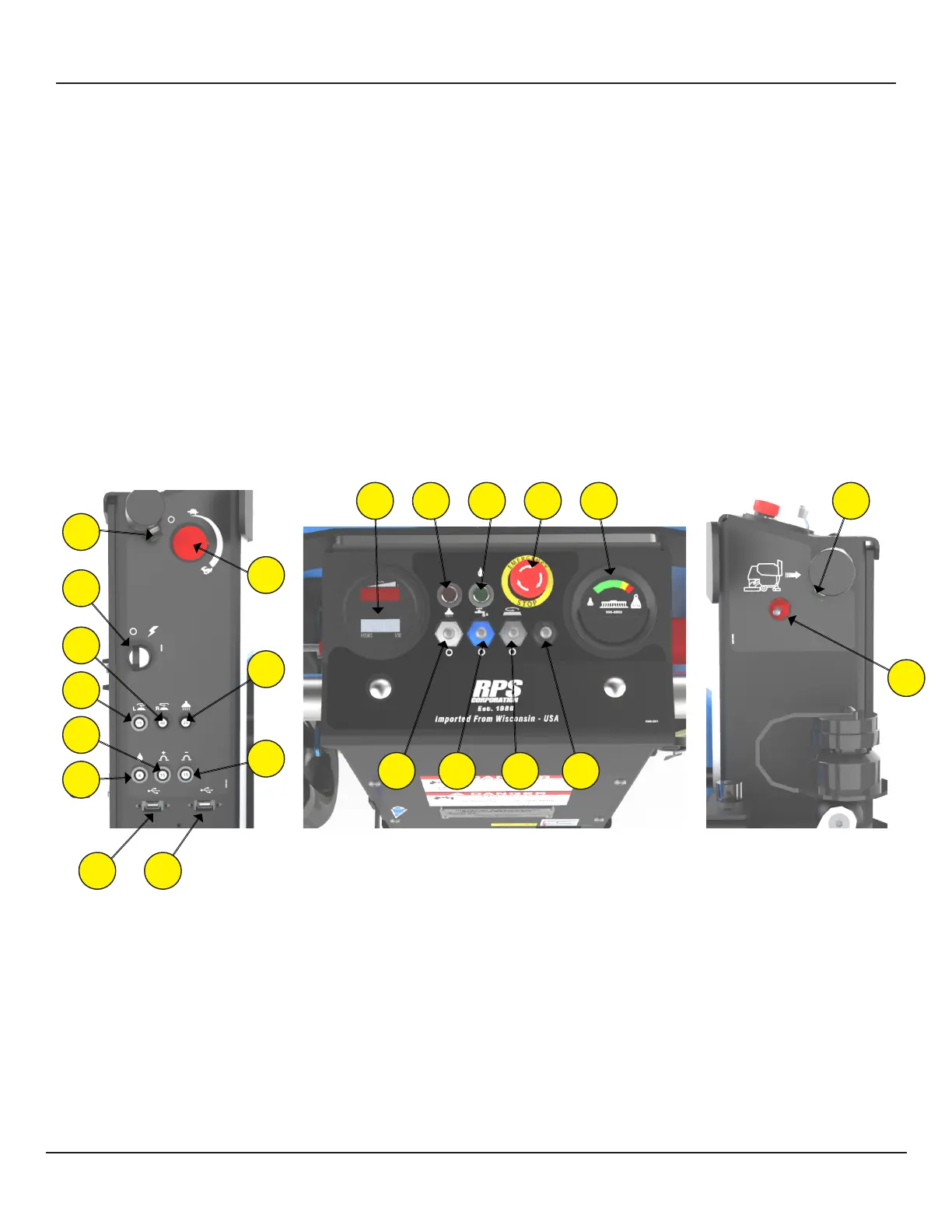

Central Command Overview
1. Drive Switch
2. Key Switch
3. Right Brush Circuit Breaker
4. Left Brush Circuit Breaker
5. Positive BUSS Circuit Breaker
6. Pump Circuit Breaker
7. USB Port (Optional)
8. USB Port (Optional)
9. Negative BUSS Circuit Breaker
10. Vac Circuit Breaker
11. Speed Control Knob
12. Battery Guage/Hour Meter
13. Vac Clog Indicator Light (Optional)
14. Solution Indicator Light
15. E-Stop
16. Brush Pressure Gauge
17. Vac Switch I/O
18. Solution Switch I/O
19. Deck Switch Up (I) / Down (O)
20. Down Pressure Toggle Switch (Optional)
21. Drive Switch
22. Reverse Switch
1
2
3
5
4
6
7 8
10
9
11
12
17 18 19 20
13
14 15 16 21
22
