Kodiak SXA1900HX, User Manual

No.2R-06125
1 GESG15411460000
BRACKET (1)
1
2 GESG15311462000 N-BRACKET 1
3 GESG15311461000
BRACKET (2)
1
4 GESG15200347000
ROTOR ASSY
1
L#20212122
5 GESG15250222000
STATOR ASSY
1
L#20212119
6 GESG1531E471000 COVER,BRACKET 1
7 GESG6205ZZ-CM-NS7
BALL BEARING
1
8 GESGK4403005
RUBBER BUSH
1
9 GESG15111473000
BRIDGE DIODE
1
10 GESGK3403011
HEX,BOLT W/FLANGE(M10×1.25-250）
1
11 GESGK3403015
HEX,BOLT W/FLANGE(M6×1.0-165）
4
12 GESG19B30908020
HEX,BOLT W/FLANGE(M8×1.0-20）
4
13 GESG19B30905012
HEX,BOLT W/FLANGE(M5×0.8-12）
2
14 GESG19B50908020
FLAT HEAD BOLT W/SOCKET（M8×1.25-20)
4
15 GESG19S00904018
CROSS RECESSED HEAD SCREW(M4-18）
1
16 GESG19S00905007
CROSS RECESSED HEAD SCREW(M5-7）
1
17 GESG15350107000
TUBE,LEAD WIRE(L=240)
1
18 GESG15350101000
CONNECTOR 4P 凸
2
19 GESG15350307000
CONNECTOR 6P 凸
1

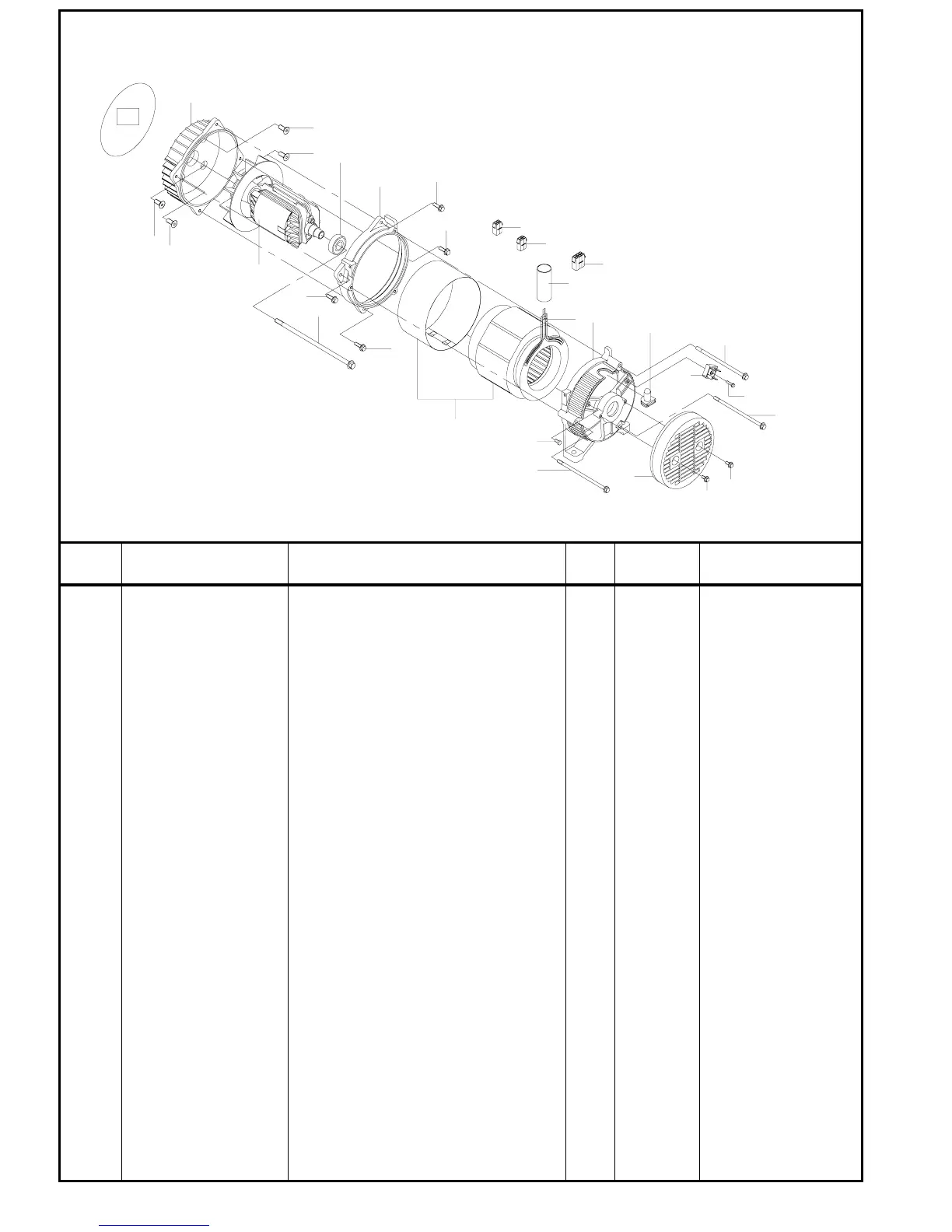

ALTERNATOR
GESXB5500HX(S)
REF No. RemarksParts No. Parts name Q'ty Price
Ｅ／Ｇ
１
１４
１４
１４
１４
７
２
４
１２
１０
１２
１２
１２
１９
１７
１８
１９
８
５
３
１６
１１
６
１３
１３
１１
１５
９
１１
ＡＬＴＥＲＮＡＴＯＲ
1

Kodiak SXA1900HX, Specifications

General

Brand	Kodiak
Model	SXA1900HX,
Category	Portable Generator
Language	English
