Kodiak SXA1900HX, User Manual

No.2R-06125
28 GESG38220-ZE1-000 CASE COMP,FUSE 1 HONDA PART
29 CIRCUIT PROTECTOR (1A､125V) 1 HONDA PART
30 GESG15500982000 LEAD WIRE ASSY,COMBINATION SWITCH 1
31 GESG19S00904012 CROSS RECESSED HEAD SCREW (M4-12) 12
32 GESG19S00905010 CROSS RECESSED HEAD SCREW (M5-10) 10
33 GESG19N10904000 HEX,NUT W/FLANGE M4 12
34 GESG19SF4906015
CROSS RECESSED HEAD SCRED (M6-15)
1
35 GESG19N10906000
HEX,NUT W/FLANGE M6
1
36 GESG19S00903012 CROSS RECESSED HEAD SCREW (M3-12) 2
37 LENS ASSY,PROTECTOR 1 HONDA PART
38 GESG32343-892-003
KNOB,CONTROL LEVER
1 HONDA PART
39 GESG36106-892-003
BUSH,CONTROL KNOB
1 HONDA PART
40 GESG19S00904006
CROSS RECESSED HEAD SCRED (M4-6)
1
41 GESG15500958000
EARTH WIRE １
1
42
EARTH WIRE 2
1
43 FLAT WASHER(5) 3
44 GESG15550168000 STUD BOLT (M5) 1
45 GESG15301034000 CAP WASHER 1
46 LOCK WASHER(5) 1
47 GESG19N60905000 WING NUT (M5) 1
48 LEAD WIRE 1
49 GESG19N10905000 HEX,NUT W/FLANGE (M5) 3
Price RemarksREF No. Parts No. Parts name Q'ty

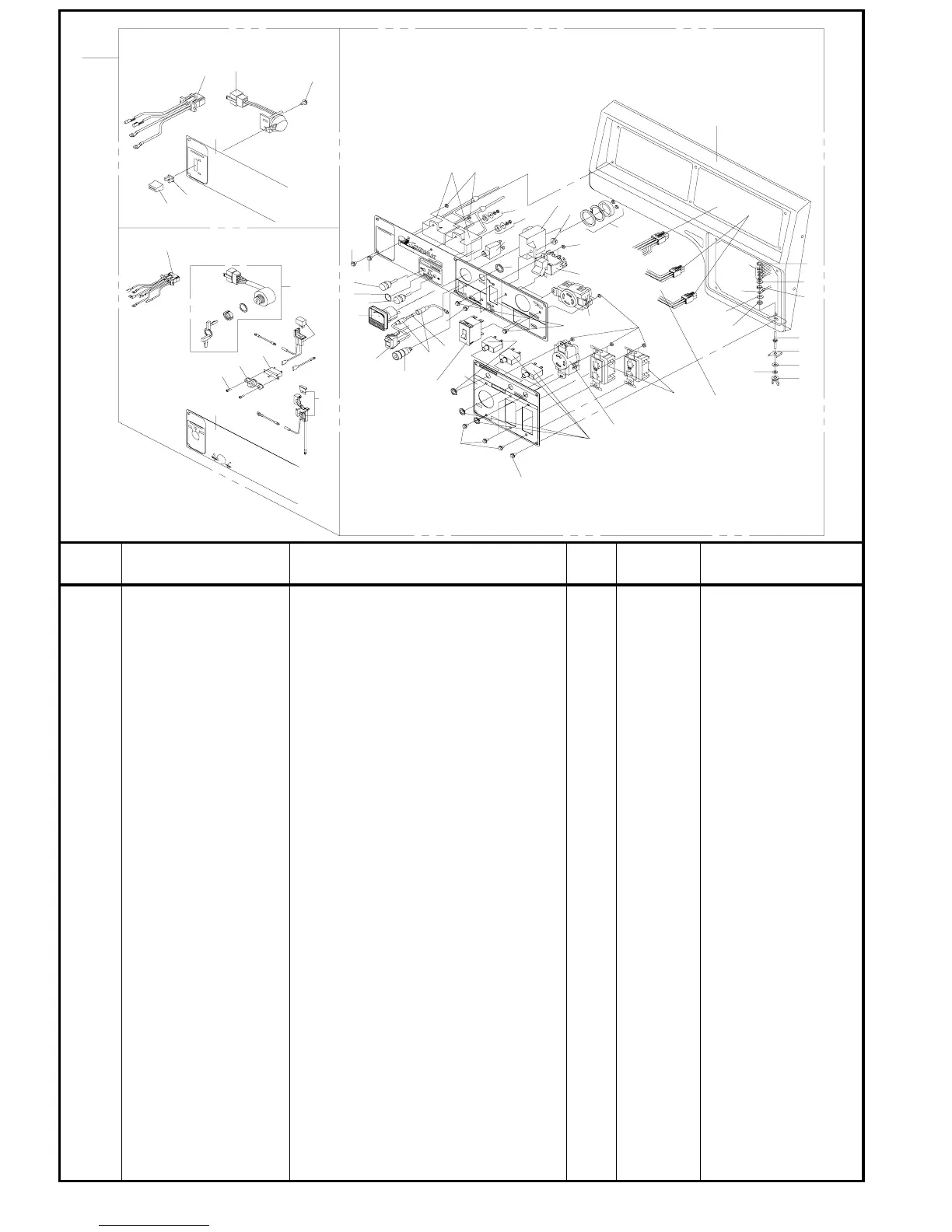

CONTROL BOX
GESXB5500HX(S)
２６
３０
２８
２７
２９
３７
３６
２Ｂ
ＳＸＢ５５００ＨＸＳ ＯＮＬＹ
ＳＸＢ５５００ＨＸ ＯＮＬＹ
２５
２Ａ
２４
３８
３９
４０
ＣＯＮＴＲＯＬ ＢＯＸ
２３
２１
３２
３１
１２
２０
３１
２０
３３
４
９
３２
４２
４４
４５
４３
４７
３
６
５
７
８
９
１０
１１
１４
１３
１３
１４
１５
１７
１６
１８
１９
２２
３１
３３
３３
３４
４１
４３
４９
４３
４９
４６
４９
１
３５
４８
１５
3
