Kodiak SXA1900HX, User Manual

No.2R-06125
1

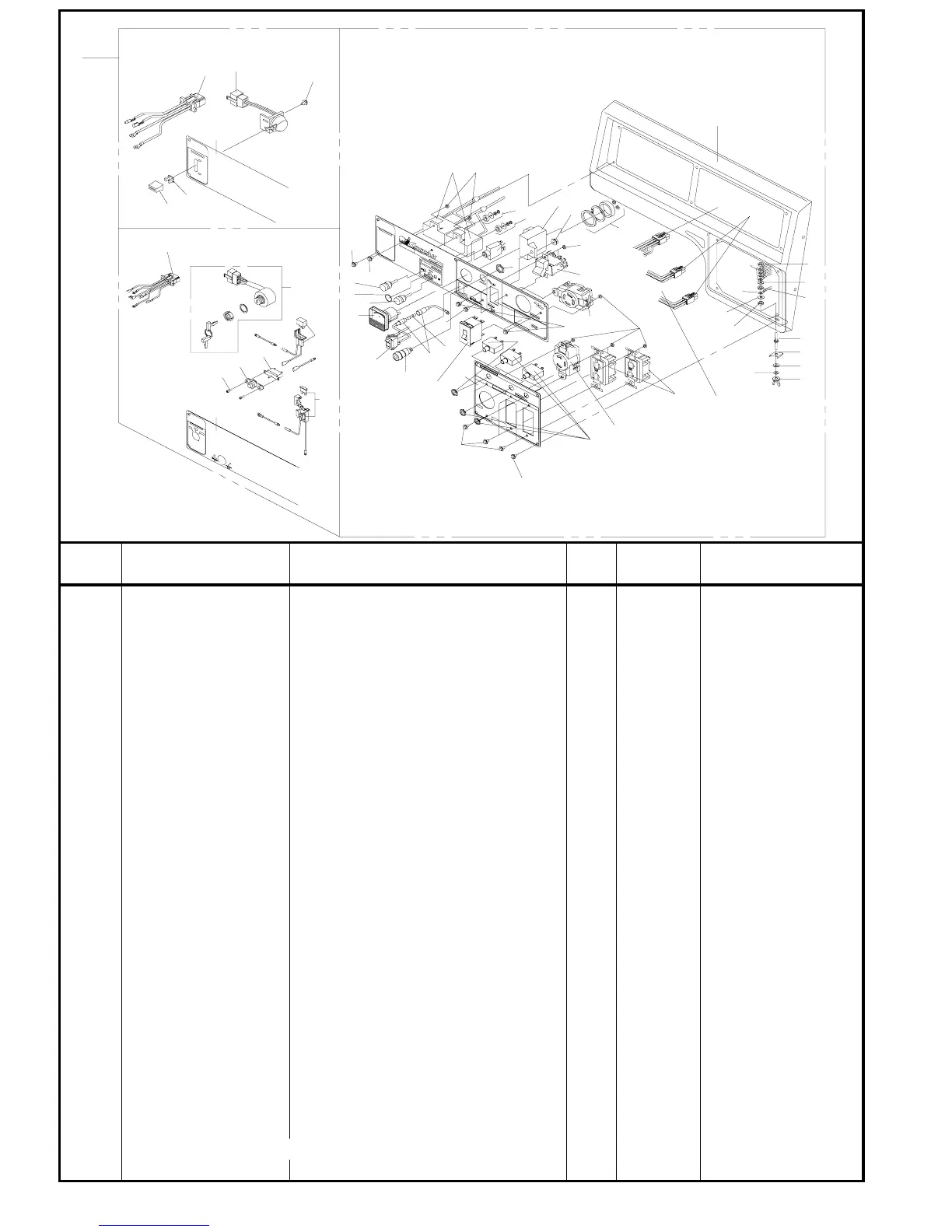

CONTROL BOX ASSY
1
2A GESG15450758000 PANEL 1
2B GESG15450759000 PANEL 1
3 GESG15450768000 PANEL 1
4 GESG15300837000
CONTROL PANEL
1
5 GESG15400104000
RECEPTACLE 20A、GFCI
2
6 GESG15400105000
RECEPTACLE 30A、3P
1
7 GESG15400106000
RECEPTACLE 30
A
、4P
1
8 GESG15400144000
NO-FUSE BREAKER (250V,20A)
2
9 GESG85111573300
NEON BRACKET
1
10 GESG15400143000
SWITCH,VOLTAGE SELECTOR
1
11 GESG15400108000
SWITCH,AUTO THROTTLE
1
12 GESG19600700660
CONTROL UNIT,AUTO THROTTLE
1
13 GESG15111584000
D.C TERMINAL RED(+)
1
14 GESG15111583000
D.C TERMINAL BLACK(－)
1
15 GESG15400141000
NO-FUSE BREAKER DC 10A
1
16 GESG85321072000
LEAD WIRE ASSY,AUTO THROTTLE
1
17 GESG15111585020
FUSE 1A
1
18 GESG15400142000
TWIN NO-FUSE BREAKER (250V,20A)
1
19 GESG15450145000
NO-FUSE BREAKER (250V,30A)
1
20 GESG15400109000 VOLTMETER,FS:300V 1
21 GESG89700581050
CONDENSOR ASSY,１８μF
2
22 GESG15350101000
CONNECTOR 4P 凹
2
23 GESG15350307000
CONNECTOR ６P 凹
1
24 GESG36110-ZB4-701 SWITCH ASSY,ENGINE STOP 1 HONDA PART
25 GESG15500981000
LEAD WIRE ASSY,ENGINE SWITCH
1
26 GESG35100-ZB4-013 KEY SWITCH ASSY,COMBINATION 1 HONDA PART
27 GESG32130-ZE1-000 COUPLER COMP,SILICON RECTIFIER 1 HONDA PART
CONTROL BOX
GESXB5500HX(S)
Price RemarksREF No. Parts No. Parts name Q'ty
２６
３０
２８
２７
２９
３７
３６
２Ｂ
ＳＸＢ５５００ＨＸＳ ＯＮＬＹ
ＳＸＢ５５００ＨＸ ＯＮＬＹ
２５
２Ａ
２４
３８
３９
４０
ＣＯＮＴＲＯＬ ＢＯＸ
２３
２１
３２
３１
１２
２０
３１
２０
３３
４
９
３２
４２
４４
４５
４３
４７
３
６
５
７
８
９
１０
１１
１４
１３
１３
１４
１５
１７
１６
１８
１９
２２
３１
３３
３３
３４
４１
４３
４９
４３
４９
４６
４９
１
３５
４８
１５
2
