5
Operation
Applying AC load (single voltage type) coninued:

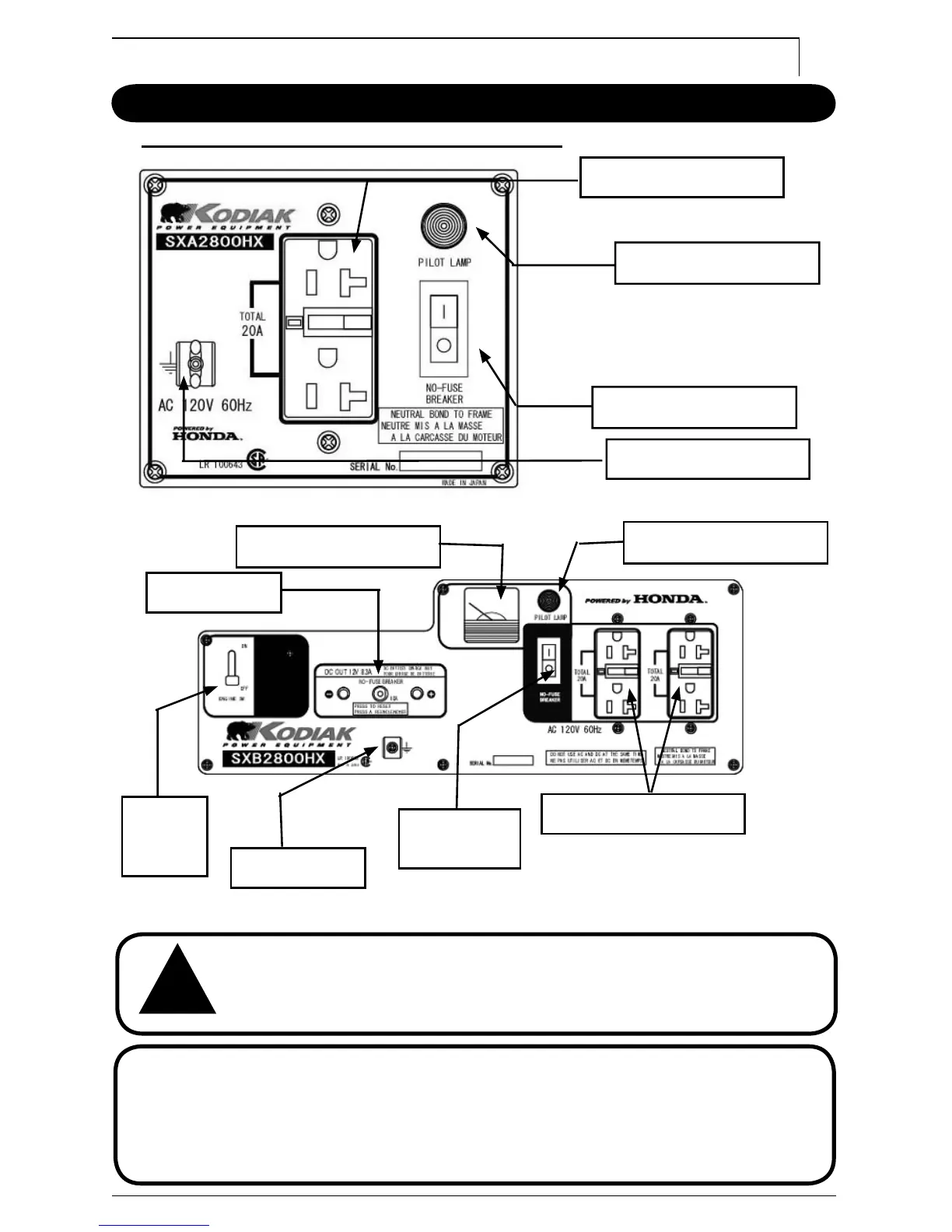

Diagram 5: SXB2800HX AC Panel
Be sure to ground the generator if the connected electrical equipment
is grounded.
CAUTION:
When the generator is overloaded or a short circuit is made, the
‘no-fuse breaker” switch will stop the engine to protect the circuit
automatically. If the “no-fuse breaker” switch trips during operation,
the generator is either over loaded or the appliance is defective.
Check the appliance and/or generator for overloading or defect, make
necessary corrections or repairs before use.
Diagram 4: SXA2800HX AC Panel
No Fuse Breaker
Ground Terminal
Tee Slot GFCI Receptacle
“Power On” Indicator Light
!
WARNING
Output Voltage Meter
“Power On” Indicator Light
Tee Slot GFCI Receptacle
No Fuse
Breaker
12V DC Output
Ground Terminal
Engine
“ON/OFF”
Switch
To Next Page
