Operation
Dual voltage type (SXB4000HX,SXB5500HX(S),SXB7000HX(S) only)
1. Select the voltage using the "select" switch in accordance with the electrical
appliance. Refer to table below.
SWITCH LOWER VOLTAGE RECEPTACLE HIGHER VOLTAGE RECEPTACLE
110V or 120V RATED OUTPUT IS AVAILABLE UNAVAILABLE
110V/220V or
120V/240V
HALF OF RATED OUTPUT IS AVAILABLE RATED OUTPUT IS AVAILABLE
2. Place generator’s “no fuse breaker” switch in the “0" position.
3. Start engine (Please refer to the Honda Engine Owner’s Manual.)
4. Allow the engine to warm up for 2 - 3 minutes before connecting tools
or appliances.
5. Insert the plug of the electrical appliance into the “AC receptacle”.
6. Place generator’s “no fuse breaker switch” in the “1” position.
7. Reset the GFCI receptacle.

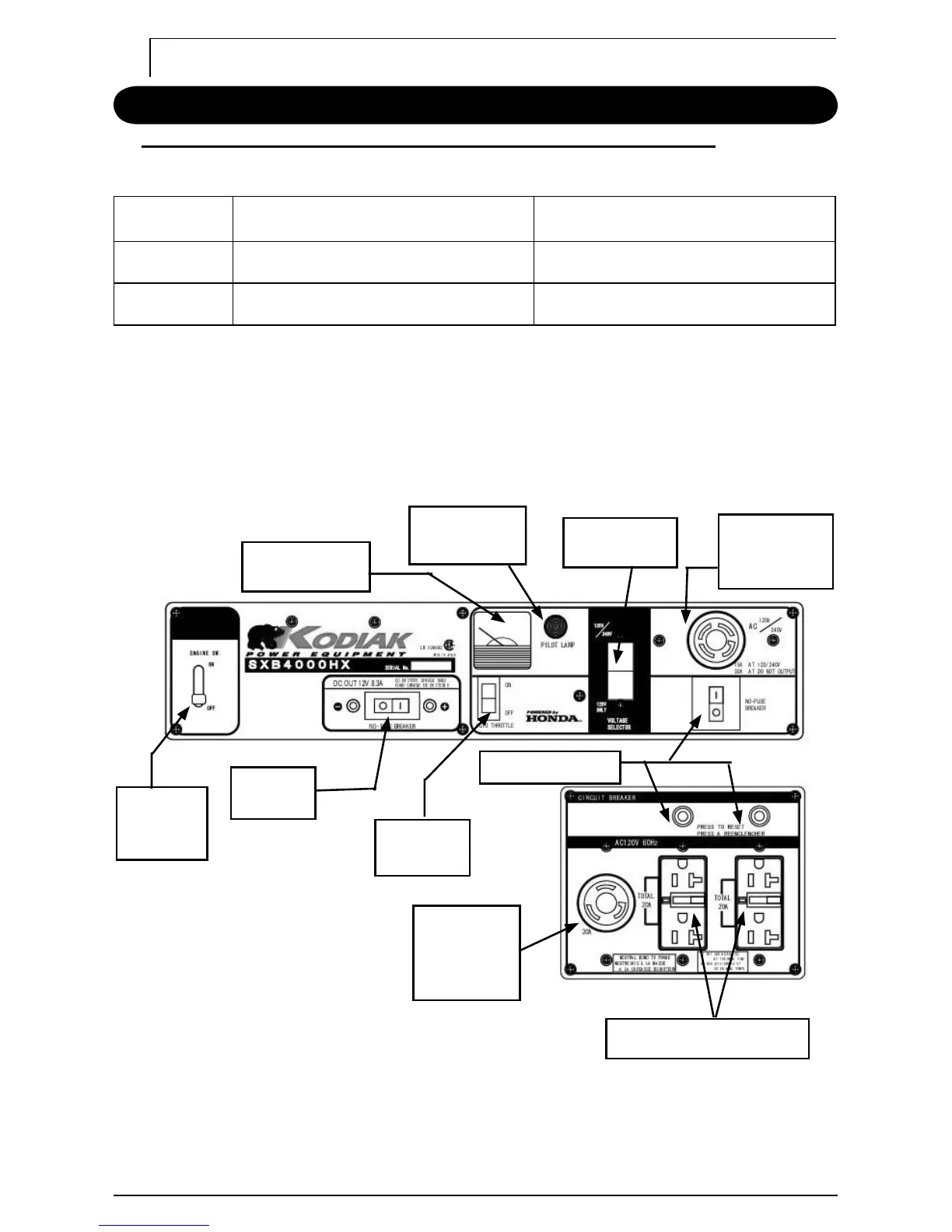

Diagram 6: SXB4000HX Control Panel
120 Volt
Twist Lock
Receptacle
NEMA L5-30R
Tee Slot GFCI Receptacle
Auto Throttle
Switch
12V DC
Output
Engine
“ON/OFF”
Switch
Output Voltage
Meter
“Power On”
Indicator Light
Output voltage
selector switch
4 wire Twist
lock receptacle
NEMA L14-30R
No Fuse Breaker
