4 TT-1701 2/17
3.1 Remove the air cleaner cover.
3.2 Remove the air cleaner element.
3.3 Remove the air cleaner base.
4. Install the governor kit.
4.1 Remove the junction box cover and mount the
electronic governor (GM90652) in the junction box
using 2 each screws (M933-06030-60, plain
washers (M125A-06-80), and nuts (M6923-06-80.
See Figure 7 (15--30REOZK) or Figure 8
(40--60REOZK).
4.2 Connect governor harness GM90770 to terminal
strip TB12 in the junction box using Figure 9. Do
not plug the governor harness connector to the
electronic governor at this time.
GM90661-1
1. Actuator (324516)
2. Screws (M933-06030-60 qty. 2), nuts (M6923-06-80 qty. 2), and washers (M125A-06-80 qty. 2)
3. Electronic governor (GM90652)
4. Governor harness (GM90770)
1
2
3
4

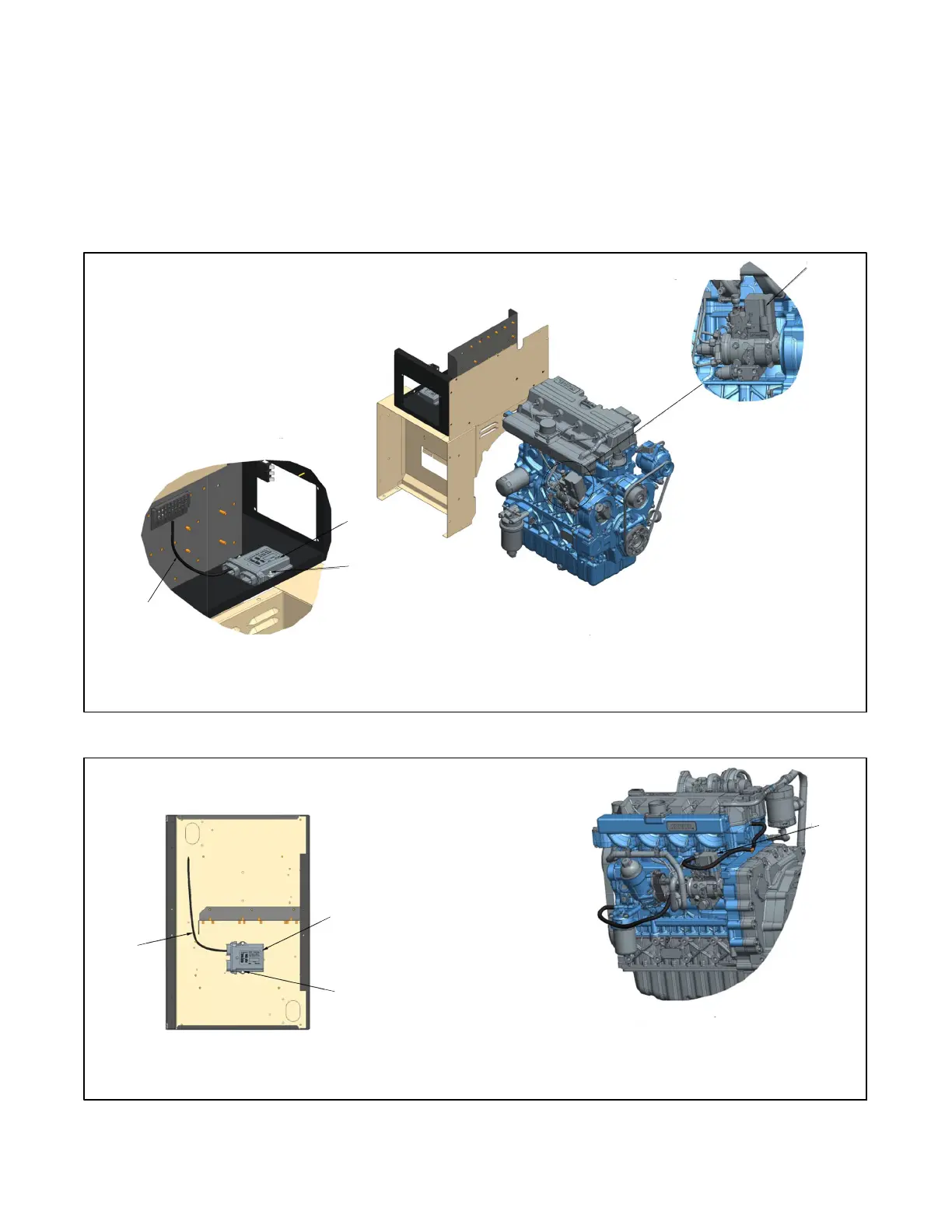

Figure 7 Installed Electronic Governor Kit. 15--30REOZK
1. Actuator (324516)
2. Electronic governor (GM90652),
3. Screws (M933-06030-60 qty. 2), nuts (M6923-06-80 qty. 2), and washers (M125A-06-80 qty. 2)
4. Governor harness (GM90770)
1
2
GM90661-2
3
4
Figure 8 Installed Electronic Governor Kit, 40--60REOZK
