2-6 Operation TP-5592 7/96
Remote Start and
Four-Meter Panel Kit
Allows starting/stopping from a location remote of the
generator set. The illuminated gauges include a DC
voltmeter, an engine oil pressure gauge, a water
temperature gauge, and a generator running time
hourmeter. Standard generator sets have a 6-pin
connector on the controller back panel for connecting
the panel kit. See Figure 2-5 for remote start and
four-meter panel features.
NOTE
Remote start meter panel requires a sender kit.
Start/Stop Switch. A rocker-type switch with ON light
starts and stops the generator set.
DC Voltmeter. Measures voltage of starting
battery(ies). Normal battery operating range is 12-14
volts.
Engine Oil Pressure Gauge. Measures engine oil
pressure. Normal engine operating range is 40-60 psi
(276-414 kPa) for 60 Hz models. 50 Hz models may
show a slightly lower pressure range.
NOTE
During the engine break-in period, the engine
sometimes produces higher oil pressure readings.
Water Temperature Gauge. Measures engine coolant
temperature. Normal engine operating range is
170-195° F (77-91° C).
Hourmeter. Records total generator set operating
hours for reference in maintenance scheduling.

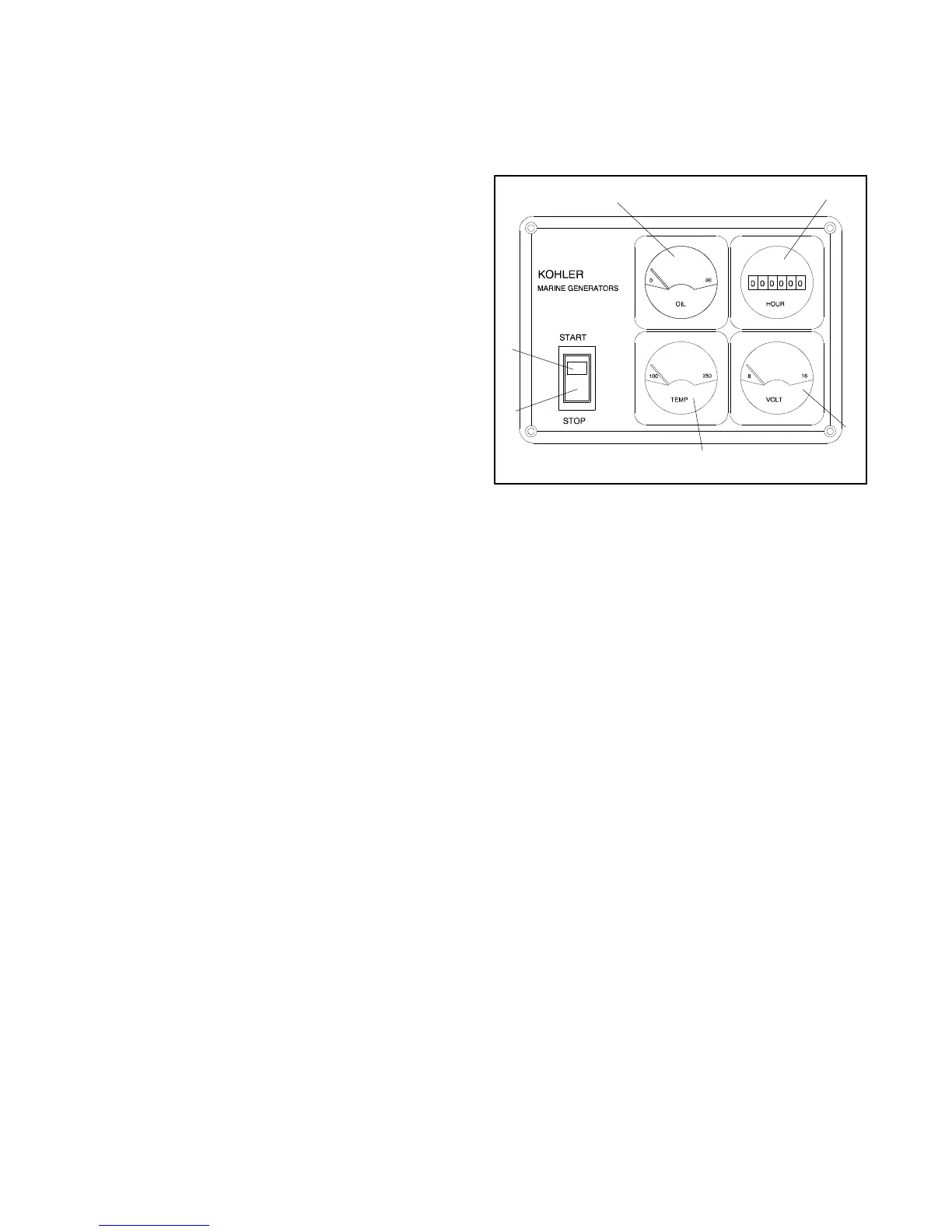

1-830
1
2
3
4
5
6
1. Engine oil pressure gauge
2. Hourmeter
3. Voltmeter
4. Water temperature gauge
5. Start/stop switch
6. ON light
Figure 2-5. Remote Start and Four-Meter Panel
Features
