Kohler 20CCOZ User Manual

TP-5592 7/965-6 Wiring Diagrams
Electro Switch
L1
L2
To Generator
Set
To Shore
Power
To Load
2-Wire Generator Sets
L1
L2
To Generator
Set
To Shore
Power
To Load
2-Wire Generator Sets
2-Wire Generator Sets
Kraus Naimler/American Solenoid
(Early Rectangular Design)
Kraus Naimler/American Solenoid
(Newer Round Design)
2 1 3 4
6 5 7 8
1 2 6 5
3 4 8 7
L1
L2
To Generator
Set
To Shore
Power
To Load
3 2 4 1
7 6 8 5
L1
L2
To Generator
Set
To Shore
Power
To Load
3-Wire Generator Sets
2 1 3 4
6 5 7 8
L0
10 9 11 12
1 2 6 5
3 4 8 7
9 10 14 13
L1
L2
To Generator
Set
To Shore
Power
To Load
3-Wire Generator Sets
L0
3 2 4 1
7 6 8 5
11 10 12 9
L1
L2
To Generator
Set
To Shore
Power
To Load
3-Wire Generator Sets
L0
TP-5399-5

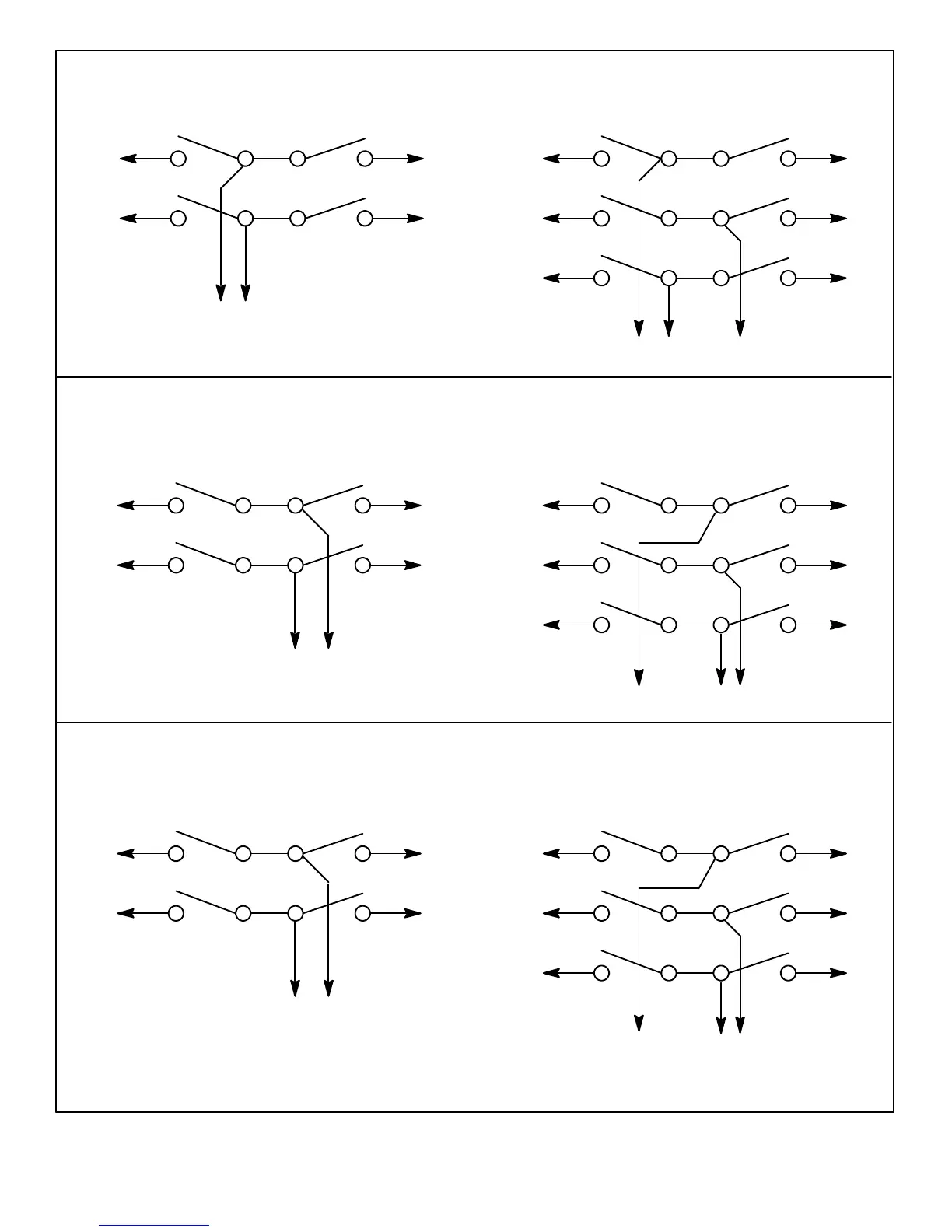

Figure 5-5. Marine Manual (Ship-to-Shore) Transfer Switch
