TP-6069 6/03 63Section 7 Installation Drawings
ADV-6603D-D
NOTE: Dimensions in [ ] are inch equivalents.

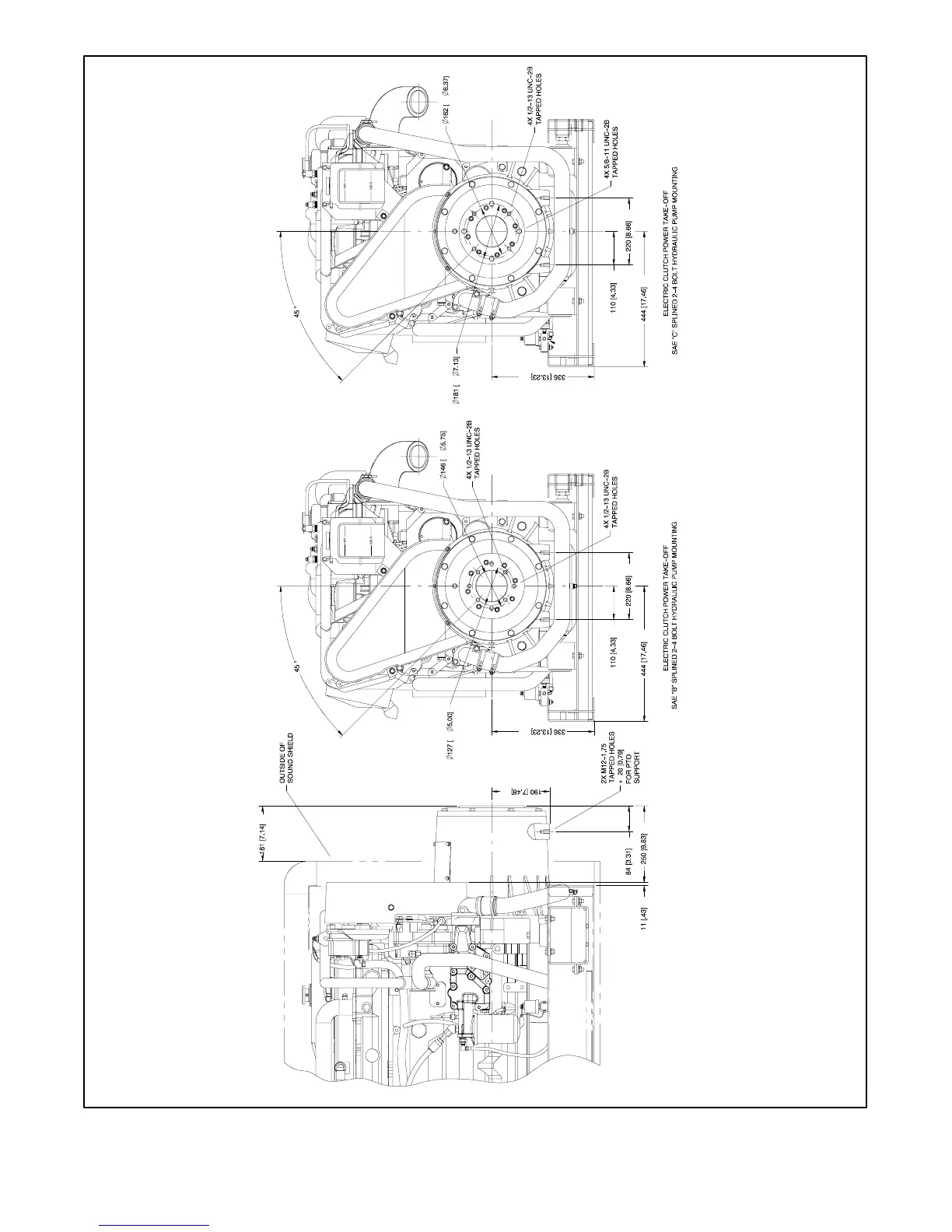

Figure 7-35 Dimension Drawing, 70/80EFOZ and 80/99EOZ with Electric Clutch
