Kohler 40EOZD

TT-1501 9/12 5
249935-K
Note: Underlined coded terminals are located at connector end of harness.

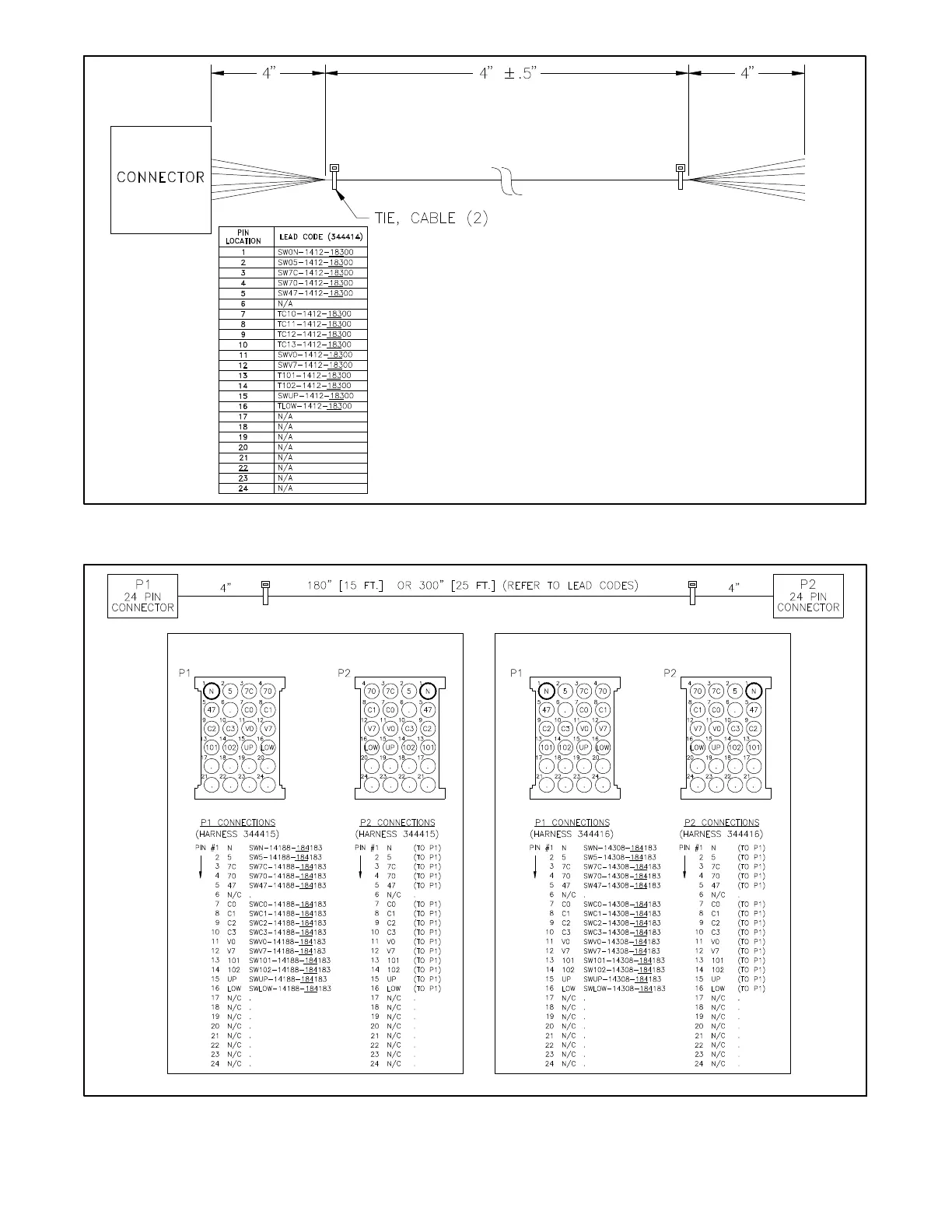

Figure 9 Optional Pigtail, 12 in. (PA-344414)
344501-P
PA-344415
4.6 m (15 ft.) Extension Harness
PA-344416
7.6 m (25 ft.) Extension Harness
Note: Underlined coded terminals are located at connector end of harness.
Figure 10 Optional Extension Harness, 15 ft. or 25 ft. (PA-344415 and PA-344416)
