Kohler BANCROFT User Manual

A
B
Fig. 10 10 Fig. 11 11
1
2

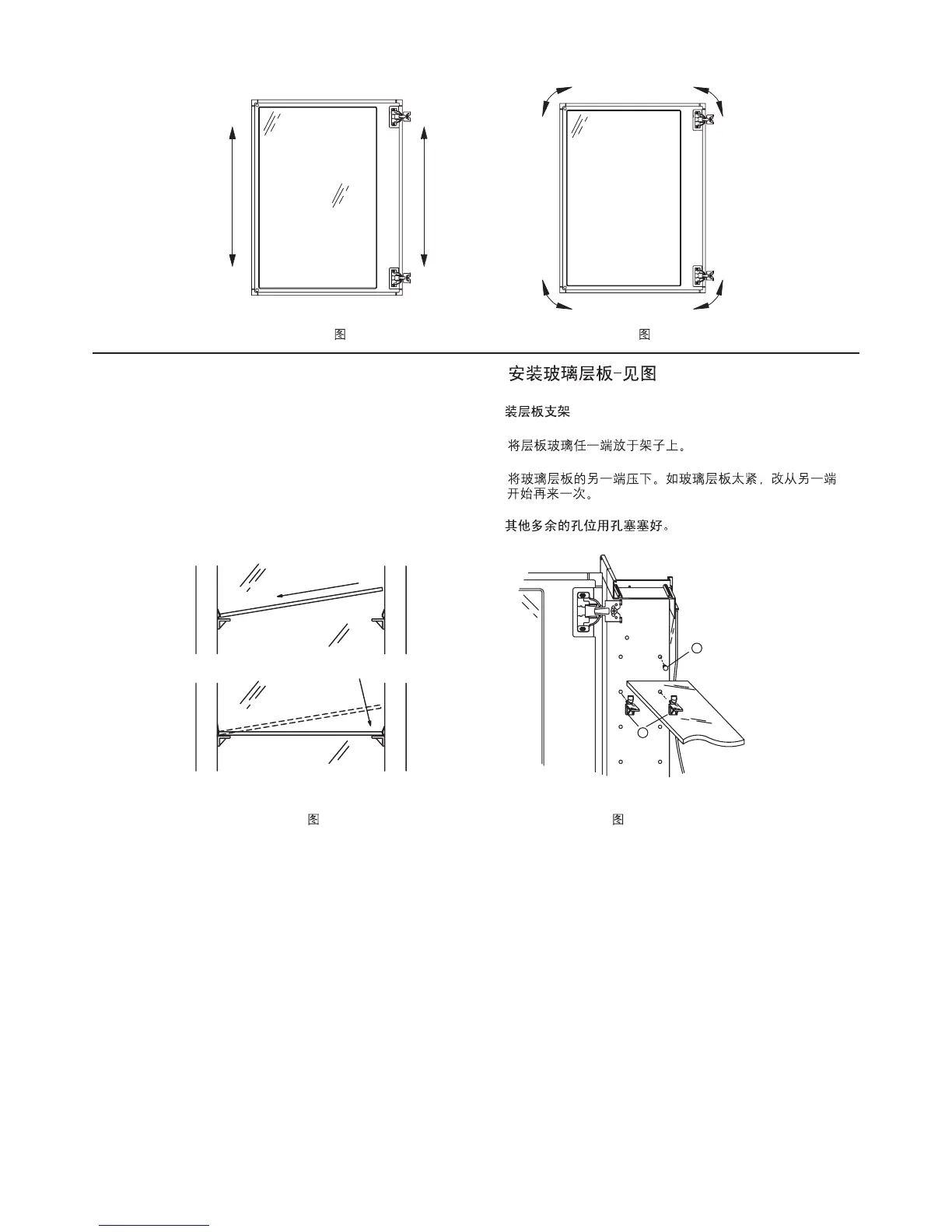

5. 135. Installing the shelves- see Fig.13
A.
1) Push one side of the shelf into the left or ritht clips
2) Snap the shelf down into the opposite side. If the shelf is
too tight, repeat the process fron the other side.
B.
Push/twist the pins into place
Fill the remaining holes with the plugs.
A.
1)
2)
B.
Fig. 12 12 Fig. 13 13
-7-
1159769-T01-A
