-3-
INSTALLATION
NOTE
For recess mount see instructions below.
For surfaces mount instructions see page4.
A surface mounted cabinet requires the optional
Mirror kit supplied with your cabinet.
·
·
·
·
·
·
()
1.
A.

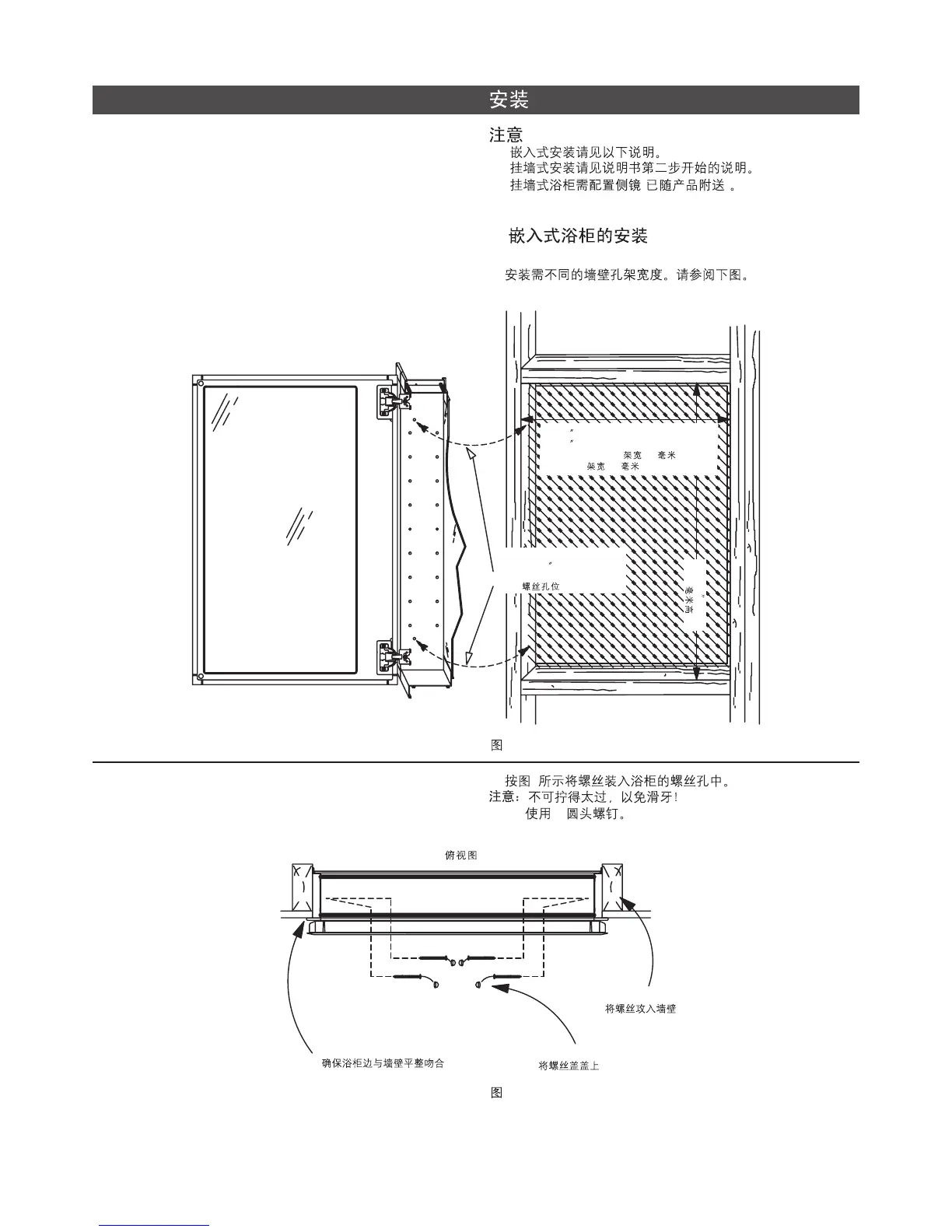

1. Recessing the cabinet into the wall
A. The vertical installation changes the width of the roughout.
Please refer to the picture below.
25 1/4 high
Fig. 1 1
19 1/4 W for K-3892T, K-3893T Models
34 1/4 W for K-15239T Models
K-3892T, K-3893T 489
K-15239T 870
Mounting location for
#8x11/2 philips
head screws
#8
642
B. 1
#8
B. Install screws through holes in cabinet as shown in Fig.1
DO NOT OVER- TIGHTEN!
Use #8 x 1 1/2 Phillips head.
Note:
Top View
Stud and wall surface
Install dome caps over screws
Cabinet flange fits flush against wall
Fig. 2 2
1159769-T01-A
