-6-
Fig.#11
11
Fig.#12
12

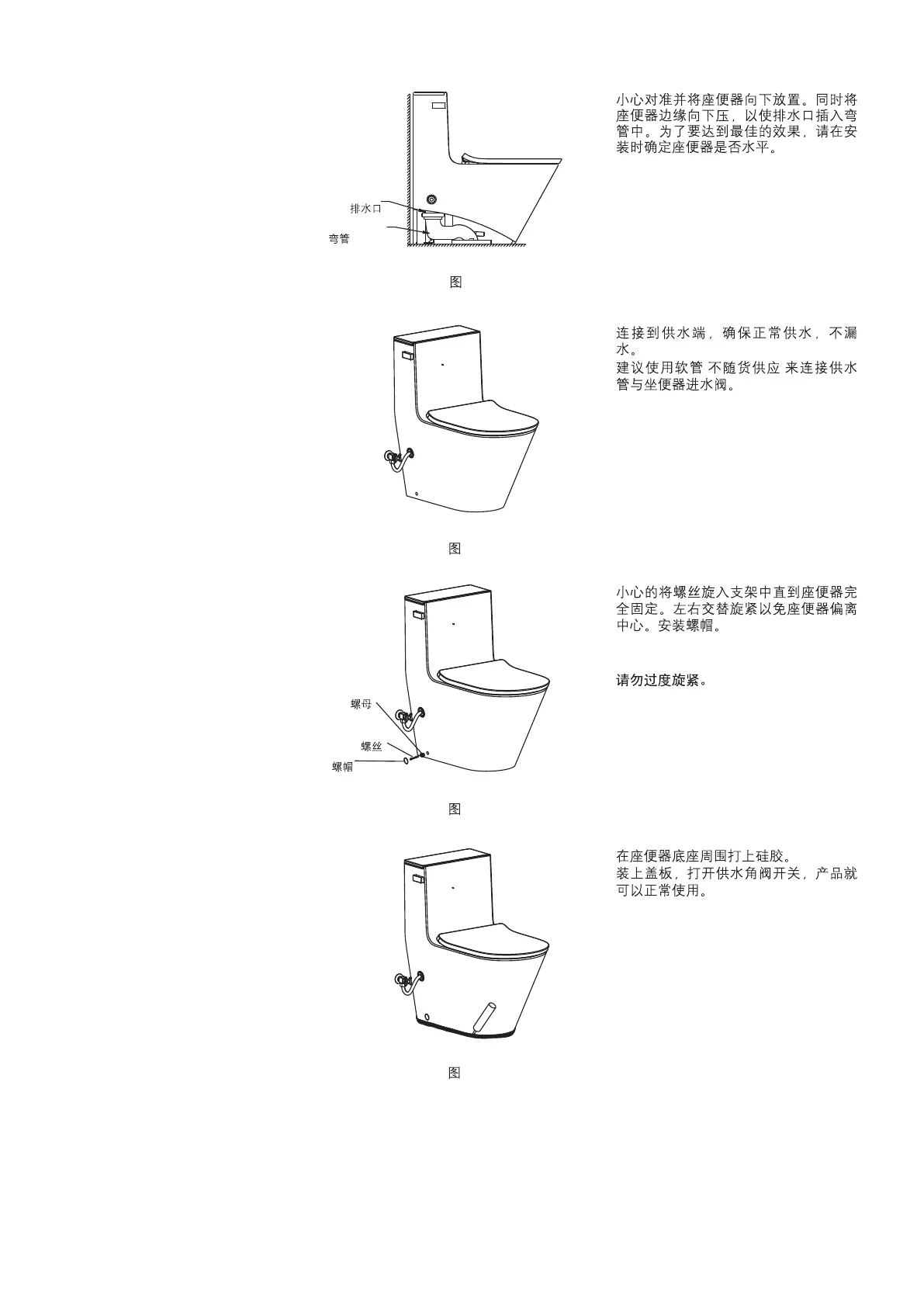

Carefully align and lower the bowl.
Apply weight to the bowl rim to let the
outlet insert into plastic trap.
Connect to water supply, ensure
nommal water supply, no any leak.
Flexible hose (not provided) are
recommended to connect the supply
line to the fill valve.
()
Outlet
Plastic Trap
Fig.#13
13
Carefully thread the screws into the
brackets, until toilet is secure.
Alternately tighten left and right sides
to prevent pulling the toilet off center.
Install cap to cover screw.
Do not overtighten.
Cap
Screw
Bushing
Fig.#14
14
Apply caulk around base.
Fixing toilet seat, and turn on the angle
valve switch, it will work.
1416649-T01-A
