-5-

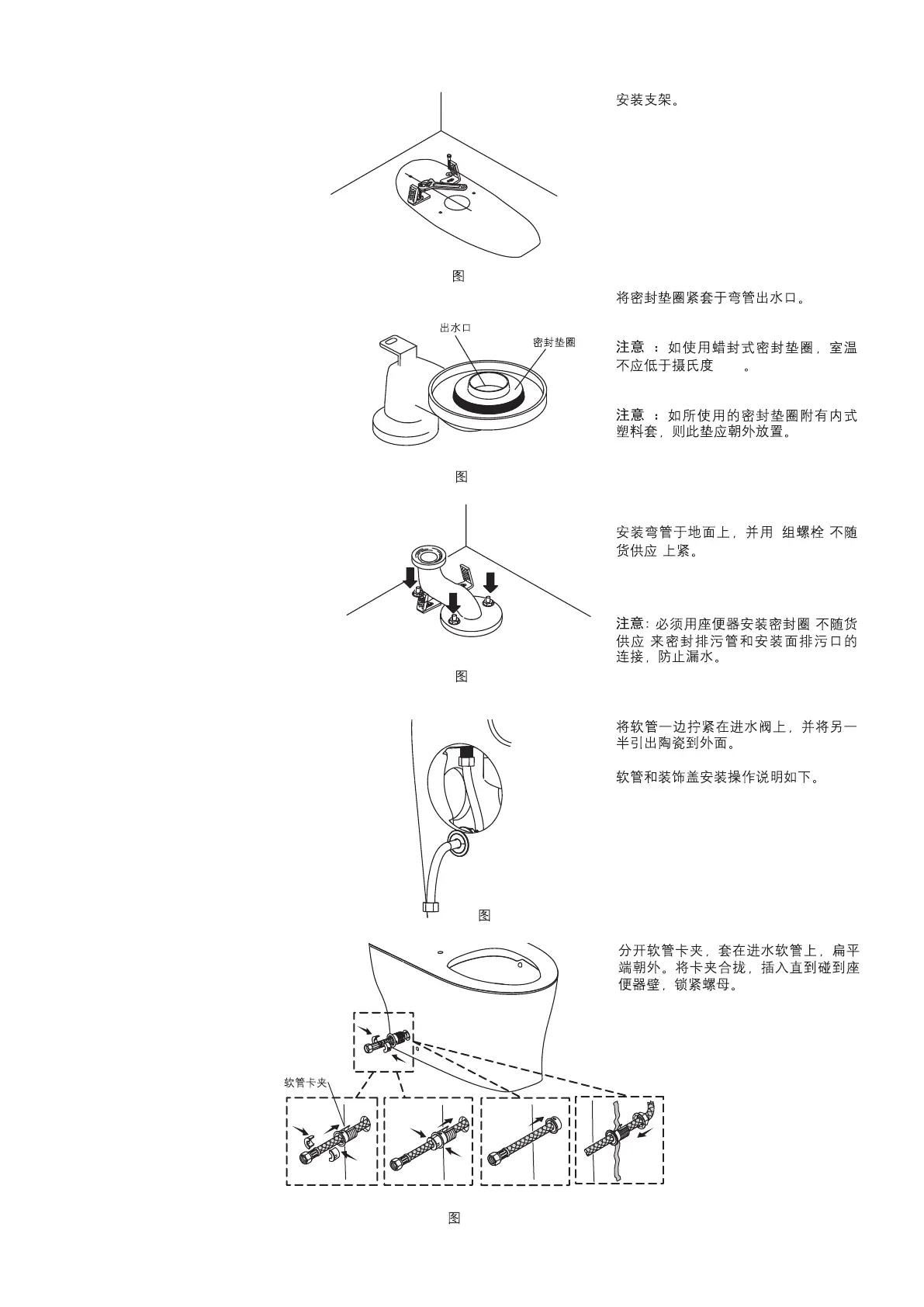

Fig.#7
7
Firmly press the toilet gasket onto the
toilet outlet of plastic trap.
Wax ring type toilet gasket
should not be installed at temperatures
less than 21 C.
If you are using a toilet
gasket with an integral plastic sleeve,
make sure the gasket is positioned
with the sleeve facing away from the
toilet.
NOTE 1:
NOTE 2:
o
1
21
2
o
C
Install brackets.
Plastic Trap Outlet
Toilet Gasket
Fig.#8
8
Install plastic to ground and mounted
with 3 set of bolts firmly.(not supplied)
3(
)
NOTE: Must use the toilet installation
gasket ring (not supplied) to seal the
area where the waste pipe contacts
the construction section to avoid
leakage.
(
)
Fig.#6
6
Fig.#9
9
One side of the hose is screwed on the
inlet valve, and pull the other side out
of the ceramic.
Hose and inlet cover fixing show as
below.
Take hose guide apart and slide onto
the supply hose, with the flared end
last. Slide the two inserts into the
flared end of the hose guide. Insert
into toilet wall and tighten nut.
Fig.#10
10
Hose Guide
1416649-T01-A
