Kohler CH680

Governor System
5124 690 06 Rev. P KohlerEngines.com

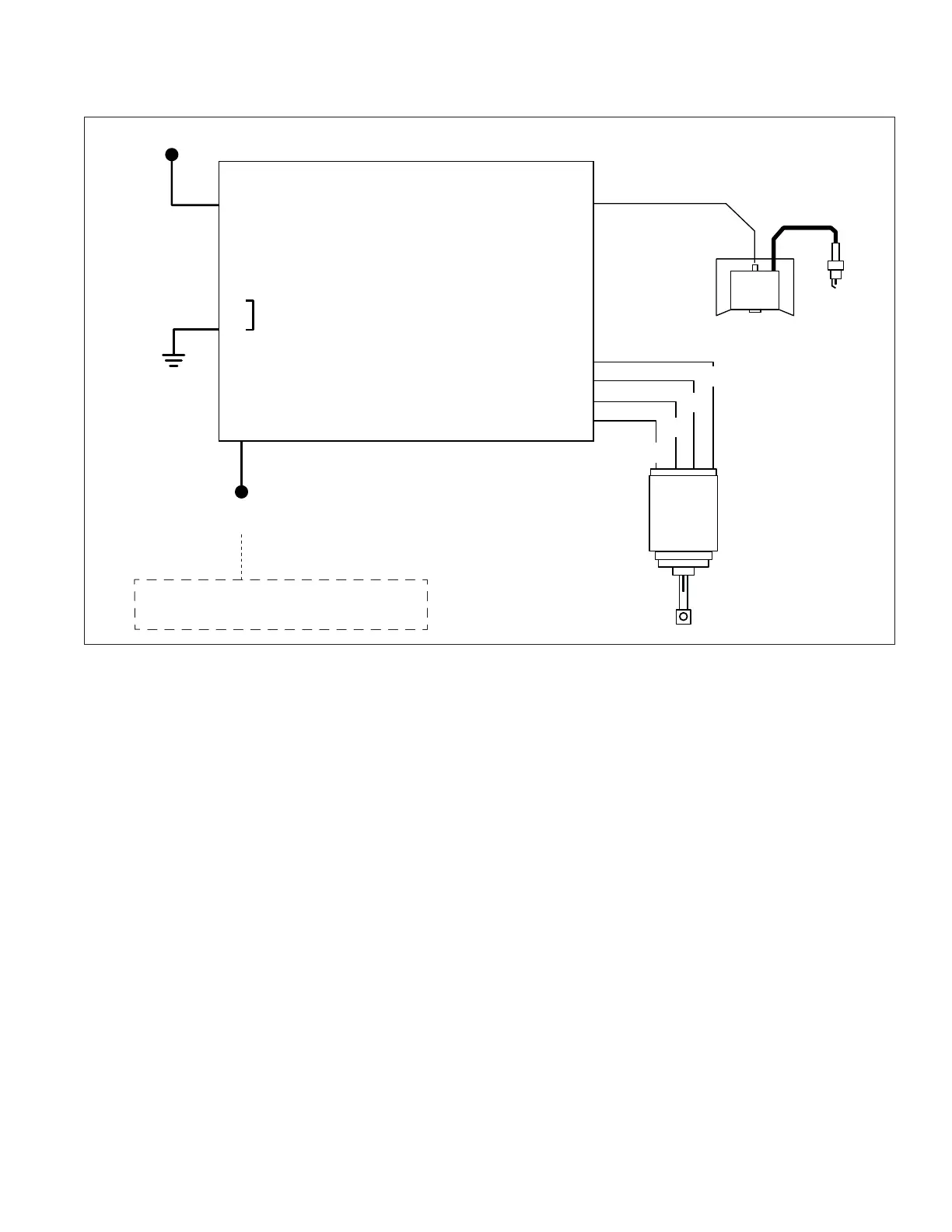

THIRD DESIGN GCU Basic Electrical Diagram of Electronic Governor System
B+
10
8
12
13
14
1
2
6
7
1B
1A
2A
2B
Power
Device
Ground
Kill Tab (Speed Signal)
Green LED Light
Yellow LED Light
Ignition Module
Application Supplied
Speed Control Input
Operation Input Voltage:
0-1 Volts at Idle/9+ Volts at High Speed.
DLA Driver
Controls
DLA
Speed Signal
GCU
