209-1023 CLC Cabinets
4

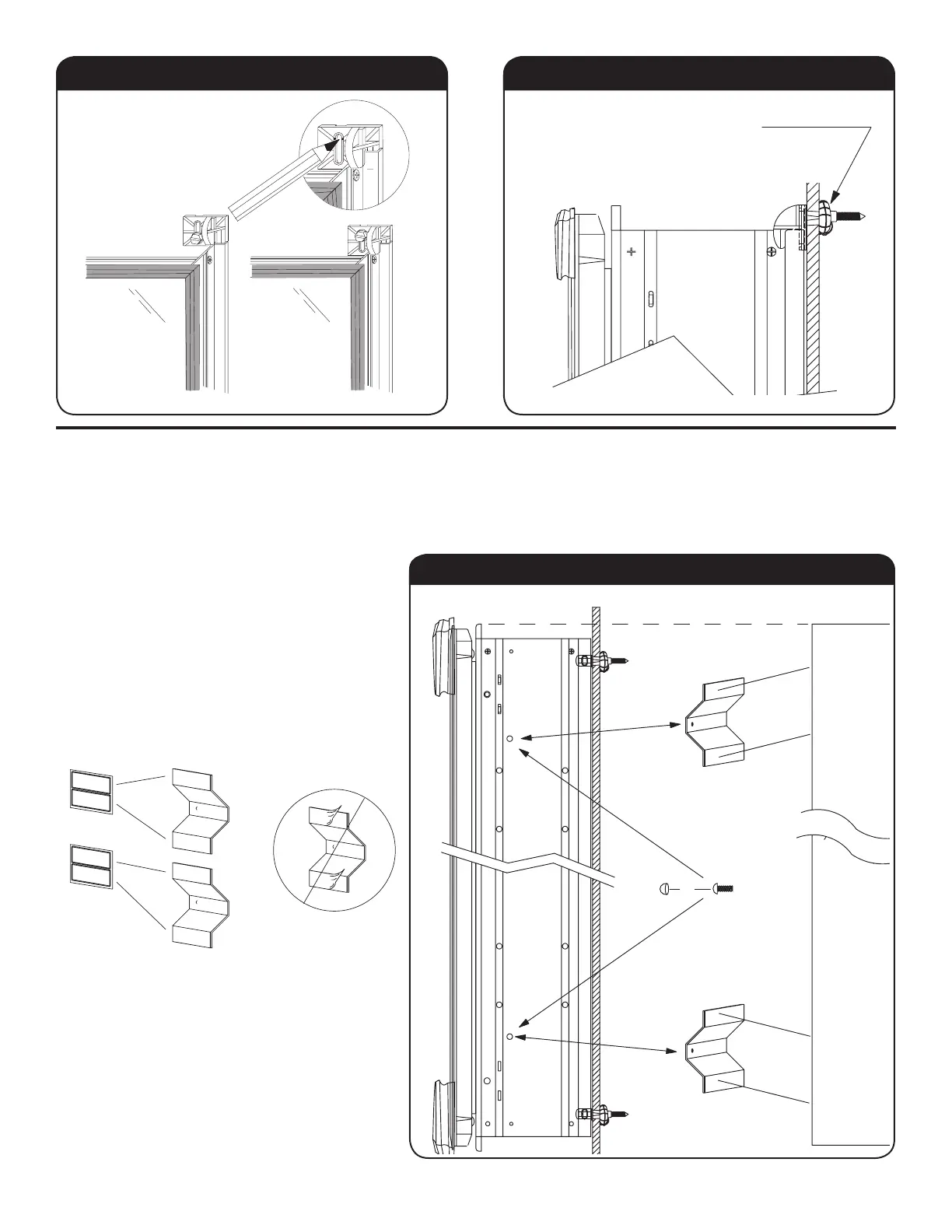

3. Attaching Side Kits to a Surface Mounted Cabinet
Fig. 4B & 4C
4B
4C
Fig. 5
Once Screw is bottomed out on
mount clip, turn screw an additional
5 to 7 turns to fully expand the anchor.
Side view at top of cabinet
1. Apply foam tape to Side kit bracket
A. Peel tape from sheet, leave liner on.
B. Apply as shown to side kit brackets,
be sure they are clean and dry.
C. DO NOT PEEL RELEASE LINER
UNTIL YOU HAVE TEST FIT THE
SIDE KITS ON THE CABINET!
2. Attach the side kit brackets to the
cabinet as shown in Fig. 6
3. Test t the side kits, then clean the
back of the side kits with rubbing alcohol.
4. Peel the release tape from the
brackets and apply the side kits, push
rmly to set.
5. Cover the screw heads with the screw caps.
Align top of side kit with top of flange
Side kit bracket
(Fits tight under the
flange of cabinet)
#8 x 3/8" screws
self thread into
Side Kit brackets
Side Kit brackets
2 pieces
26" high
Fig. 6
To Next Page
