10.23
Section 10
Reassembly
10
Valley Baffl e

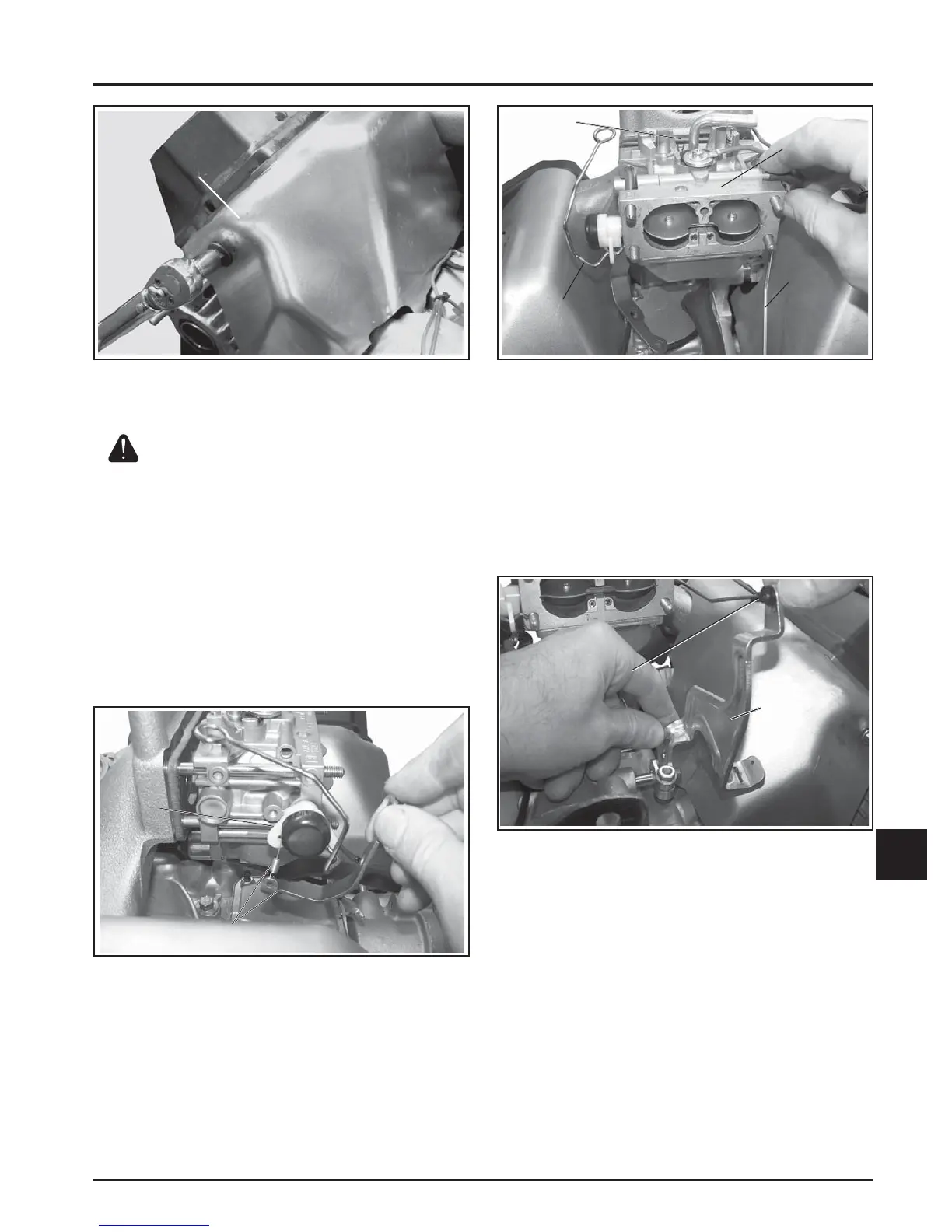

Figure 10-90. Installing Valley Baffl es.
Install Carburetor
WARNING: Explosive Fuel!
Gasoline may be present in the carburetor and fuel system.
Gasoline is extremely fl ammable and its vapors can explode
if ignited. Keep sparks and other sources of ignition away
from the engine.
1. Install a new carburetor gasket onto the intake
manifold with the tab up. Make sure all holes
align and are open.
2. A ach the choke return spring and bracket to the
front hole in the choke lever on carburetor. See
Figure 10-91.
Choke Return Spring and Bracket
Choke Return Spring and Bracket
Choke
Lever
Figure 10-91. Choke Return Spring and Bracket
Details.
3. Connect the thro le and choke linkages to the
carburetor if they were previously disconnected.
Install the carburetor with the linkages a ached
as an assembly. See Figure 10-92.
Gasket
(Tab Up)
Throttle
Linkage
Choke
Linkage
Carburetor
Figure 10-92. Installing Carburetor with Linkages.
4. Connect the fuel line to the carburetor inlet and
secure with a clamp.
Install Governor Lever
1. Install the governor lever onto the governor sha
and connect the thro le linkage with the black
clip. Do not tighten the governor lever at this
time. See Figure 10-93.
Governor
Lever
Throttle Linkage
and Black Clip
Figure 10-93. Installing Governor Lever.
