Kohler Comand Pro CH1000

10.28
Section 10
Reassembly
Install Muffl er
1. Install new exhaust gaskets onto the exhaust
studs.
2. Install the port liners (if equipped). A ach the
muffl er and secure with the four hex fl ange nuts
onto the exhaust studs. See Figure 10-110. Torque
the hex fl ange nuts to 24.4 N·m (216 in. lb.).
Flange Nuts (4)

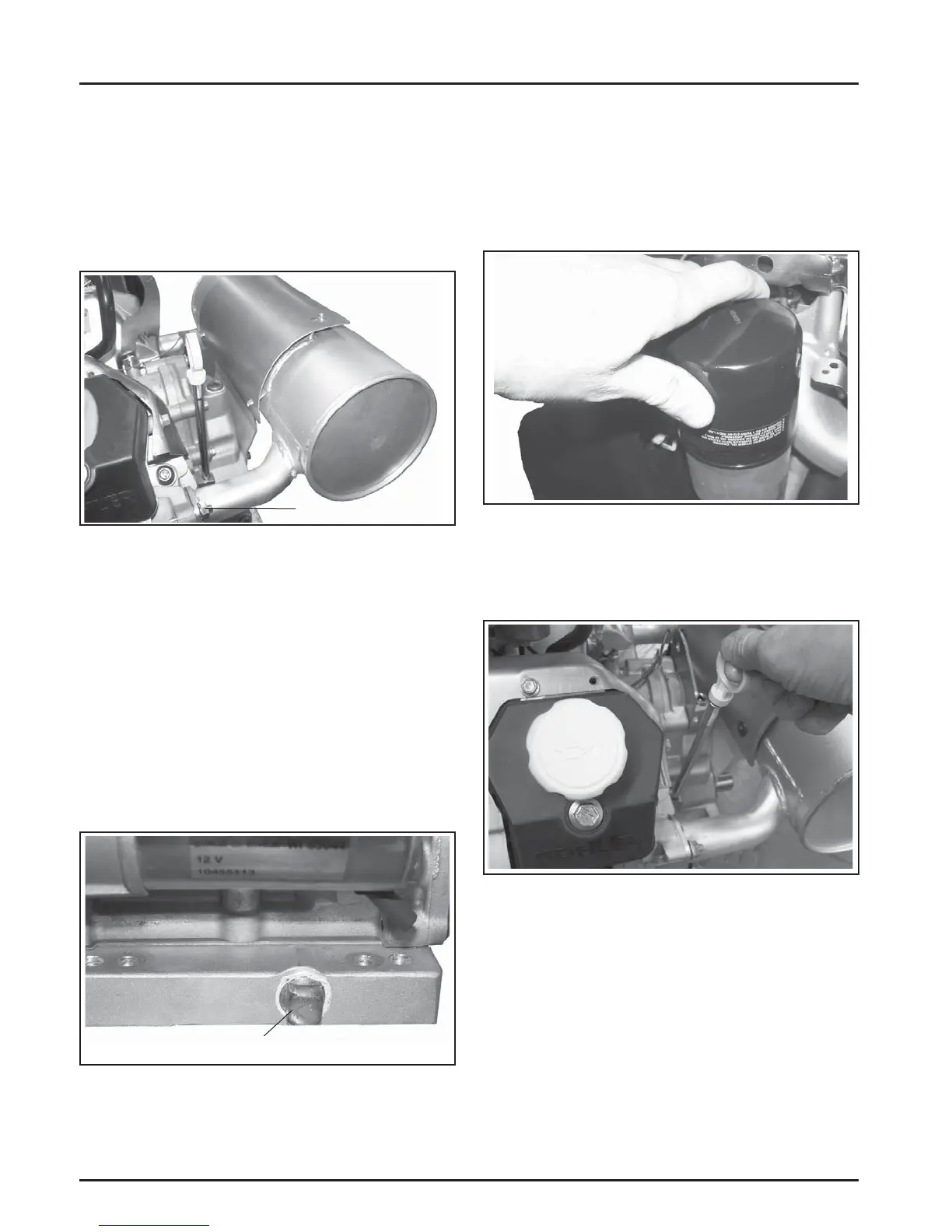

Figure 10-110. Installed Muffl er.
3. Install any a aching hardware and brackets.
Torque M6 screws to 9.9 N·m (88 in. lb.), and M8
screws to 24.4 N·m (216 in. lb.).
4. Install spark arrestor (if used).
Install Oil Filter and Add Oil to Crankcase
1. Install the oil drain plugs. See Figure 10-111.
Torque the plugs to 21.4 N·m (16  . lb.).
NOTE: Make sure that both oil drain plugs
are installed and torqued to the above
specifi cations to prevent oil leakage.
Oil Drain Plug Location (Starter Side Shown)
Figure 10-111. Reinstall Oil Drain Plugs.
2. Install a new oil fi lter following the instructions
in Section 6.
3. Apply a thin fi lm of clean engine oil to the rubber
gasket on the oil fi lter and thread the fi lter onto
the adapter nipple. See Figure 10-112.
4. Install the new oil fi lter to the fi lter adapter or oil
cooler. Refer to instructions on the oil fi lter for
proper installation. See Figure 10-112.
Figure 10-112. Installing Oil Filter.
5. Add oil to bring the level up to the F mark.
Reinstall the dipstick and oil fi ll cap. See Figure
10-113.
Figure 10-113. Reinstall the Dipstick.
Connect Spark Plug Leads
1. Connect the leads to the spark plugs. See Figure
10-114.
