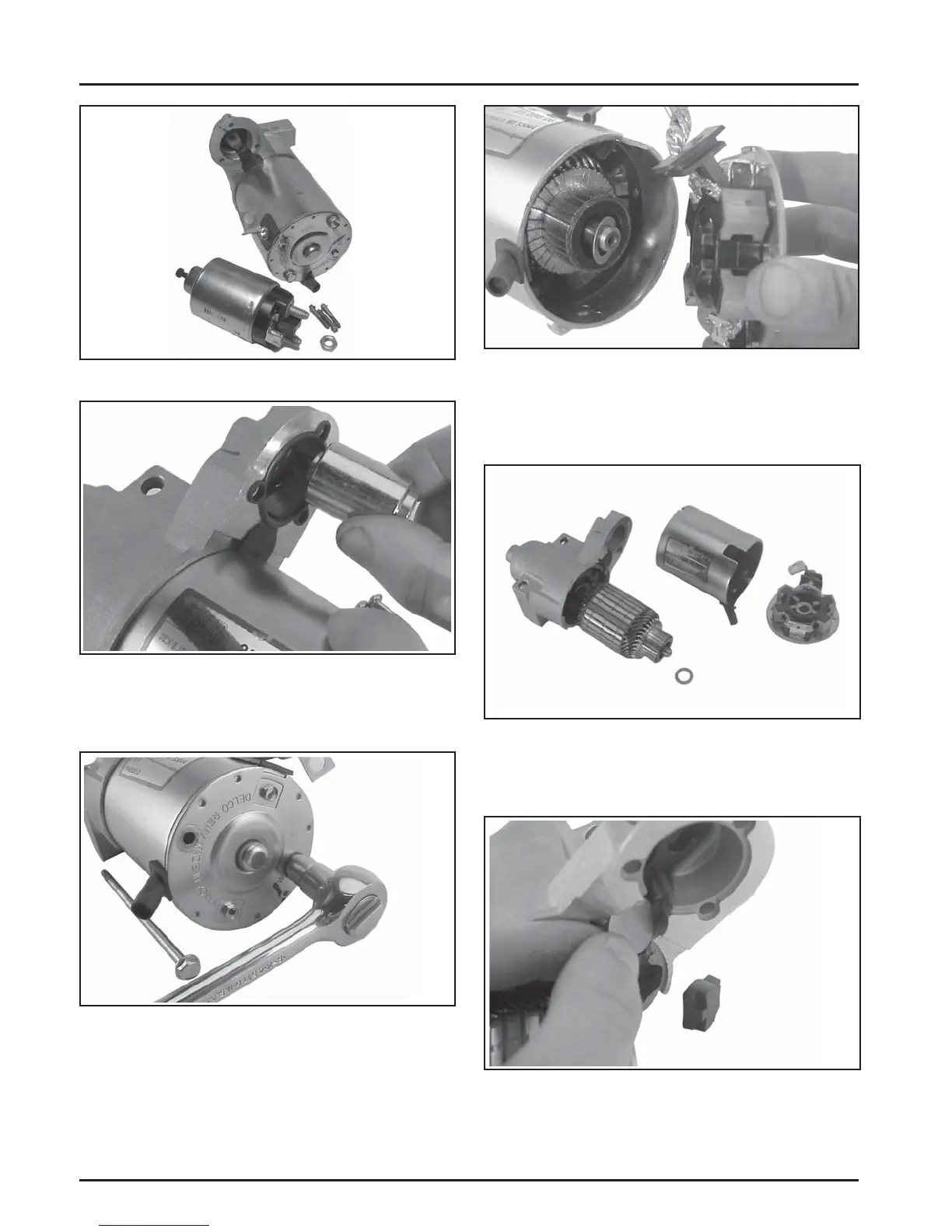

Figure 7-25. Solenoid Removed from Starter.
Figure 7-26. Removing Plunger.
4. Remove the two thru (larger) bolts. See Figure
7-27.
Figure 7-27. Removing Thru Bolts.
5. Remove the commutator end plate assembly,
containing the brush holder, brushes, springs,
and locking caps. Remove the thrust washer from
inside the commutator end. See Figure 7-28.
Figure 7-28. Removing Commutator End Plate
Assembly.
6. Remove the frame from the armature and drive
end cap. See Figure 7-29.
Figure 7-29. Starter Frame Removed.
7. Remove the drive lever pivot bushing and
backing plate from the end cap. See Figure 7-30.
Figure 7-30. Removing Backing Plate and Pivot
Bushing.
