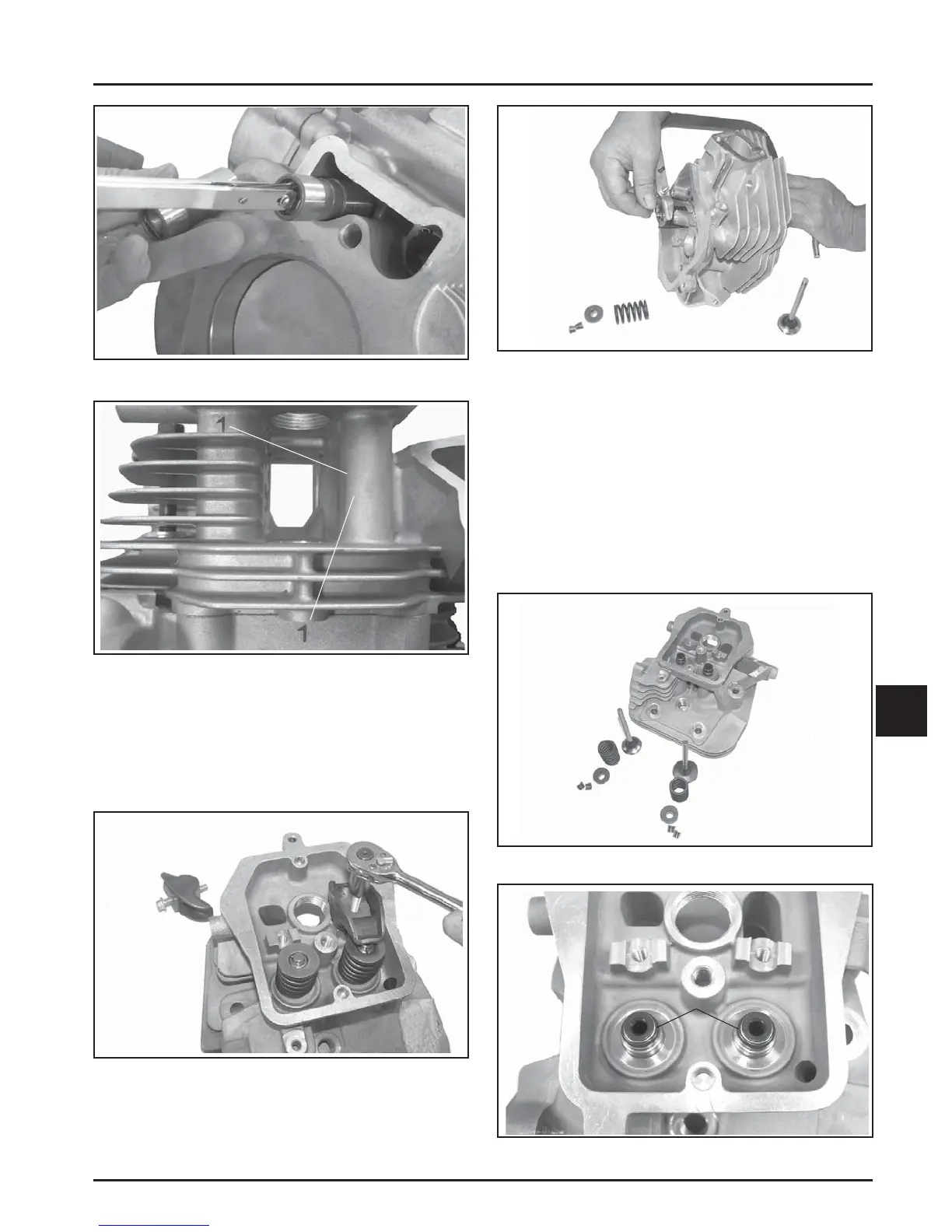

Figure 8-45. Removing Valves with Valve Spring
Compressor.
3. Once the valve spring is compressed, remove the
following items. See Figures 8-46 and 8-47.
• Valve spring keepers
• Valve spring retainers
• Valve springs
• Valve spring caps
• Intake and exhaust valves (mark position)
• Valve stem seals
Figure 8-46. Valve Train Components.
Valve Stem Seals
Valve Stem Seals
Figure 8-47. Valve Stem Seals.
Figure 8-42. Removing Hydraulic Lifters.
Match
Numbers
Figure 8-43. Match Numbers on Cylinder Barrel
and Heads.
Disassemble Cylinder Heads
1. Remove the two hex fl ange screws, rocker arm
pivots, and rocker arms from the cylinder head.
See Figure 8-44.
Figure 8-44. Removing Rocker Arms.
2. Compress the valve springs using a valve spring
compressor. See Figure 8-45.
