Section 9
Disassembly
Remove Air Cleaner
1. Remove the knob and air cleaner cover. See
Figure 9-4.
Remove Muffler
1. Remove the four hex flange screws securing the
muffler to the upper and lower mounting
brackets. See Figures 9-2 and 9-3.
2. Remove the muffler from the mounting brackets
and exhaust inlet pipe.
3. Remove the two hex flange nuts from the exhaust
port studs and take off the exhaust inlet pipe and
gasket.

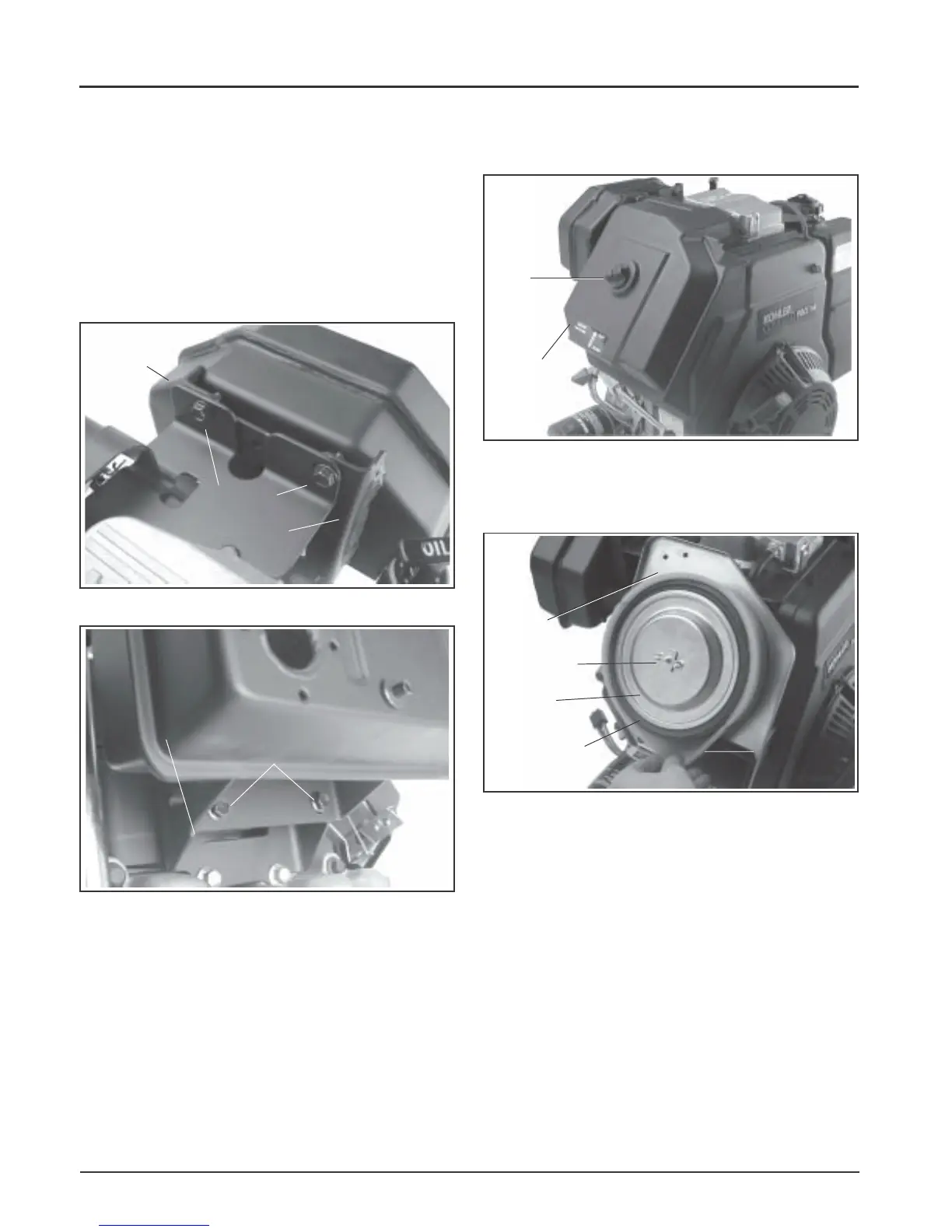

Figure 9-2. Removing Muffler.
Figure 9-3. Removing Muffler.
Figure 9-4. Removing Air Cleaner Cover.
2. Remove the wing nut, washer, element cover,
element and precleaner. See Figure 9-5.
Figure 9-5. Removing Air Cleaner Elements.
Muffler
Hex Flange
Screws
Upper
Muffler
Bracket
Lower Mounting
Bracket
Hex Flange Screws
Muffler
Knob
Air Cleaner
Cover
Air
Cleaner
Base
Wing Nut
Element
Cover
Paper
Element
Foam
Precleaner
