Remove Carburetor Adapter and Heat

Deflector

1. Remove the two socket head cap screw securing

carburetor adapter, gaskets and heat deflector to

the cylinder head. See Figure 9-27.

2. Remove the carburetor adapter, heat shield, and

gaskets from the engine. See Figure 9-27.

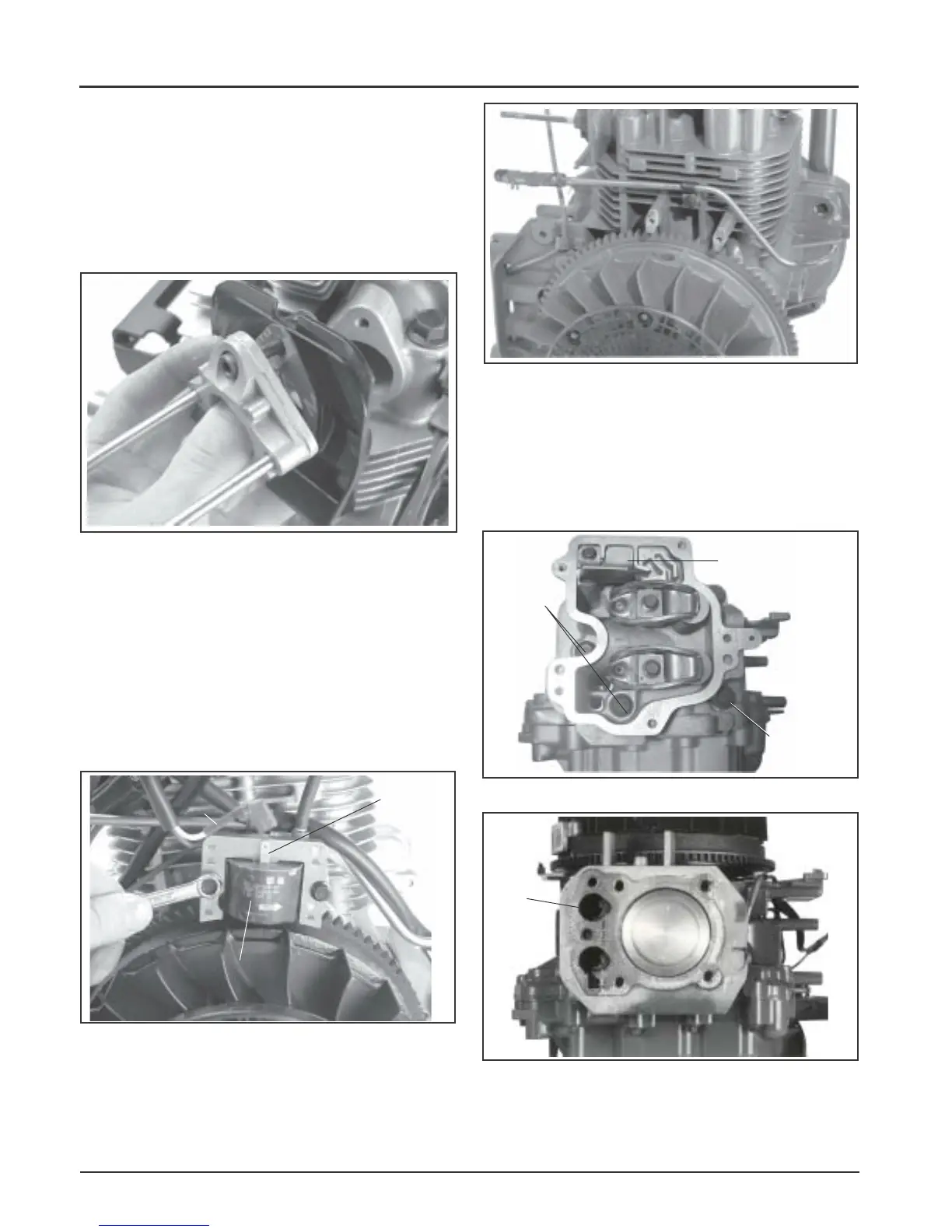

Figure 9-27. Removing Carburetor Adapter and

Heat Deflector.

Remove Ignition Module

1. Disconnect the kill lead from the ignition module

terminal. See Figure 9-28.

2. Rotate flywheel magnet away from ignition

module.

3. Remove the two hex flange screws and ignition

module.

Figure 9-29. Removing Fuel Line.

Remove Cylinder Head

1. Remove the hex flange screws, spacer (from the

screw by the exhaust port), cylinder head, push

rods, and cylinder head gasket. See Figures 9-30

and 9-31. Mark the push rods for reassembly.

Discard the screws. Do not reuse.

Figure 9-28. Removing Ignition Module.

Remove Fuel Line

1. Remove the hex flange screw, clip, and fuel line.

See Figure 9-29.

Figure 9-31. Removing Cylinder Head Gasket.

Figure 9-30. Removing Cylinder Head.

Kill

Lead

Kill

Terminal

Ignition Module

Cylinder

Head

Gasket

Hex Flange

Screws

Breather Reed

Retainer and

Breather Reed

Hex Flange

Screw and

Spacer
