Section 9
Disassembly
9
3. Remove the hex flange nuts from the mounting
studs, and take off the air cleaner mounting
bracket, spitback cup or collector plate, and
gasket as equipped. See Figure 9-6.

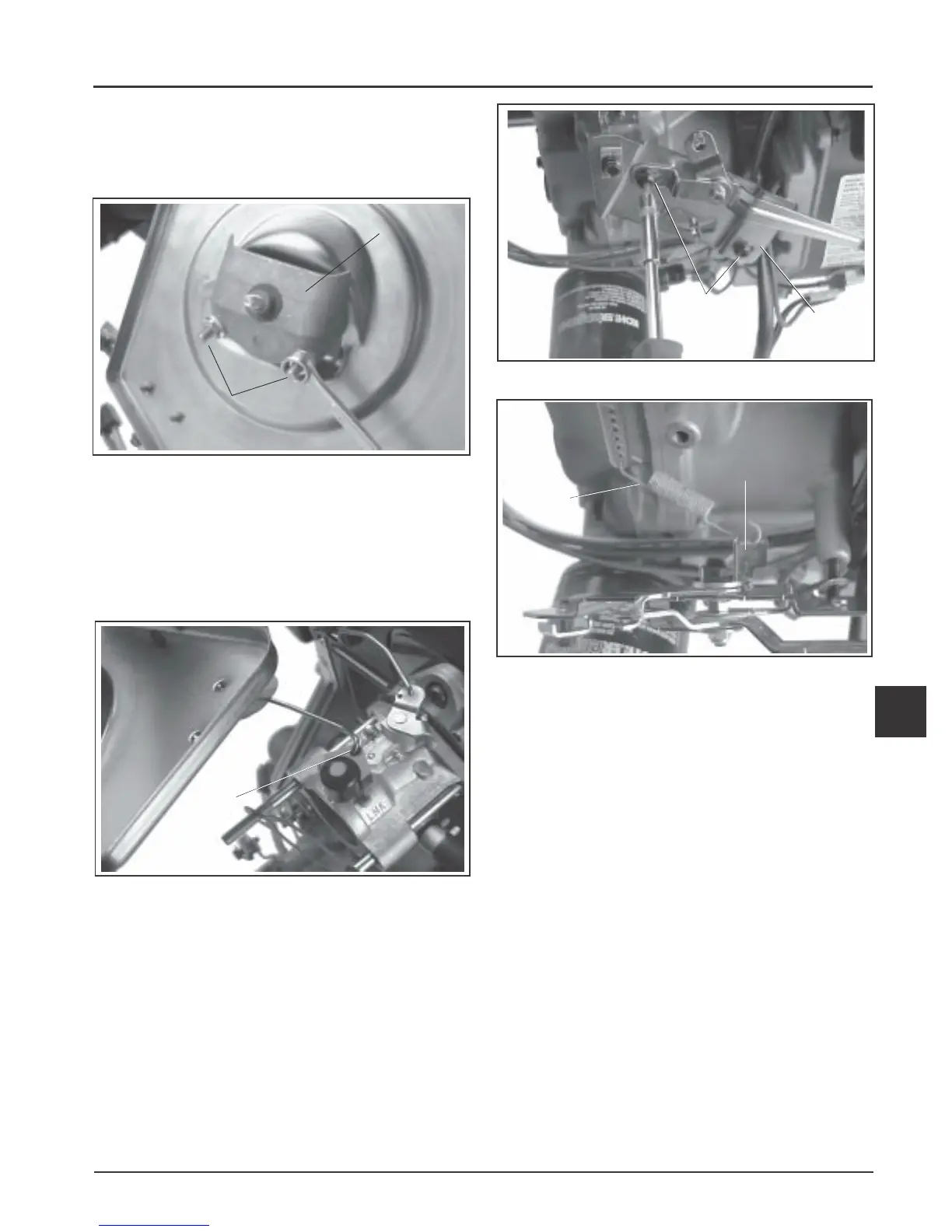

Figure 9-7. Removing Air Cleaner Base.
Remove Throttle Control Bracket
1. Remove the two mounting screws securing the
throttle control bracket and ground lead (some
models) to the crankcase. See Figure 9-8.
2. Mark the governor spring hole location and
unhook the spring from the lever of the throttle
control bracket. See Figure 9-8 and 9-9.
Figure 9-6. Removing Spitback Cup and Air
Cleaner Base.
4. Loosen the hose clamp and disconnect the
breather hose from the rocker arm cover. Remove
the air cleaner base from the studs and disconnect
the choke linkage from the carburetor choke
lever. See Figure 9-7.
Figure 9-8. Removing Throttle Control Bracket.
Figure 9-9. Removing Spring From Throttle Lever.
Air Cleaner
Base
Intake Studs
Spitback
Cup
Choke
Linkage
Air
Cleaner
Base
Mounting
Screws
Ground
Lead
Governor
Spring
Throttle
Bracket Lever
