Disassembly
Remove Carburetor and Governor Lever
WARNING: Explosive Fuel!
Gasoline may be present in the carburetor and fuel system.
Gasoline is extremely flammable, and its vapors can explode
if ignited. Keep sparks, open flames, and other sources of
ignition away from the engine.
1. Remove the fuel line from the carburetor inlet
fitting. See Figure 9-10.

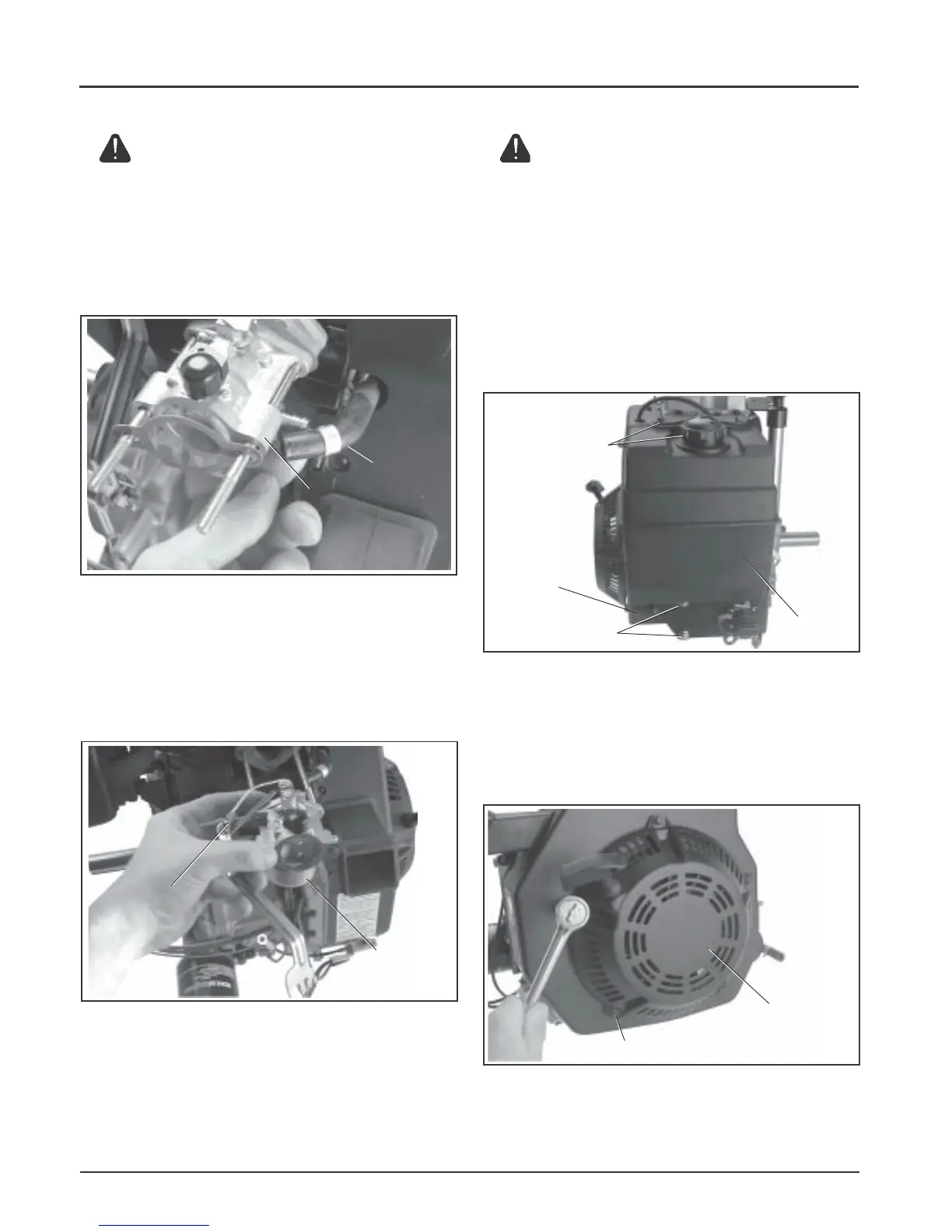

Figure 9-10. Removing Fuel Line From Carburetor.
2. Loosen the fastener securing the governor lever
to the cross shaft.
3. Remove the carburetor and governor lever, with
the linkage attached, from the engine. See Figure
9-11.
Figure 9-11. Removing Carburetor and Governor
Lever.
Remove Fuel Tank
WARNING: Explosive Fuel!
Gasoline may be present in the carburetor and fuel system.
Gasoline is extremely flammable, and its vapors can explode
if ignited. Keep sparks, open flames, and other sources of
ignition away from the engine.
1. Turn fuel shut-off valve to OFF (horizontal)
position. Disconnect fuel line from valve.
2. Remove hex flange nuts from lower bracket and
hex flange screws from upper bracket of fuel
tank. See Figure 9-12.
Figure 9-12. Removing Fuel Tank.
3. Remove the fuel tank.
Remove Retractable Starter
1. Remove the five hex flange screws and retractable
starter. See Figure 9-13.
Figure 9-13. Removing Retractable Starter.
Carburetor
Fuel Line
Carburetor
Governor Lever
and Linkage
Upper Bracket
Mounting Screws
Shut-Off Valve
Lower Bracket
Hex Flange Nuts
Retractable
Starter
Hex Flange Screw (5)
Fuel Tank
